Saturn
>>
2005
>>
ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessory Delay Module
Accessory Delay Module

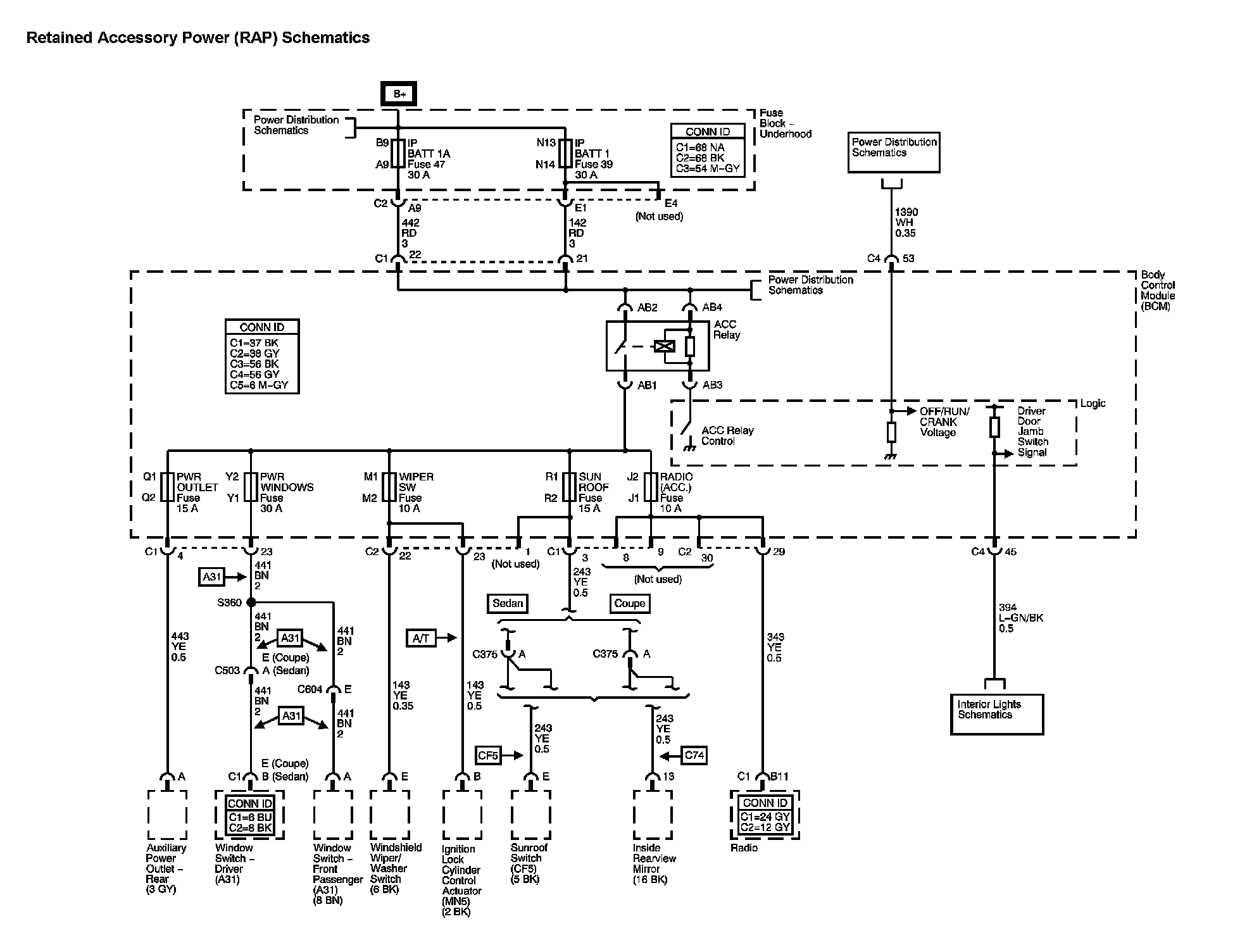

Retained Accessory Power (RAP) Diagram:
