Transmission Output Shaft Speed (OSS) Sensor Connector.....
Transmission Output Shaft Speed (OSS) Sensor Connector.....

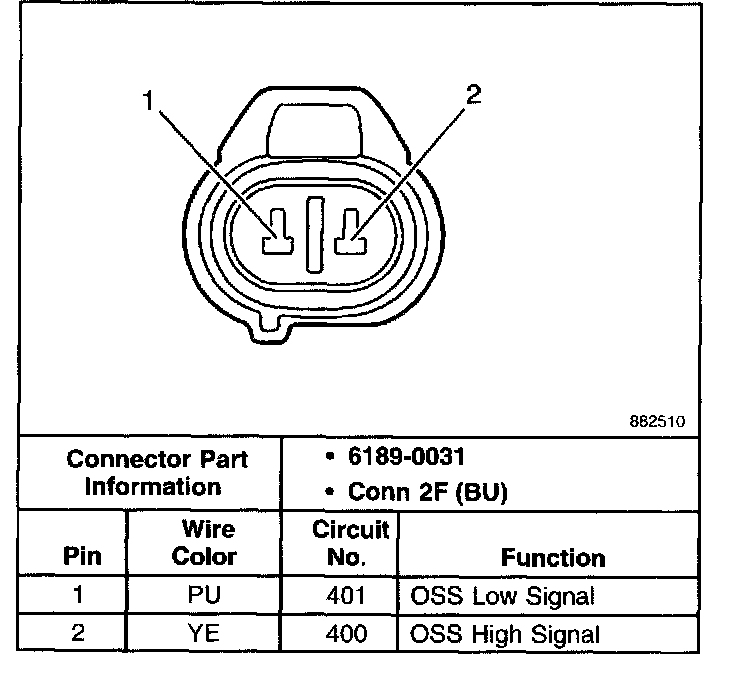

Transmission Output Shaft Speed (OSS) Sensor Connector, Wiring Harness Side
