Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2004
>>
ION L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

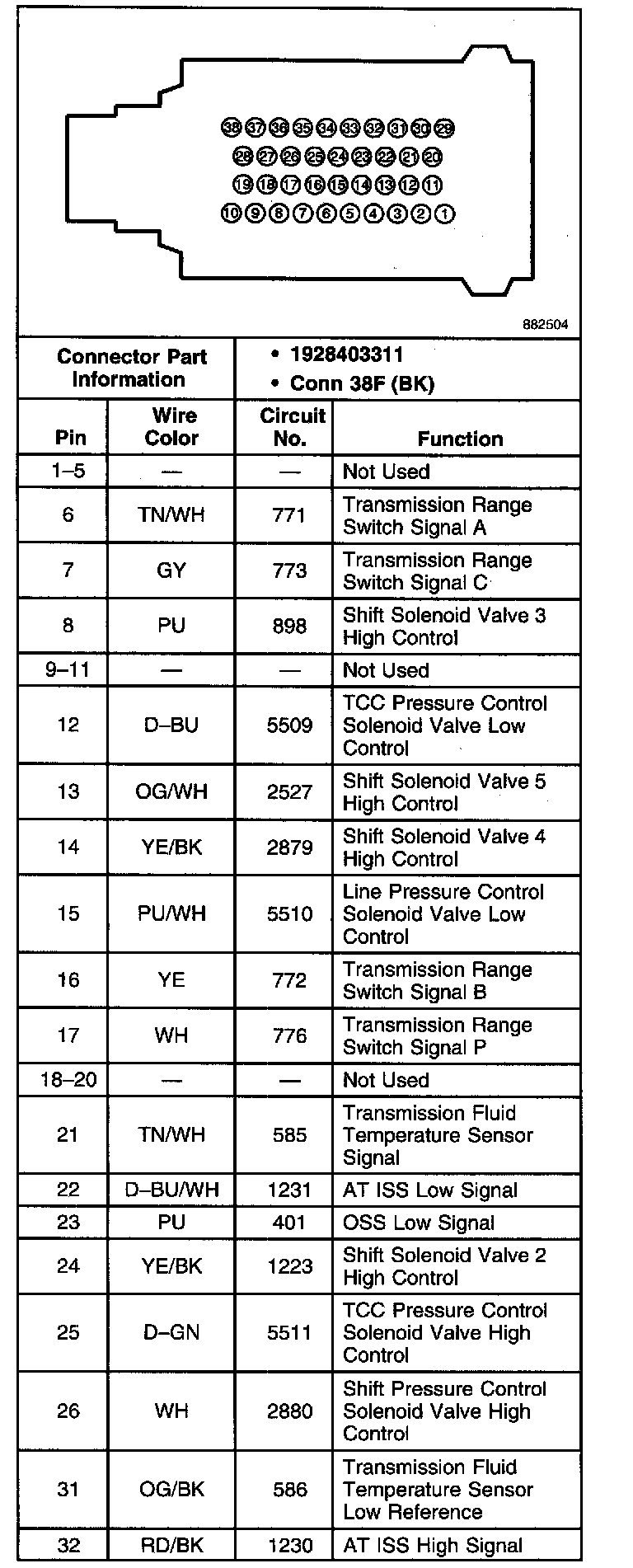

Transmission Control Module C2 Connector

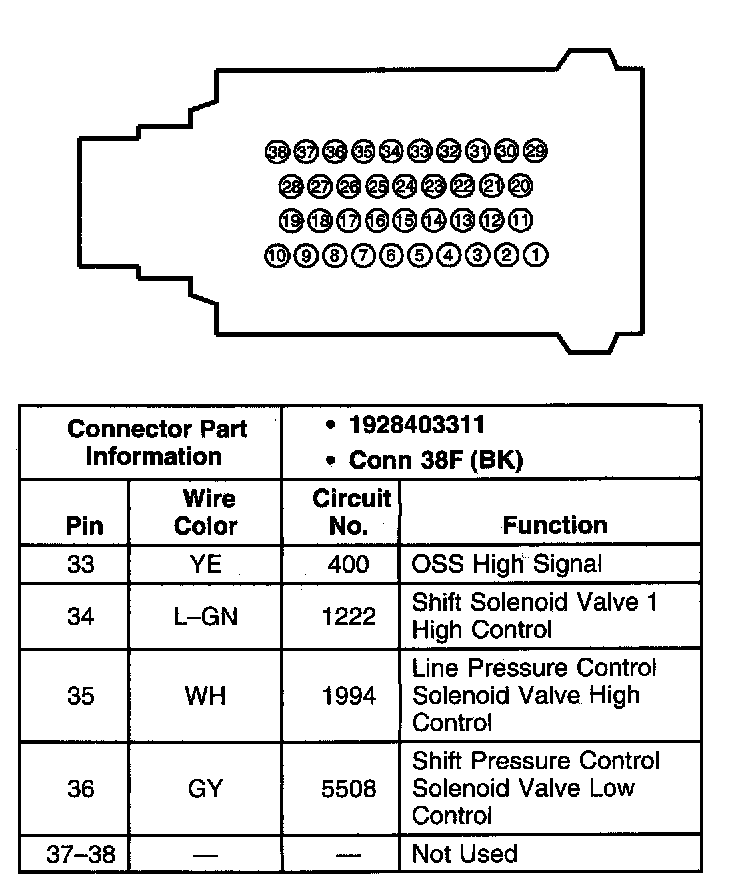

Transmission Control Module C2 Connector
Transmission Control Module C2 Connector
