Continuously Variable Transmission/Transaxle, CVT
>>
Transmission Inline Harness Connector End View
Transmission Inline Harness Connector End View
Automatic Transmission Inline Harness Connector End View

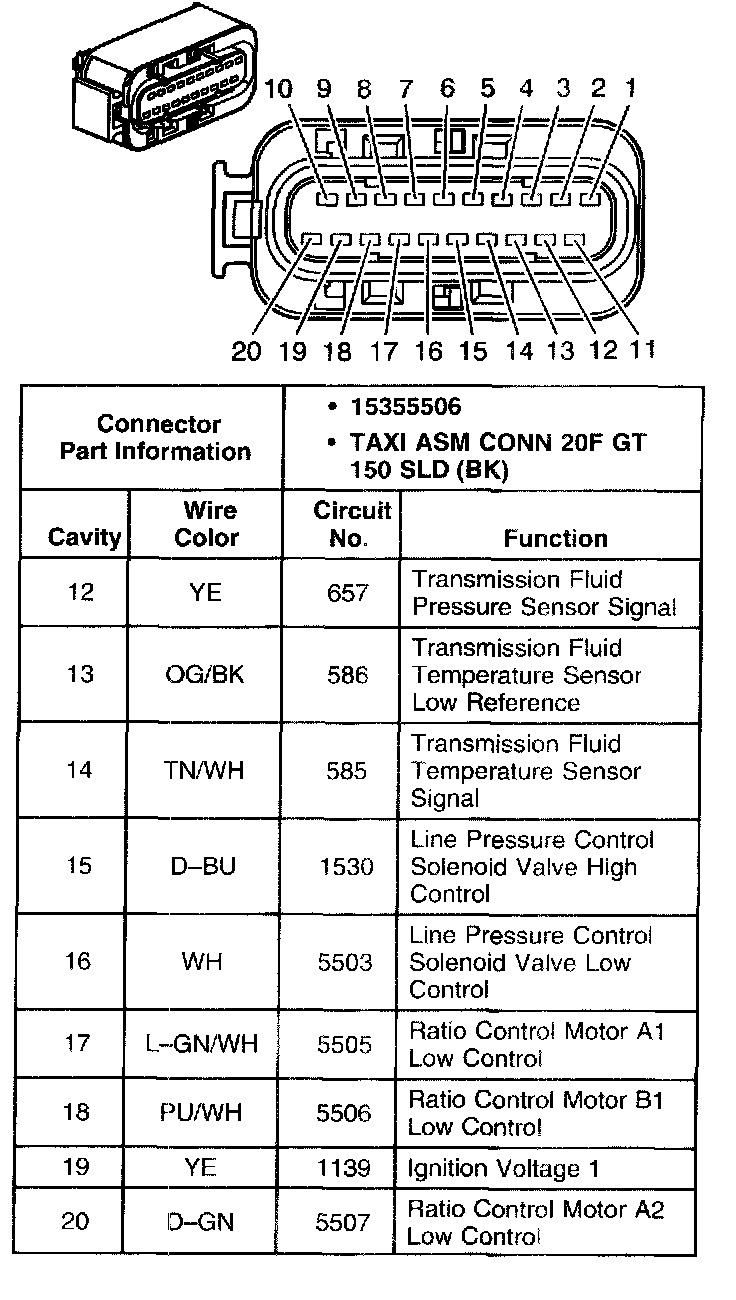

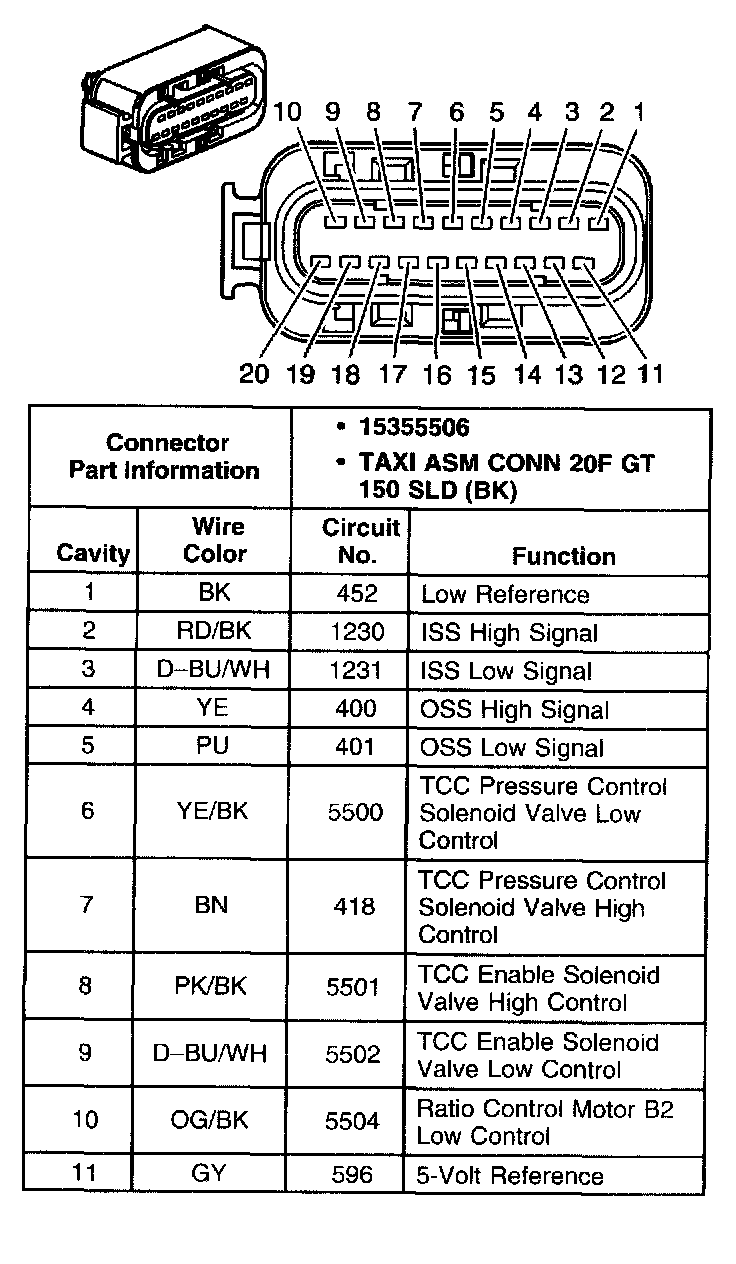

AT Inline Harness 20-way Connector, Engine Side
