Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID >> Fuse/Relay Block - Underhood Label

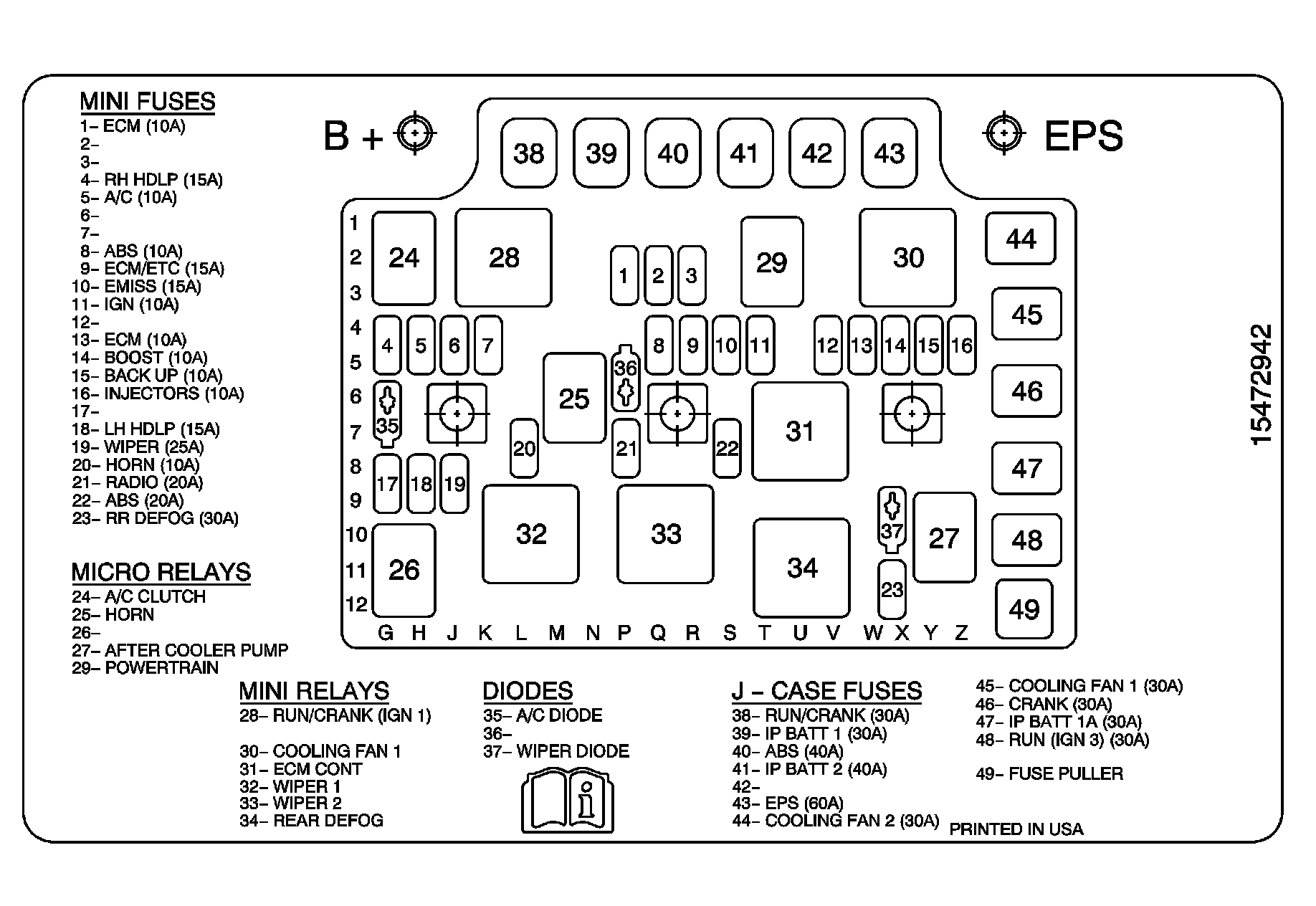

Fuse/Relay Block - Underhood Label

Location View:
