Home >> Saturn >> 2003 >> LW200 L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Passenger Inflator Module - Inline

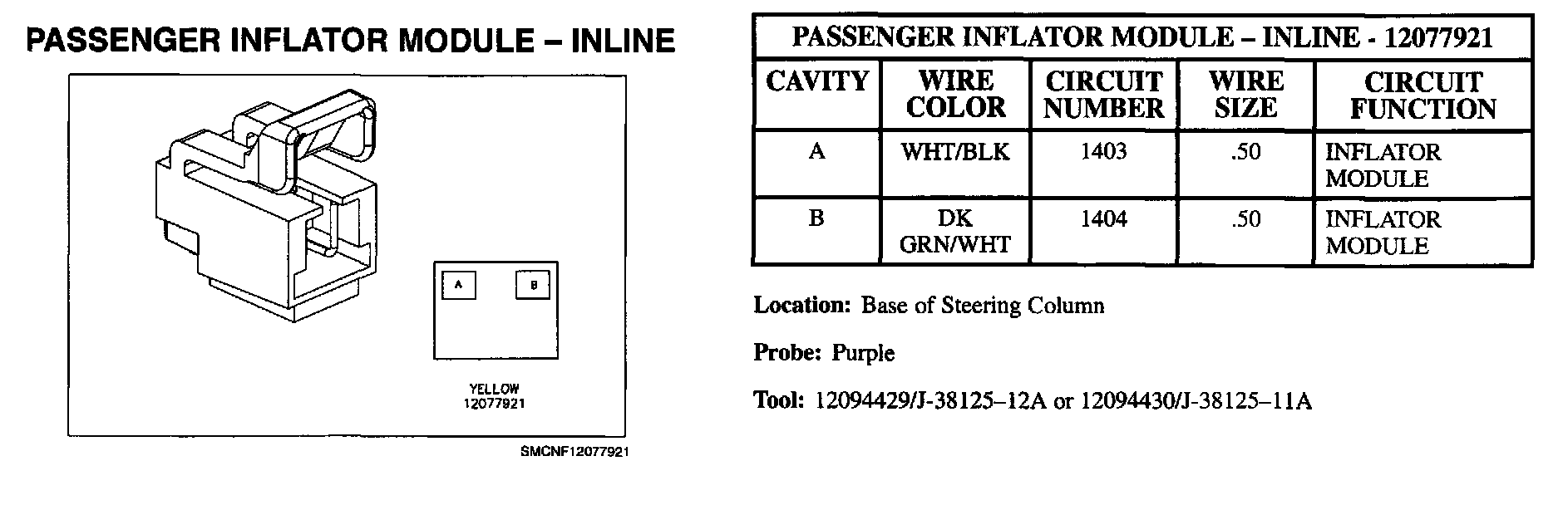

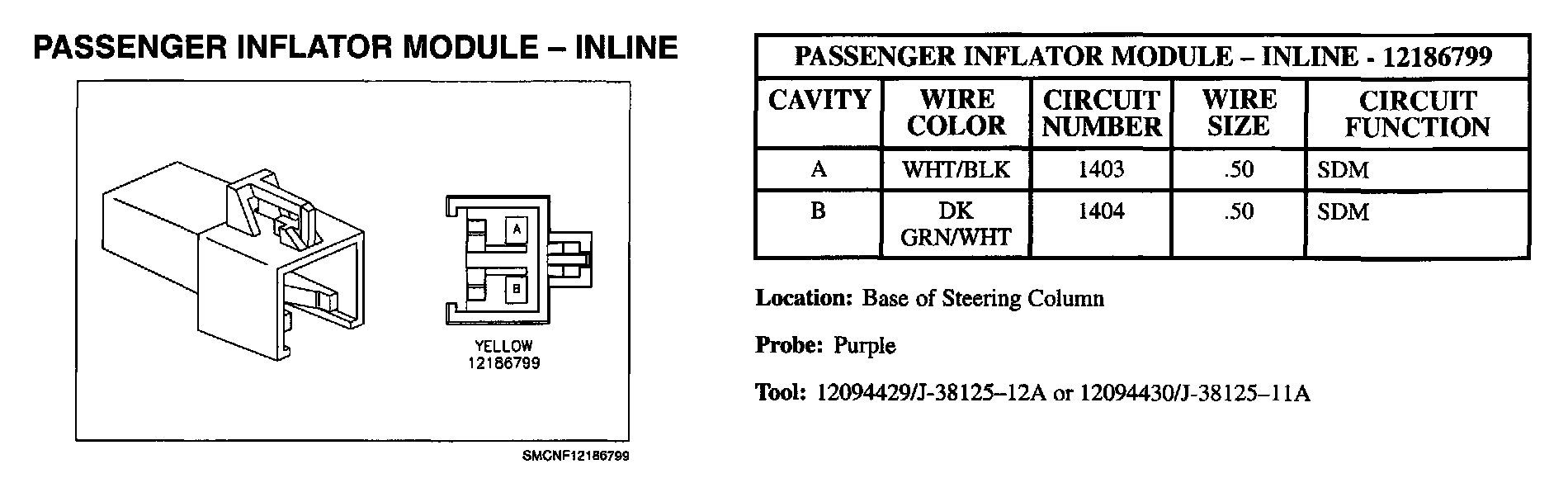

Passenger Inflator Module - Inline

Passenger Inflator Module - Inline:



Passenger Inflator Module - Inline:
