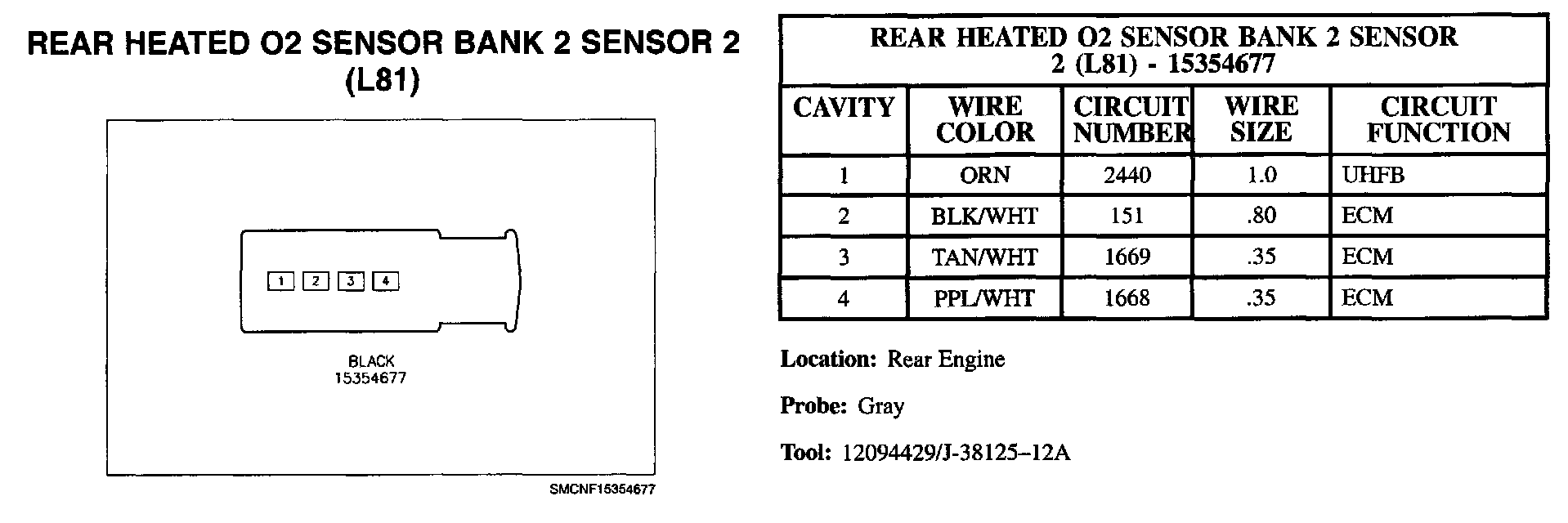

Rear Heated O2 Sensor Bank 2 Sensor 2
Rear Heated O2 Sensor Bank 2 Sensor 2
Rear Heated O2 Sensor Bank 2 Sensor 2:
