Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> System Diagram

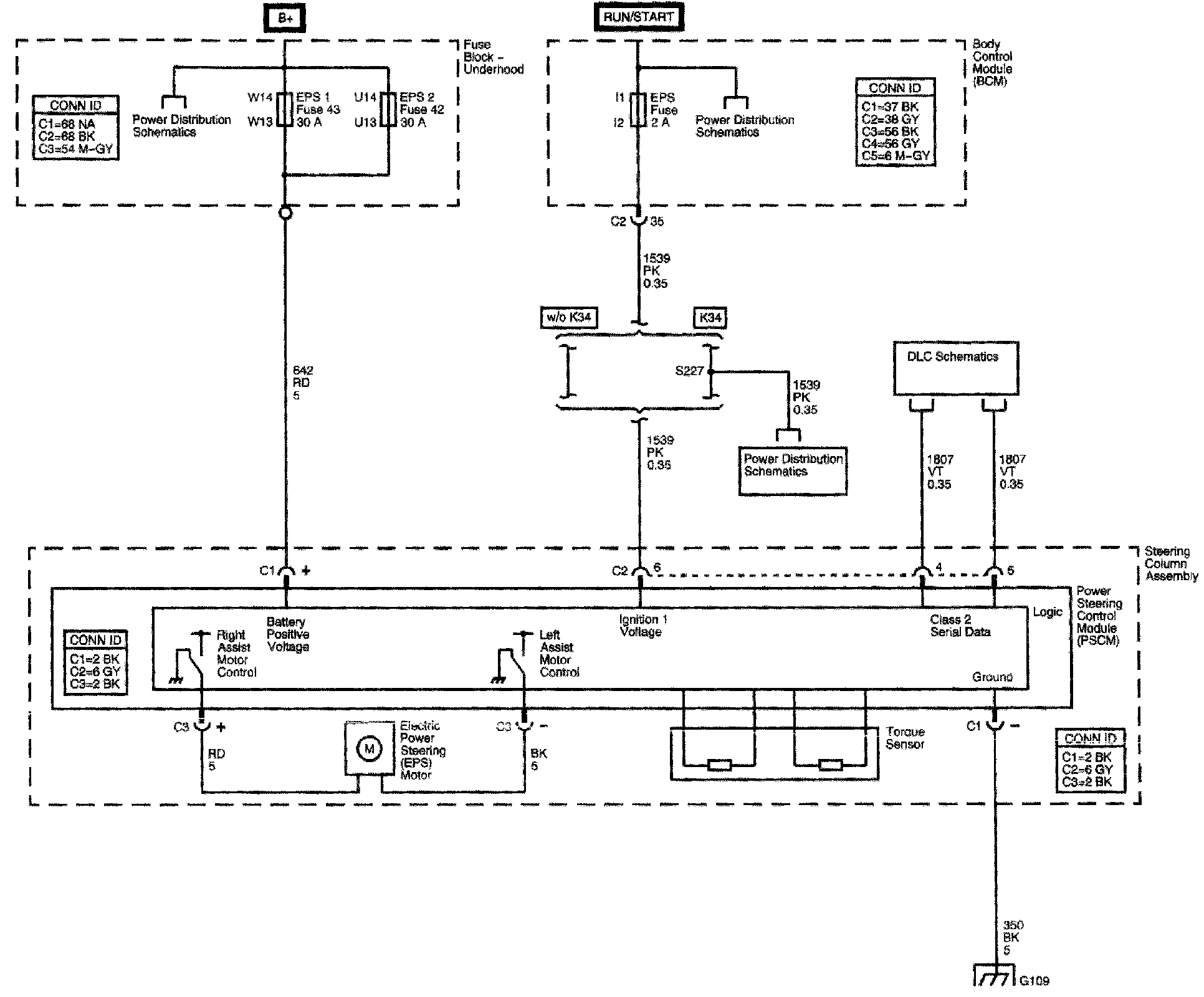

System Diagram

Schematic and Routing Diagrams:
