Home
>>
Saturn
>>
2000
>>
SC2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
Powertrain Controls

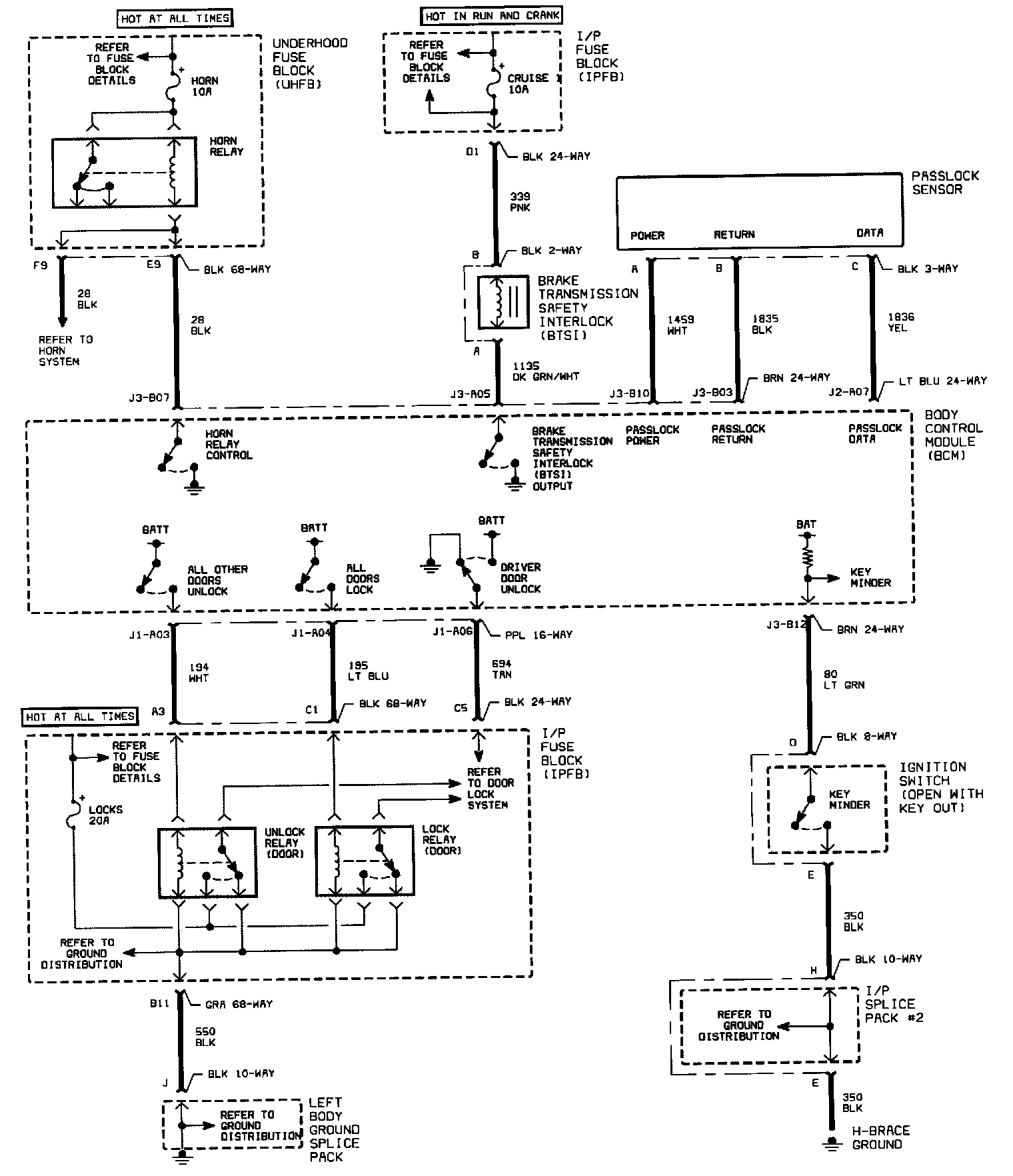

Body Control Module Schematics:

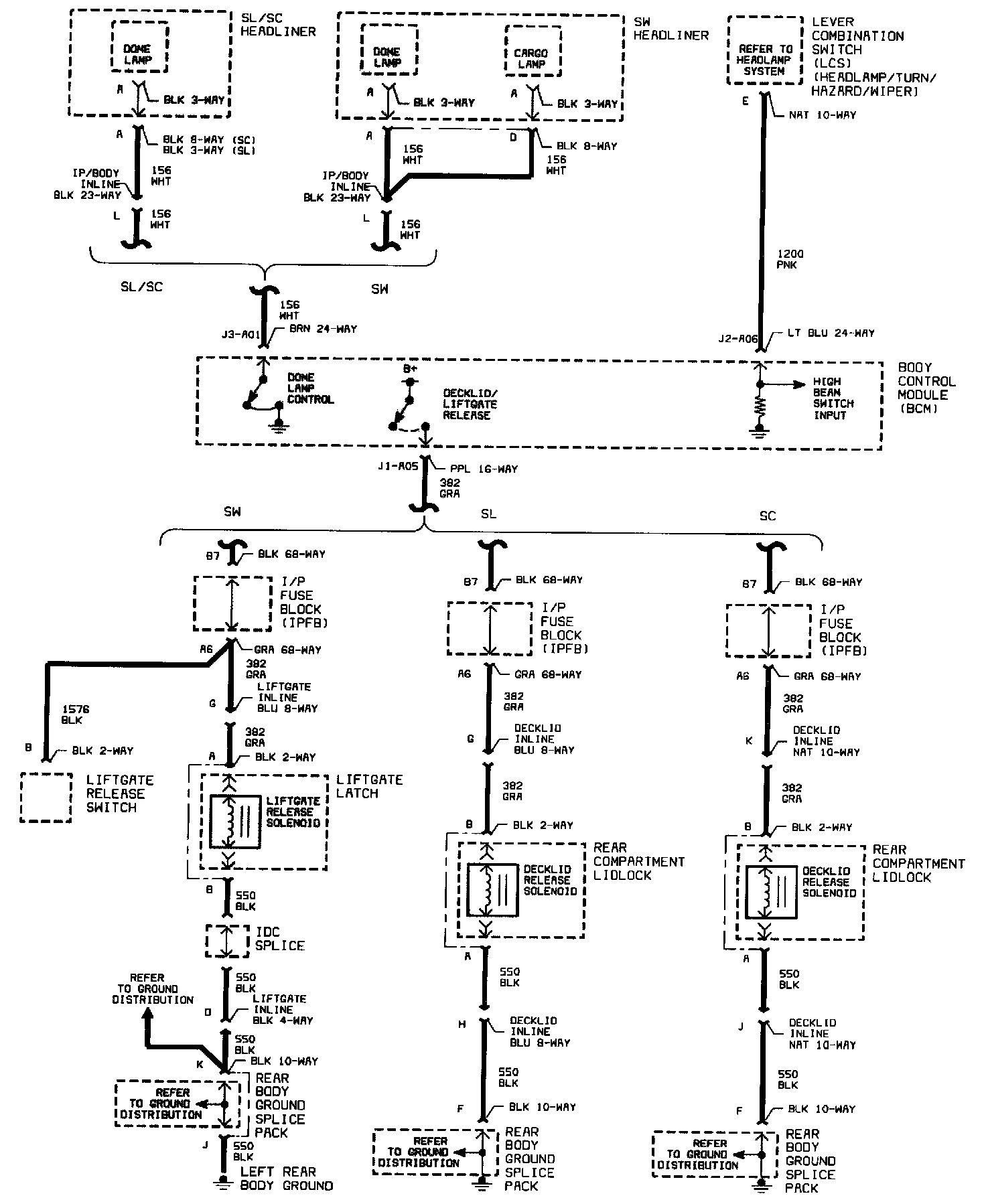

Body Control Module Schematics:

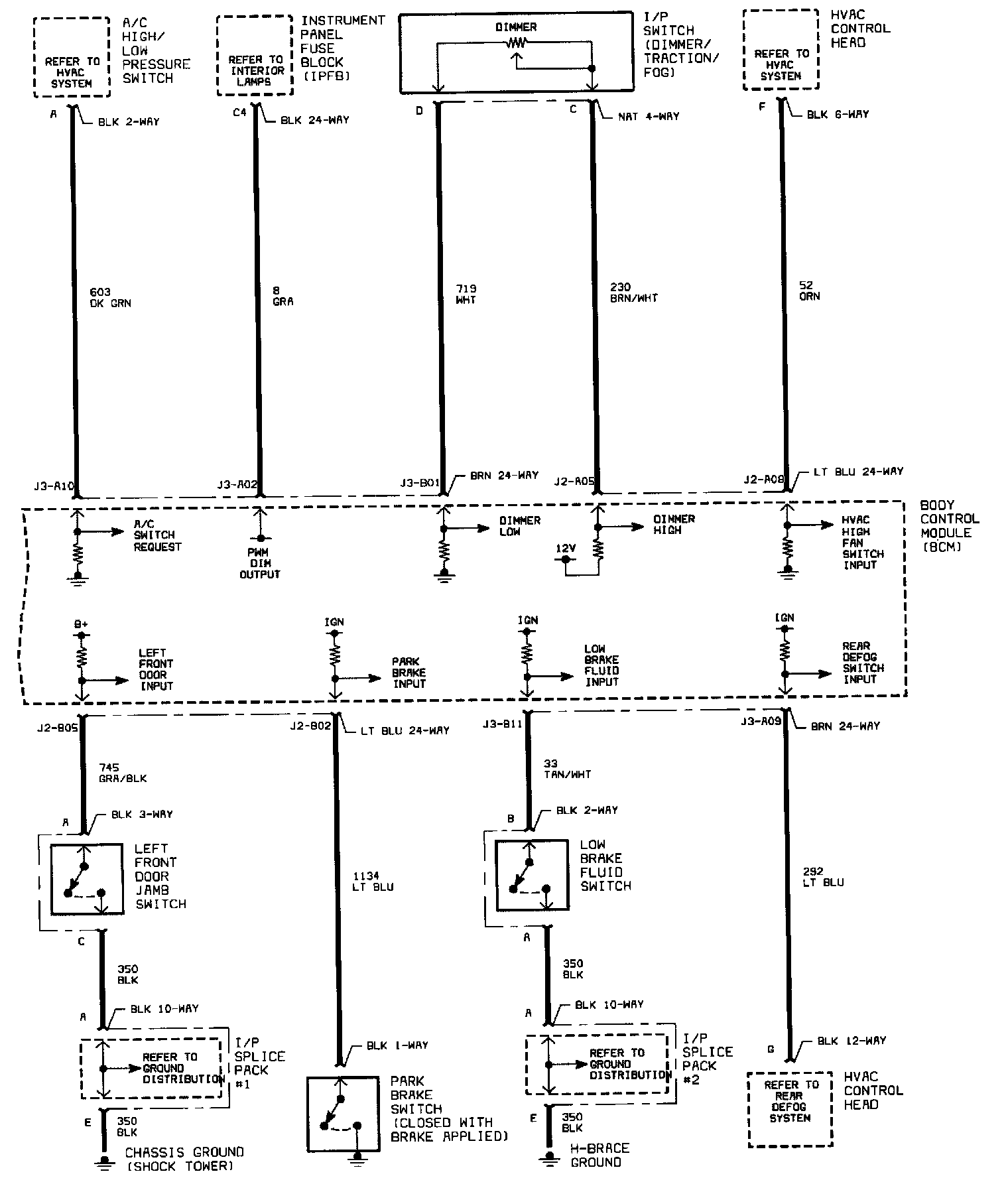

Body Control Module Schematics:

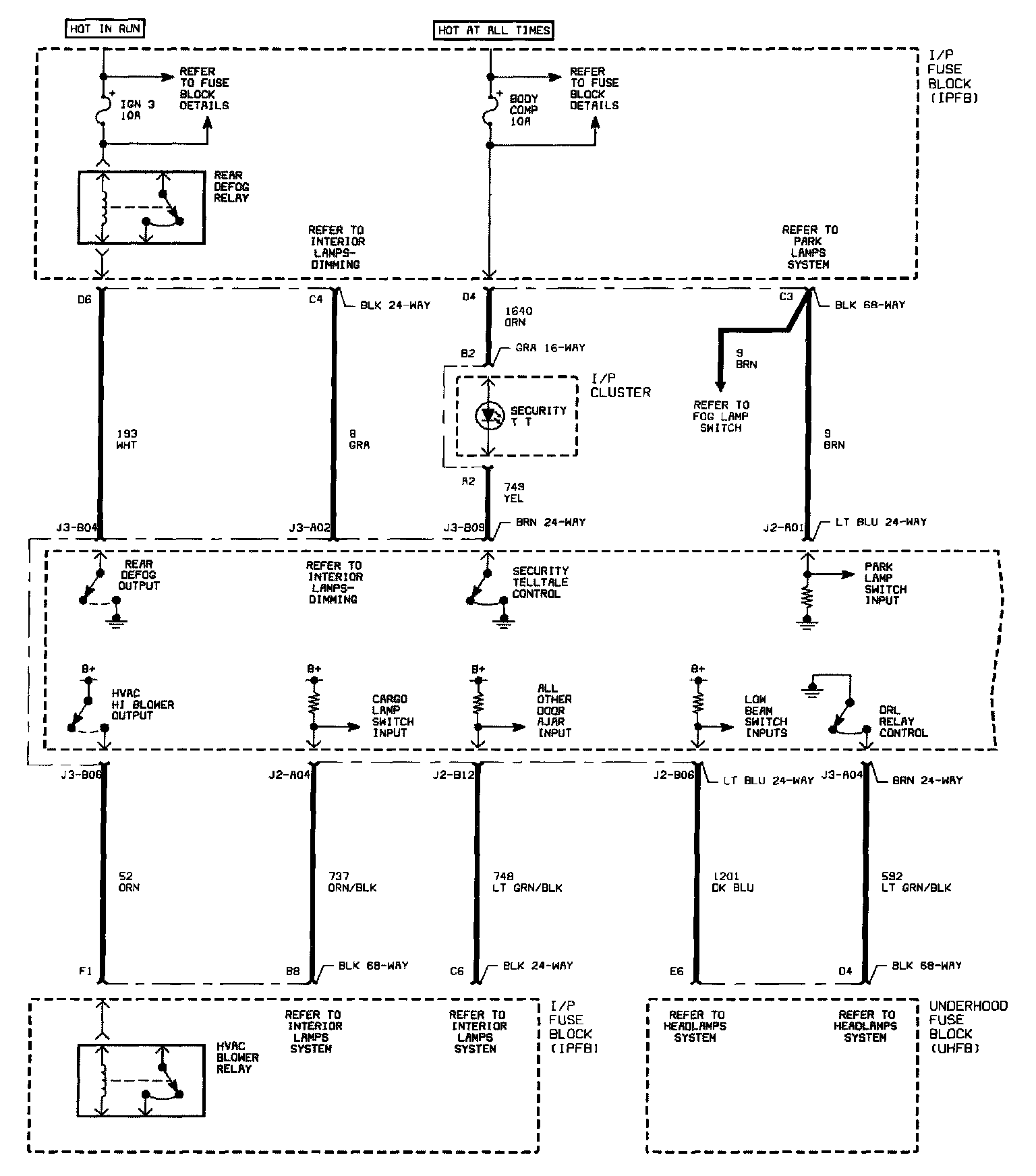

Body Control Module Schematics:

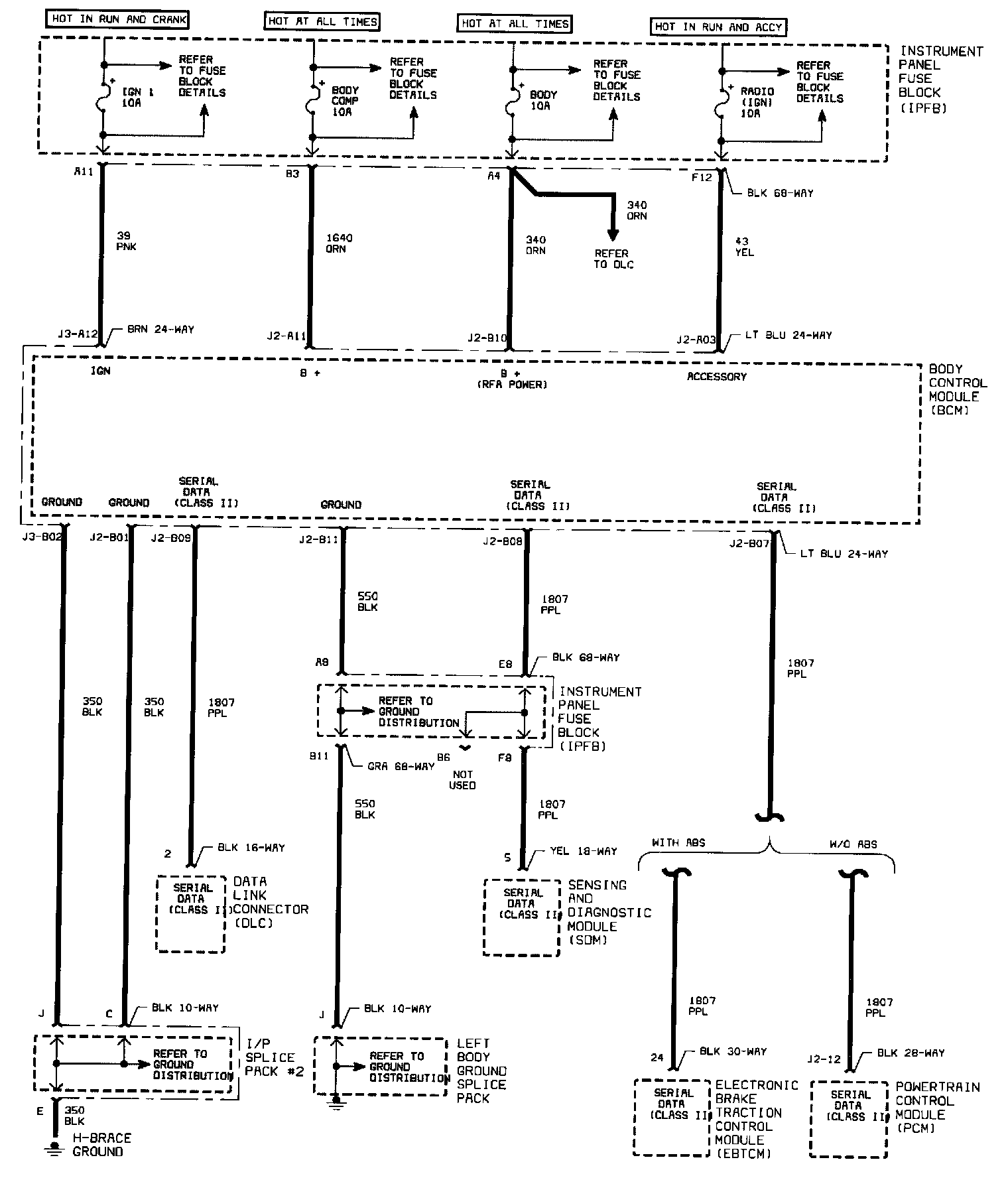

Body Control Module Schematics:
