Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle/Throttle Speed Control Unit
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

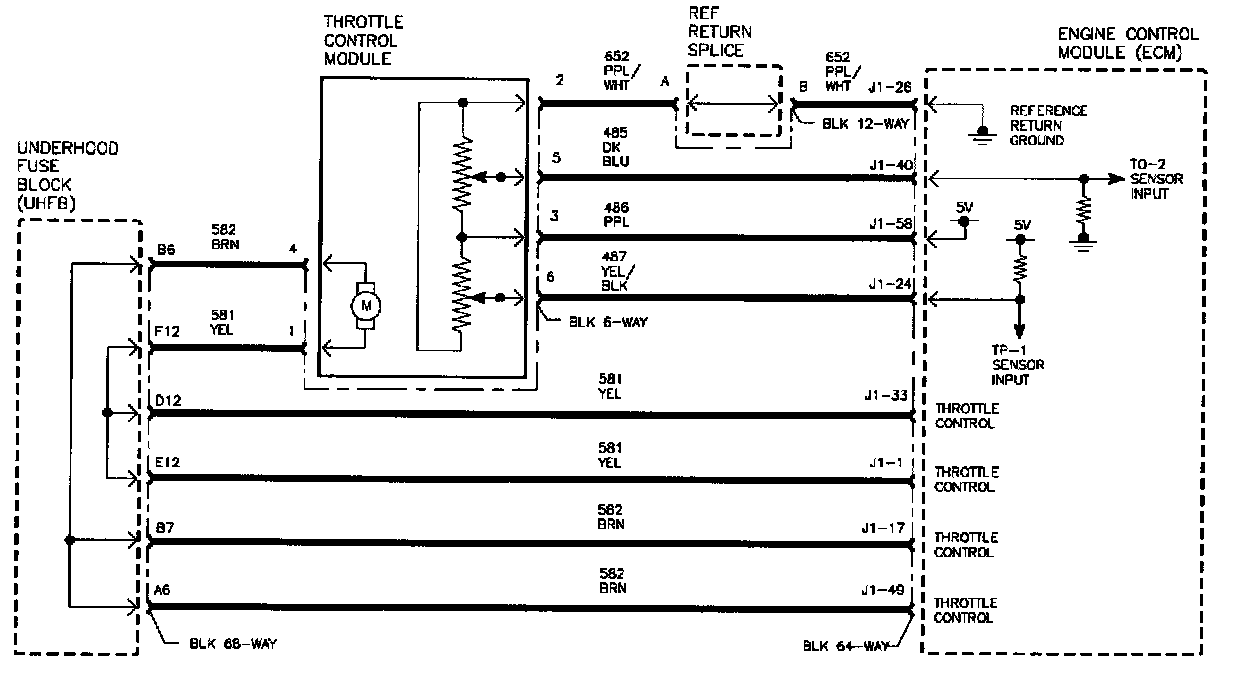

Throttle Control System:
