Saturn
>>
2000
>>
LS1 L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

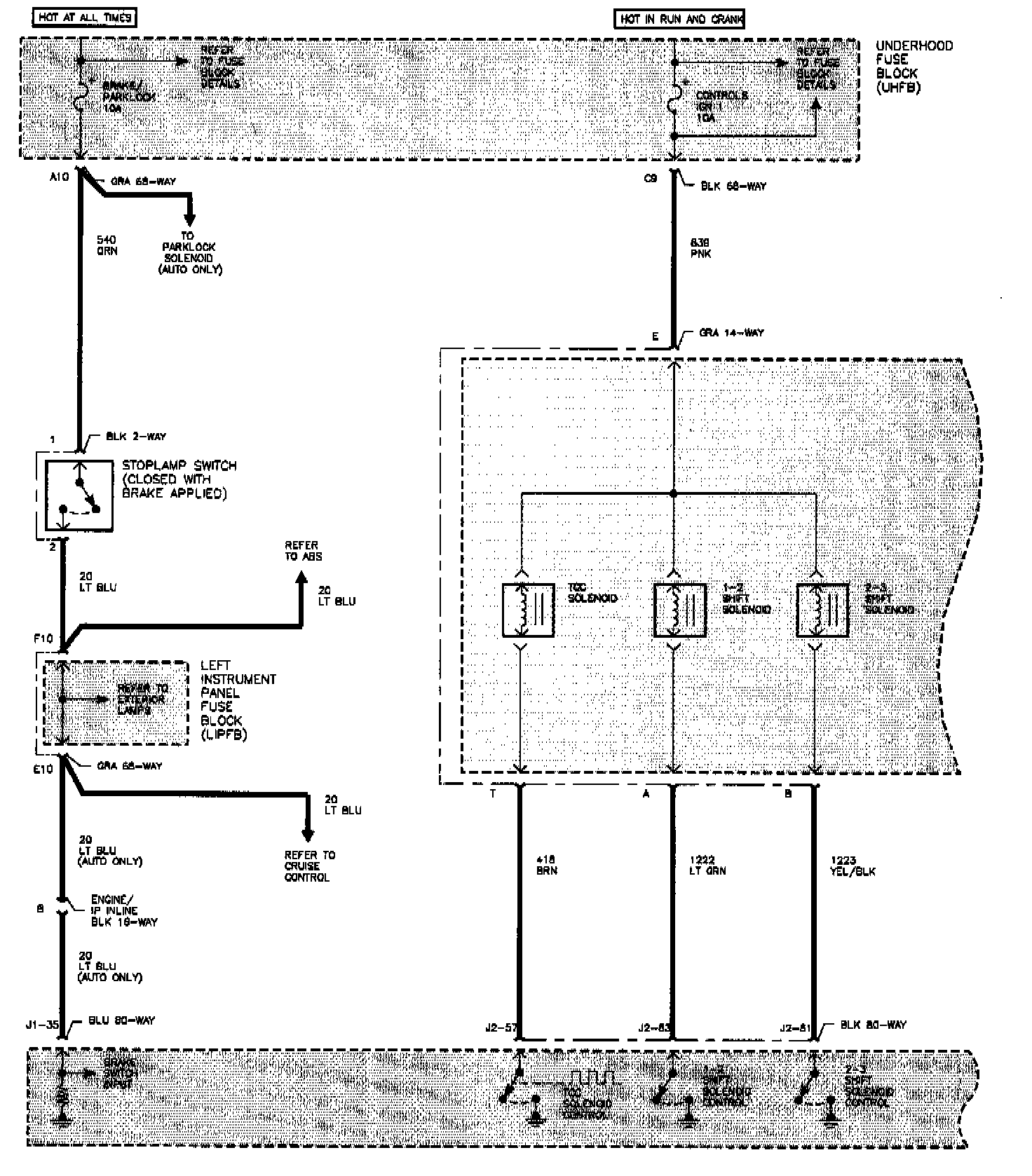

PCM Transaxle Inputs and Outputs
PCM Transaxle Inputs and Outputs
