Home
>>
Saturn
>>
2000
>>
LS1 L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Body Control Module
>>
J3
J3

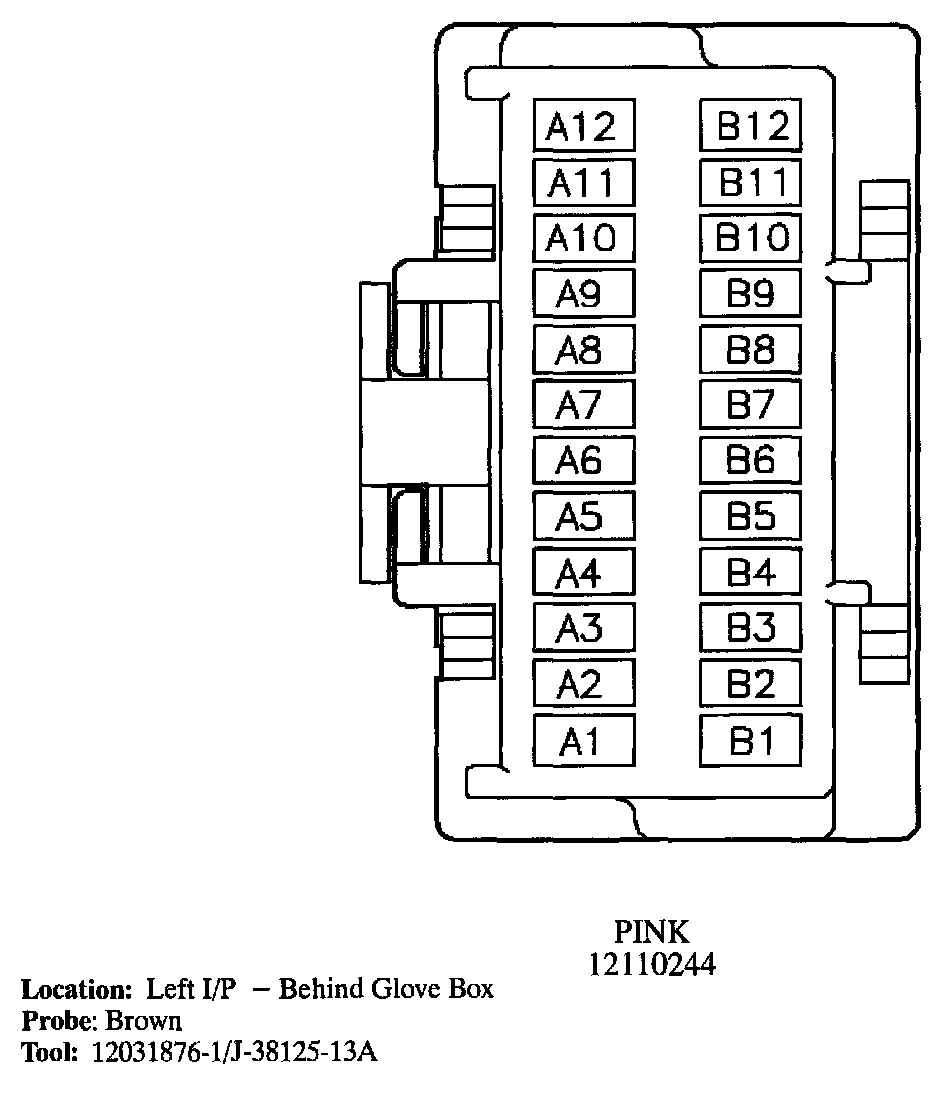

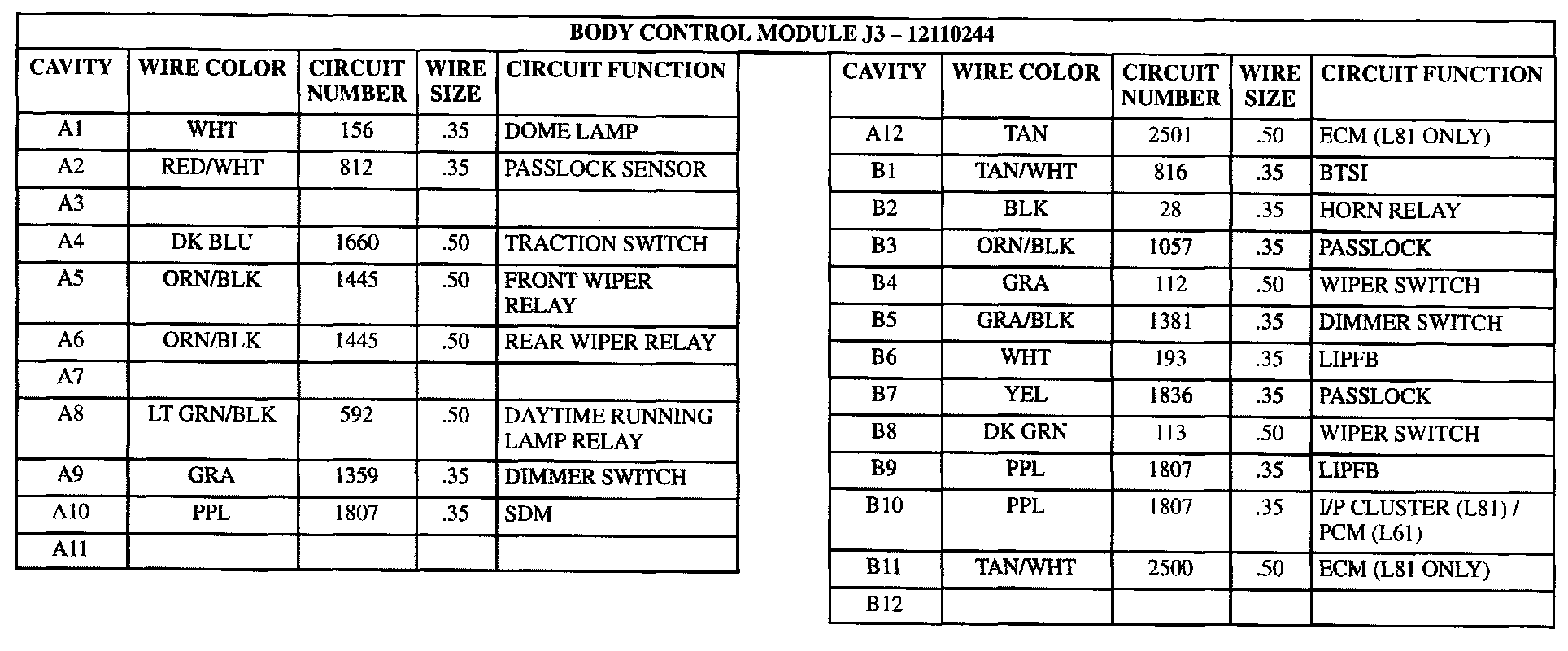

Body Control Module J3:
Body Control Module J3:
