Maxifuse/Minifuse Feeds

Maxifuse/Minifuse Feeds:

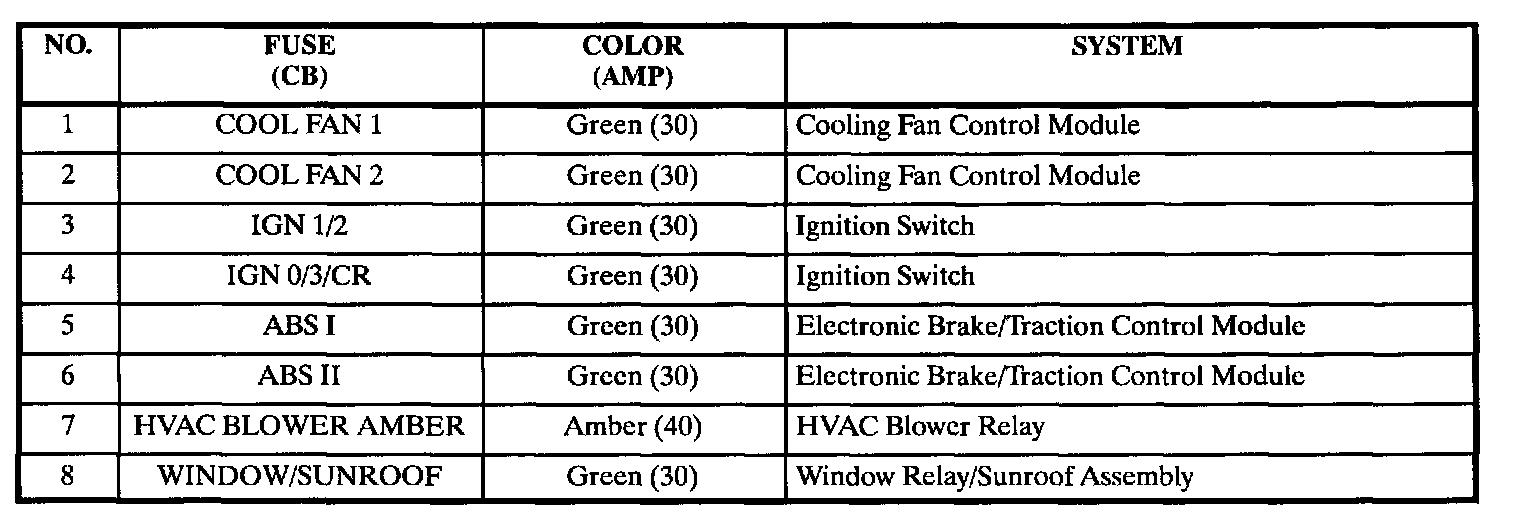

This chart lists the maxifuses and minifuses they control.
