Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Connector Views >> Engine To I/P Inline Engine

Engine To I/P Inline Engine

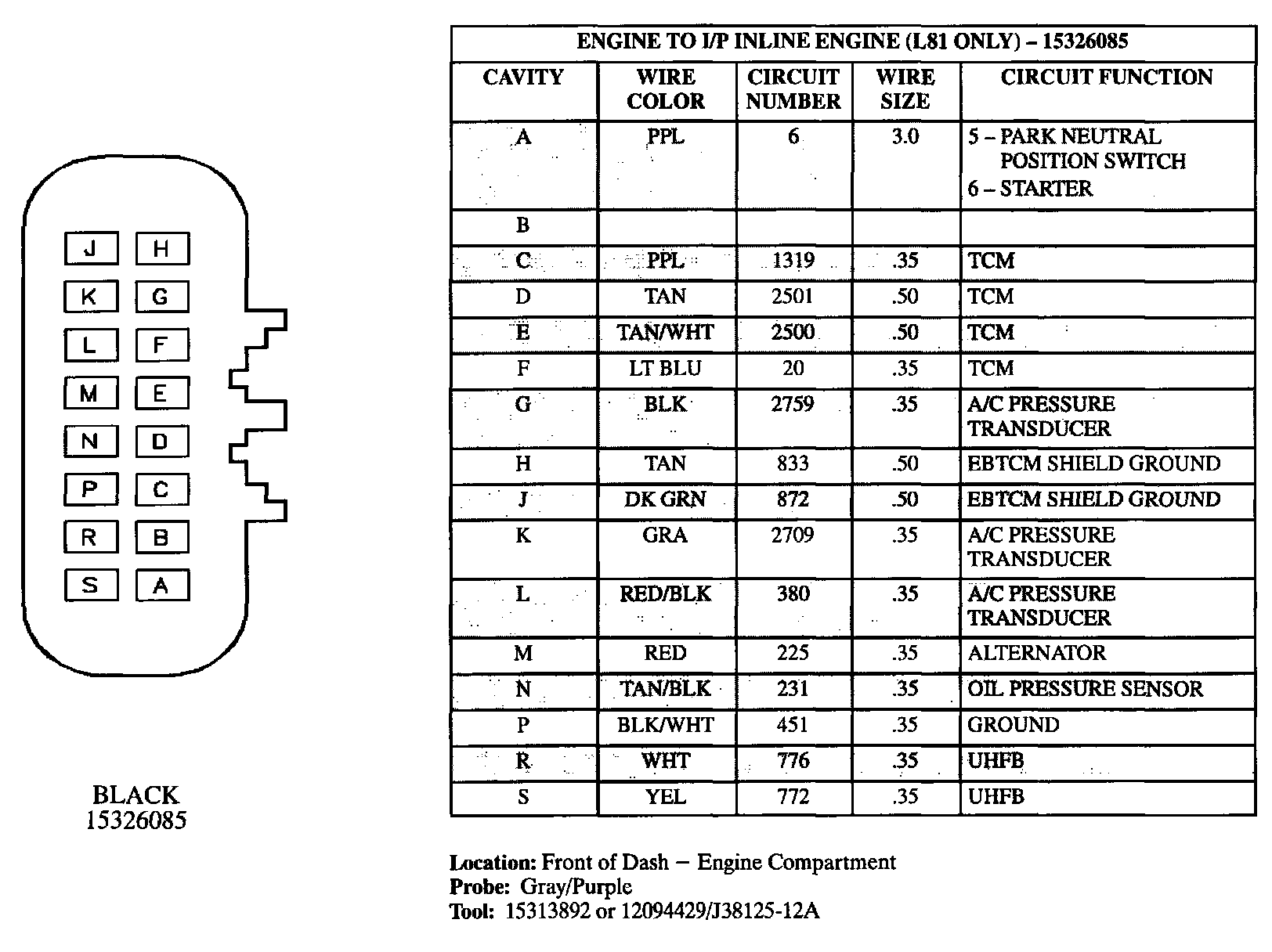

Engine To I/P Inline Engine:



Engine To I/P Inline Engine:
