Flex Plate: Service and Repair

Engine Flywheel Replacement (LCS) (3.6L Hybrid)

Removal Procedure




1. Remove the transmission.Refer to Transmission Replacement (Removal and Replacement)

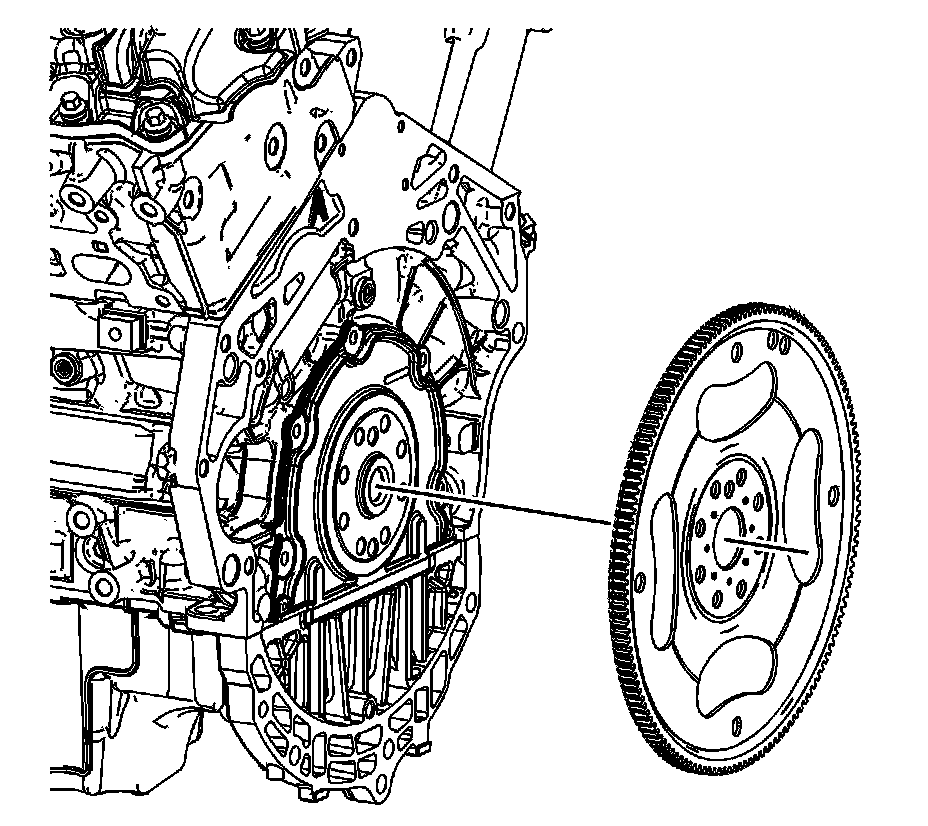

2. Remove the engine flywheel bolts and flywheel. Refer to Engine Flywheel Removal (LY7) (Overhaul)Engine Flywheel Removal (LCS) (Overhaul).
3. Clean and inspect the flywheel. Refer to Engine Flywheel Cleaning and Inspection (Overhaul).

Installation Procedure




1. Install the engine flywheel and bolts. Refer to Engine Flywheel Installation (LY7) (Overhaul)Engine Flywheel Installation (LCS) (Overhaul).
2. Install the transmission.Refer to Transmission Replacement (Removal and Replacement)
