Saturn Truck
>>
2009
>>
VUE FWD V6-3.6L Hybrid
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Diagrams
>>
Connector Views
Connector Views

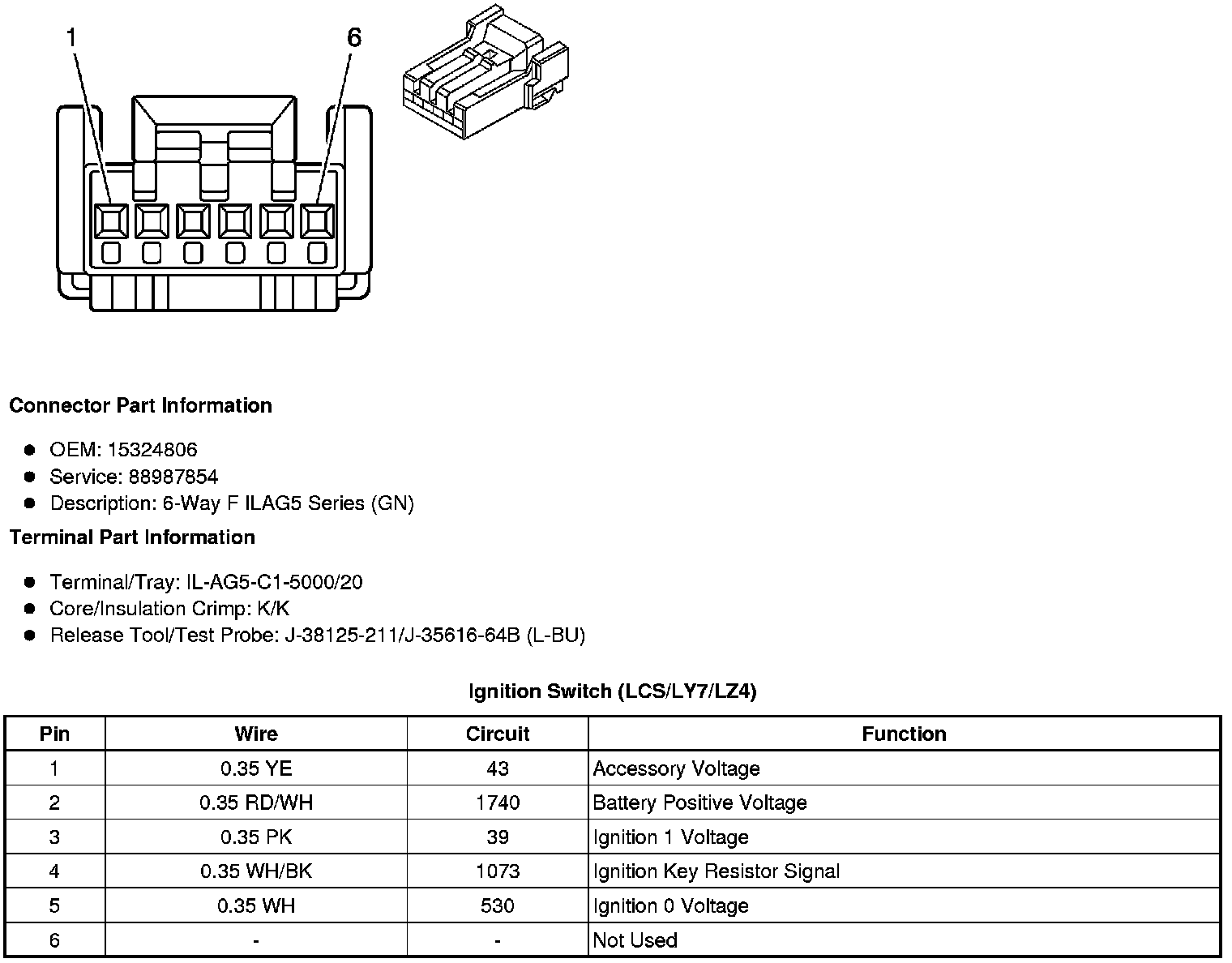

Component Connector End Views
Ignition Switch
(LCS/LY7/LZ4)
