Safety Disconnect Impact Sensor: Diagrams

Component Connector End Views

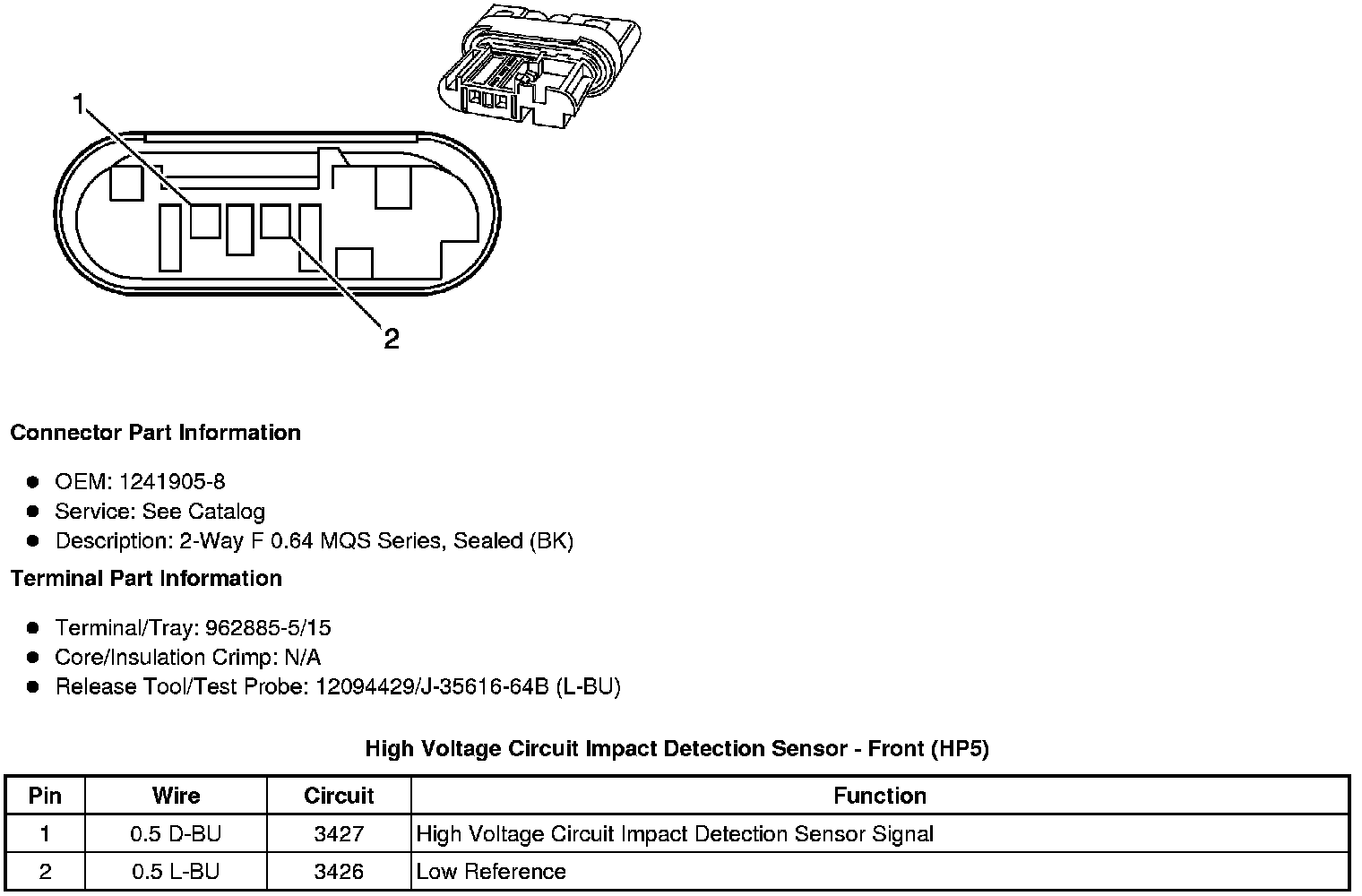

High Voltage Circuit Impact Detection Sensor - Front (HP5)

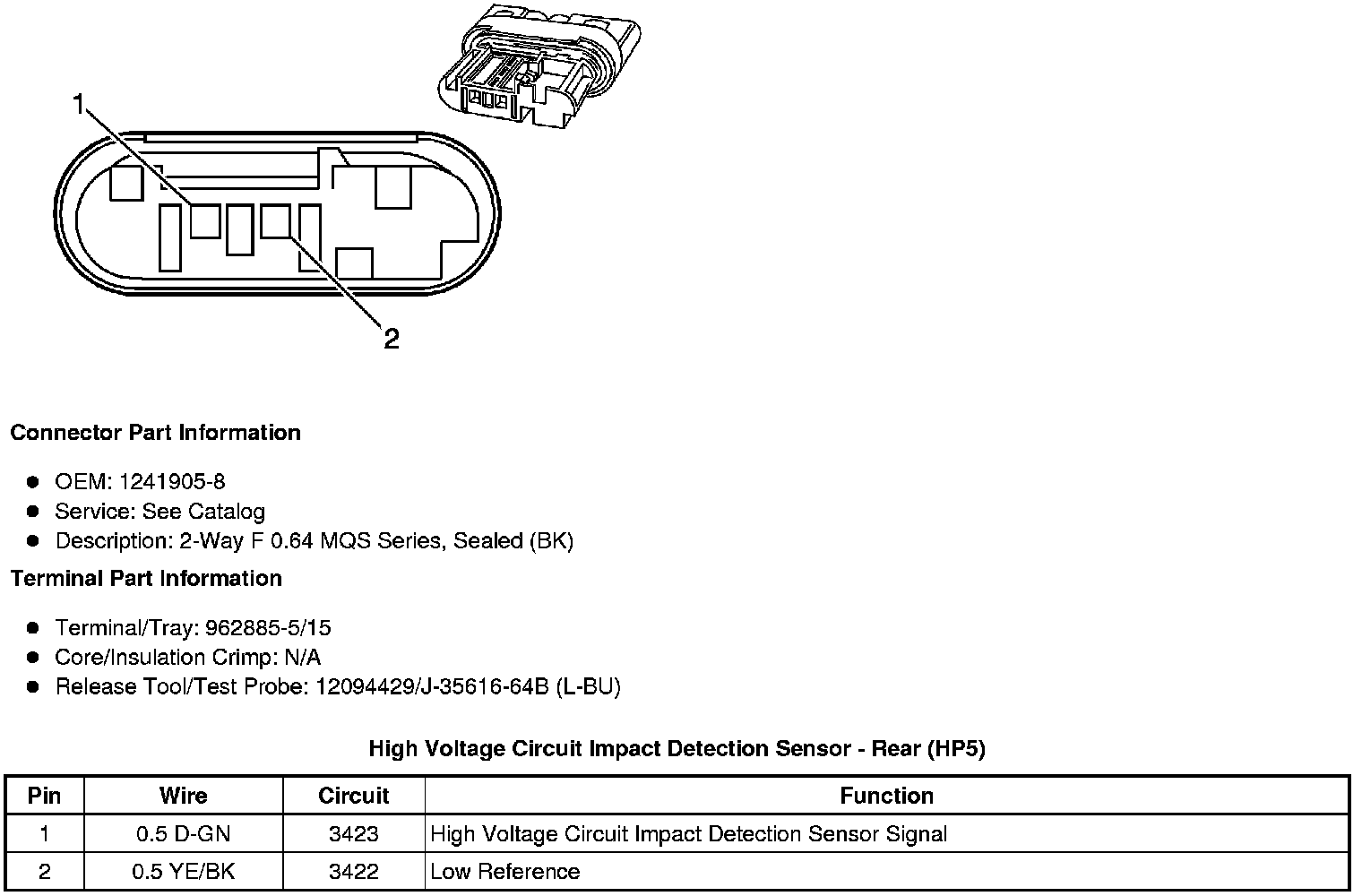

High Voltage Circuit Impact Detection Sensor - Rear (HP5)
