Hybrid Battery Service Switch




Component Connector End Views

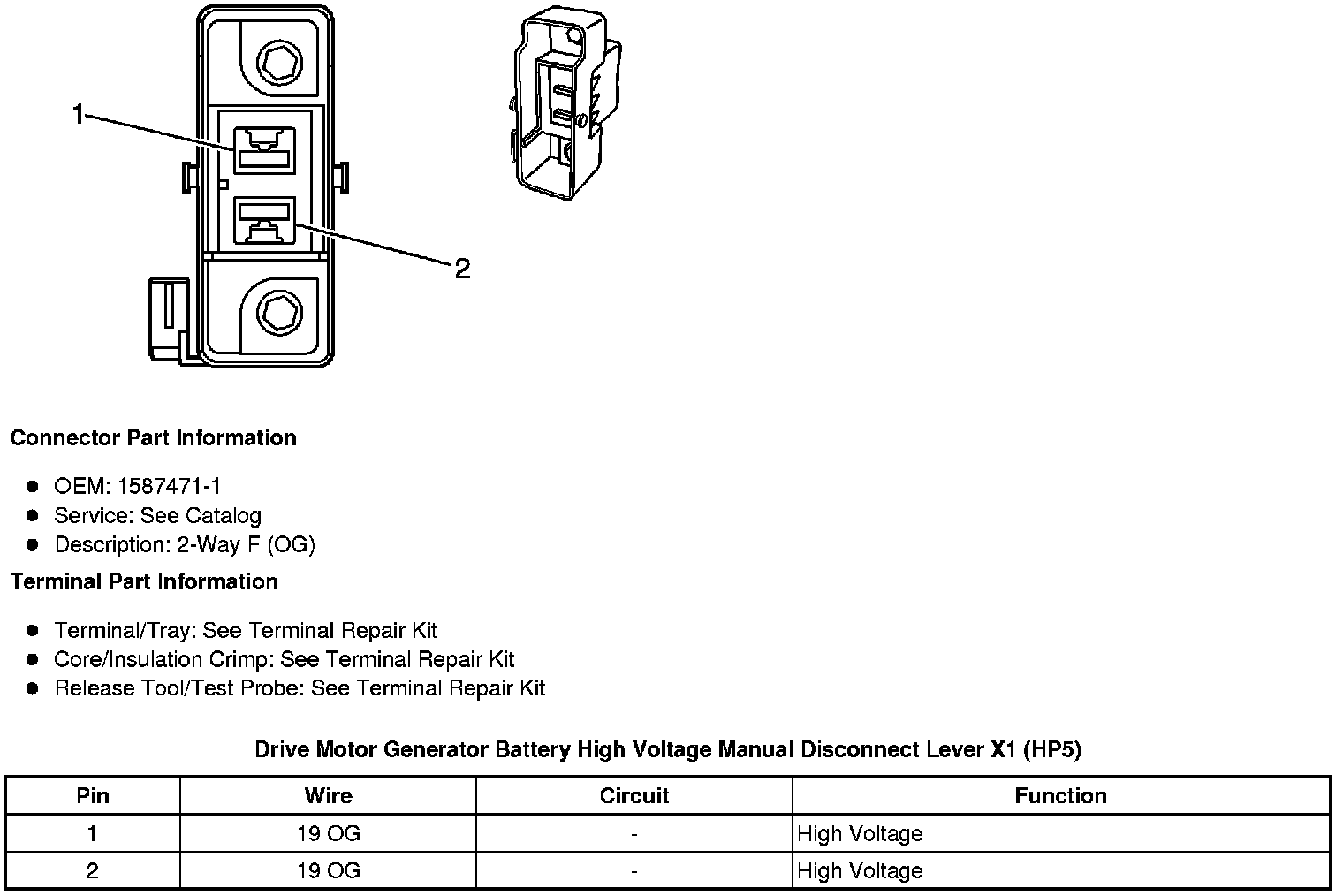

Drive Motor Generator Battery High Voltage Manual Disconnect Lever X1 (HP5)

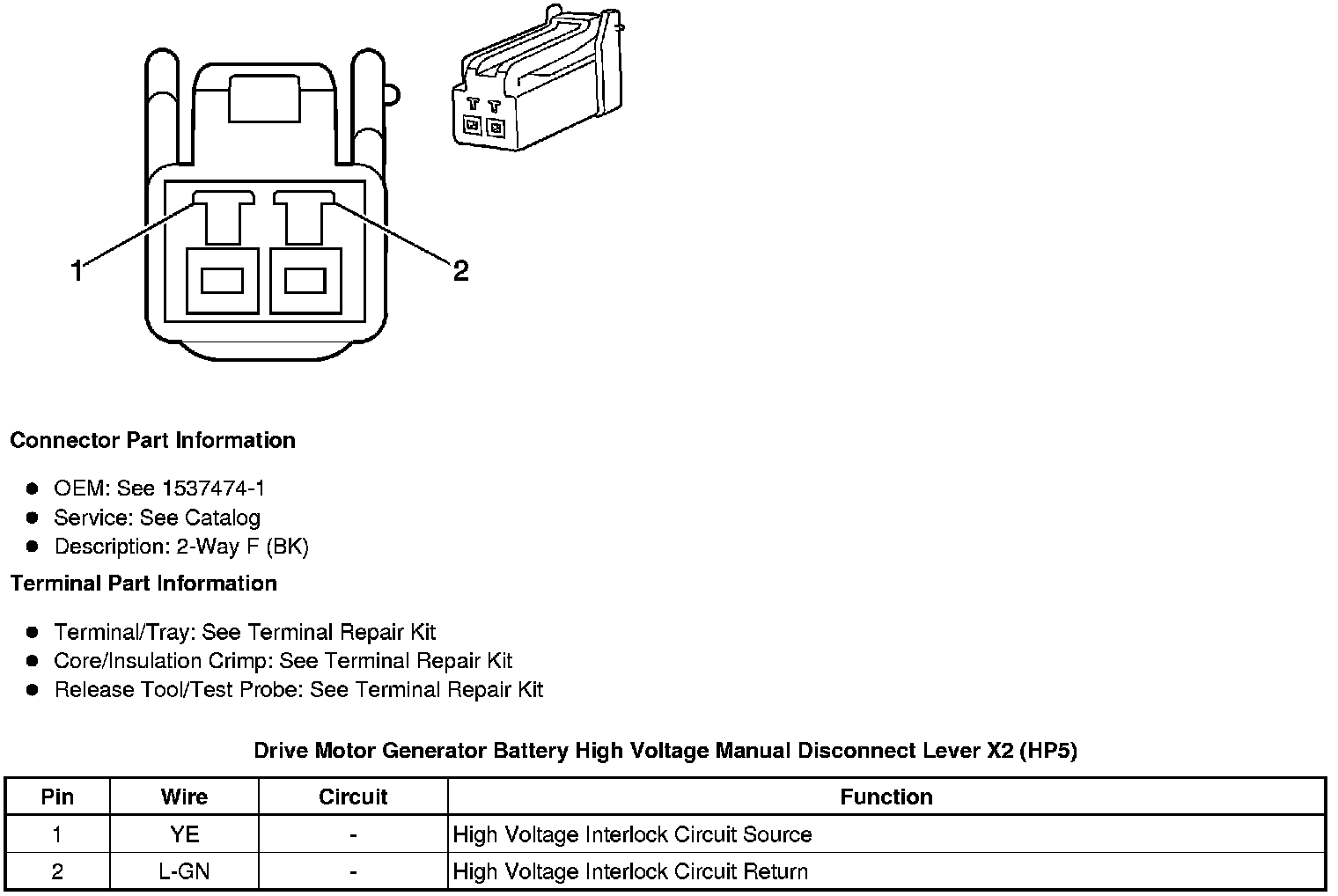

Drive Motor Generator Battery High Voltage Manual Disconnect Lever X2 (HP5)
