Saturn Truck
>>
2009
>>
VUE FWD V6-3.6L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC
Component Connector End Views
Blower Motor Control Module X1

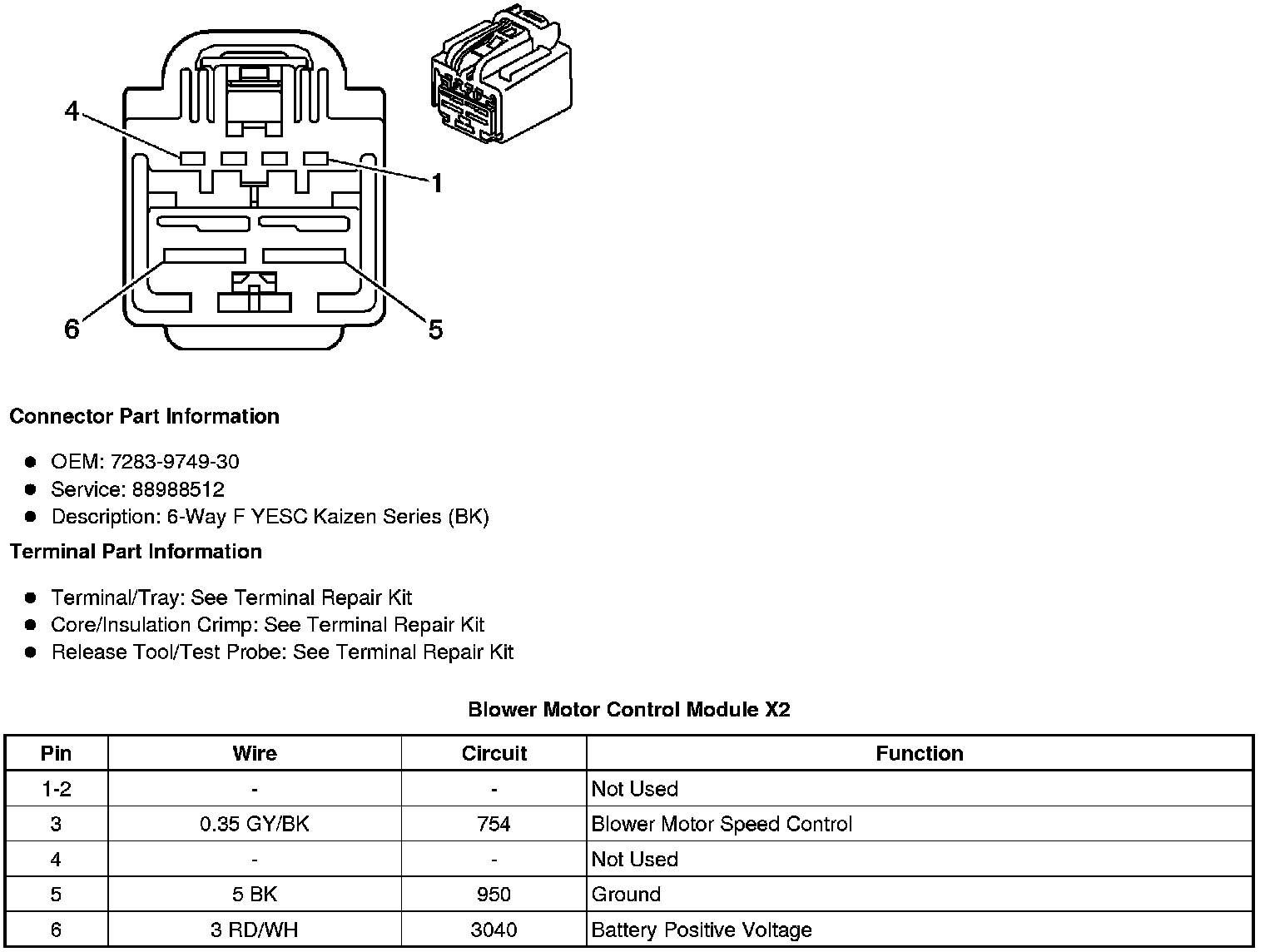

Blower Motor Control Module X2
