Floor Air Outlet Replacement - Center

Floor Air Outlet Replacement - Center

Removal Procedure




1. Remove the transmission control bracket. Refer to Transmission Control Bracket Replacement (Transmission Control Bracket Replacement).

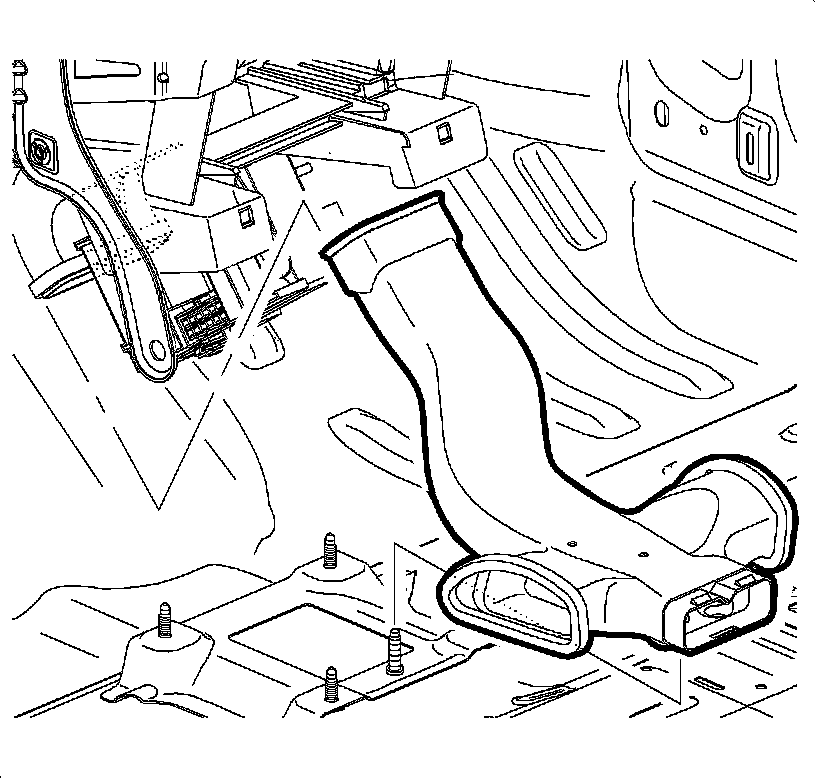

2. Slide the center floor air outlet duct forward enough to clear the rear floor air outlet duct, and then up, and rearward to remove.

Installation Procedure




1. Slide the center floor air outlet duct forward enough to clear rear floor air duct, and then down, and rearward to install.
2. Install the transmission control bracket. Refer to Transmission Control Bracket Replacement (Transmission Control Bracket Replacement).
