Saturn Truck
>>
2009
>>
VUE FWD L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X400 - X499
>>
X401
X401

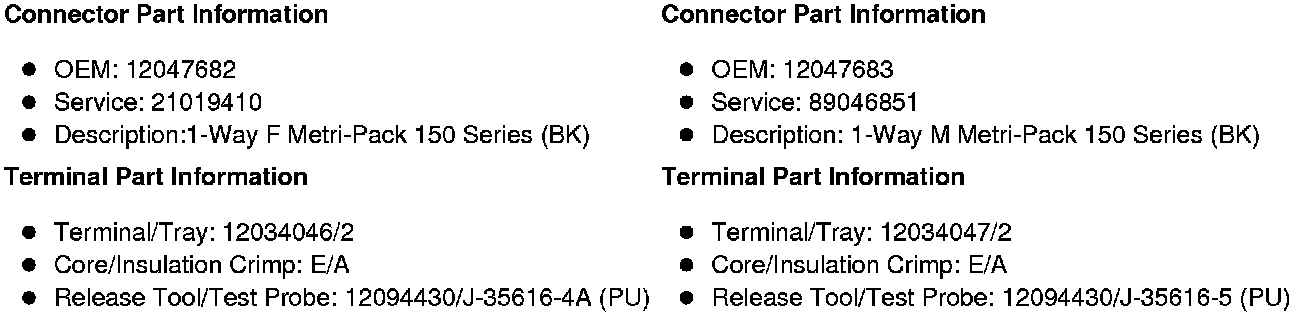

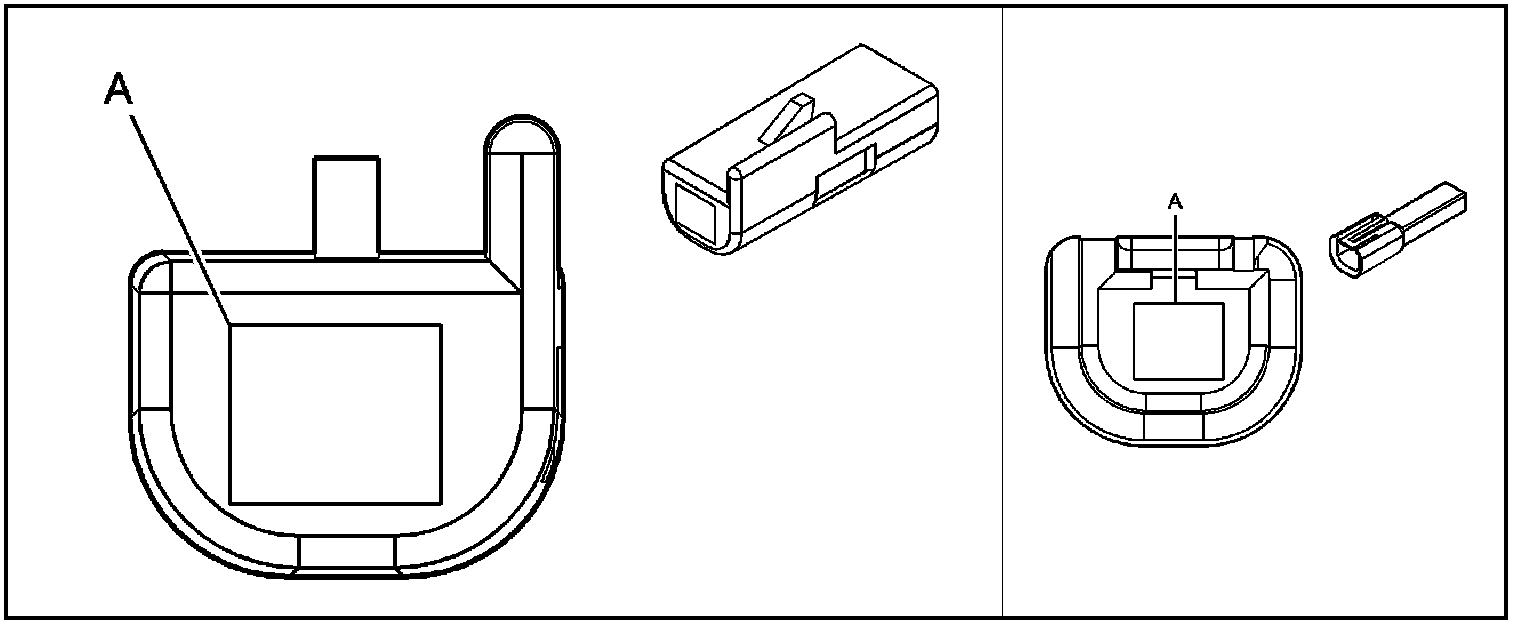

Inline Harness Connector End Views

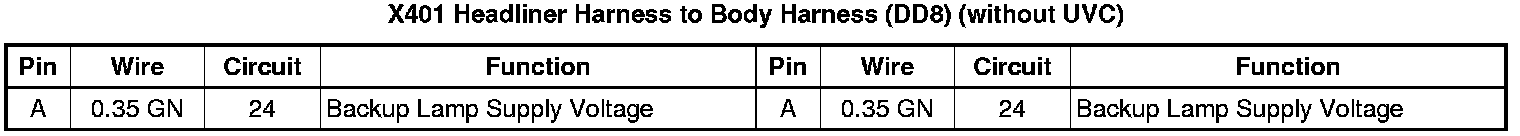

X401 Headliner Harness to Body Harness (DD8) (without UVC)
