X131
X131

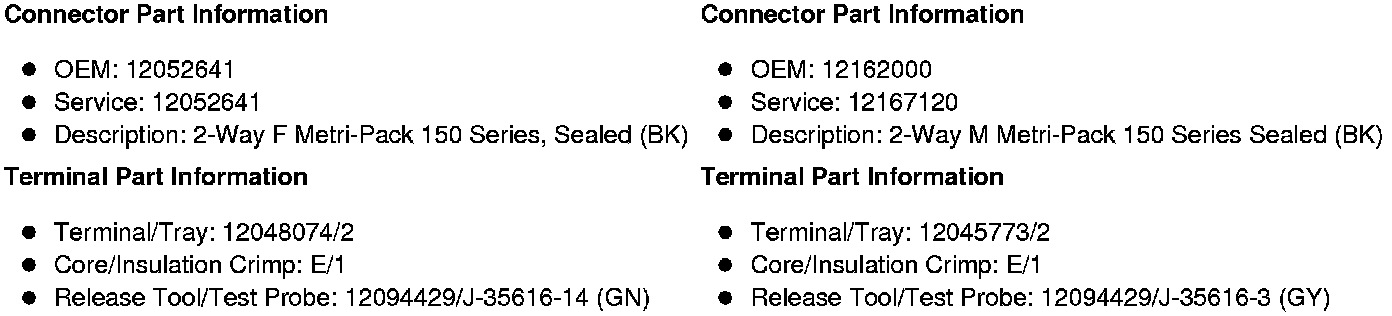

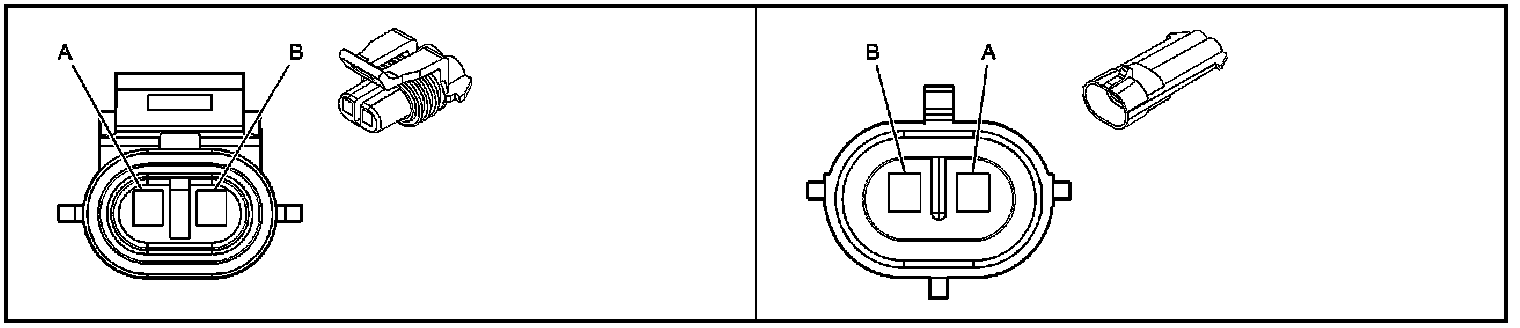

Inline Harness Connector End Views

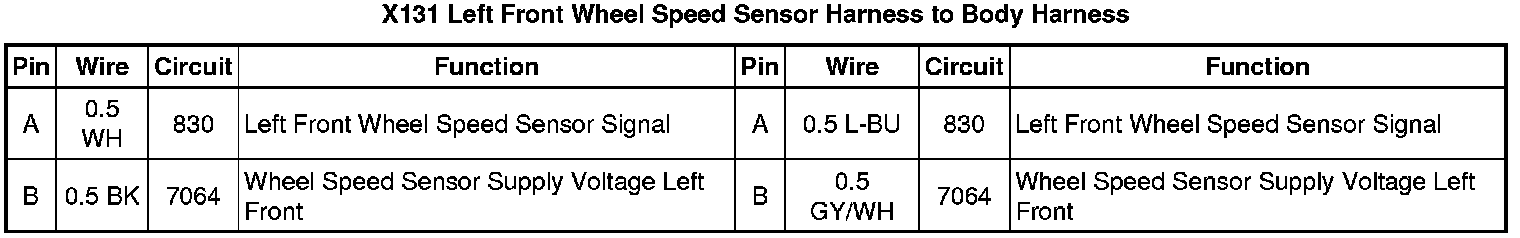

X131 Left Front Wheel Speed Sensor Harness to Body Harness
