Saturn Truck
>>
2009
>>
Outlook AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200 - X299
>>
X252
X252

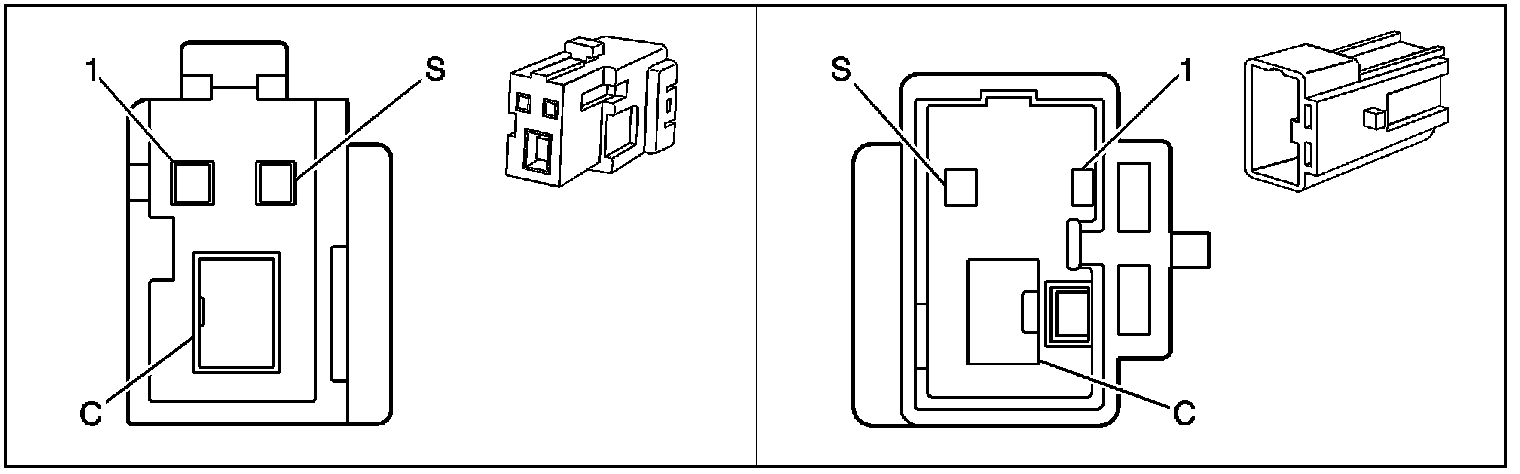

Inline Harness Connector End Views

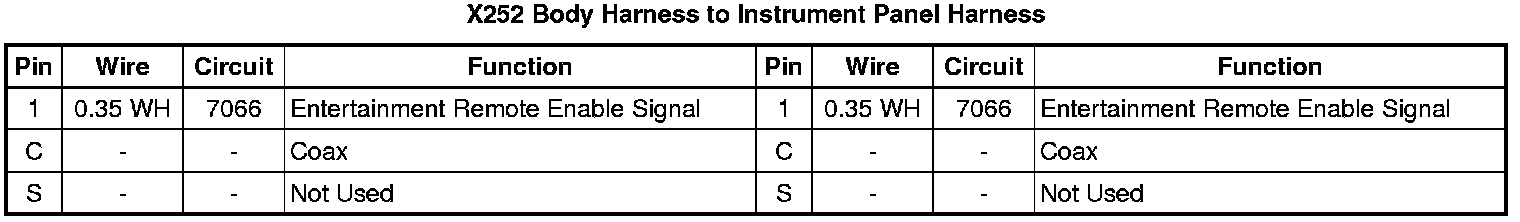

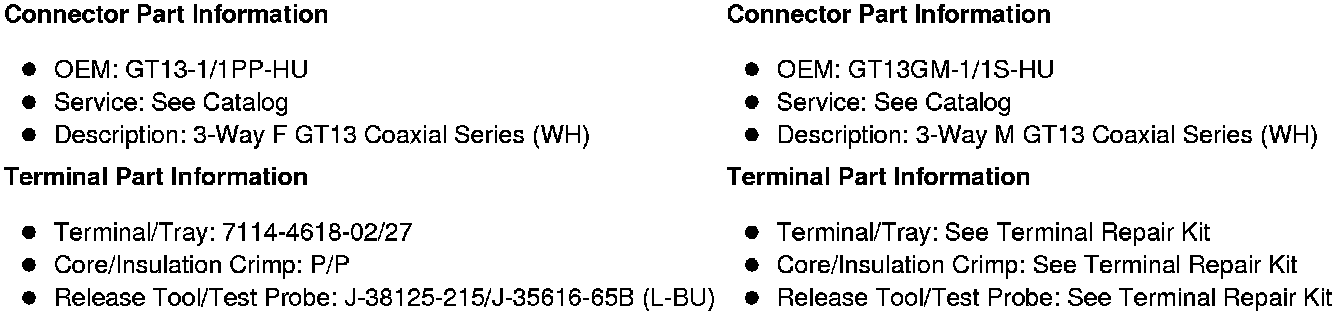

X252 Body Harness to Instrument Panel Harness
