Saturn Truck
>>
2009
>>
Outlook AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Ambient Light Sensor
Ambient Light Sensor
Component Connector End Views

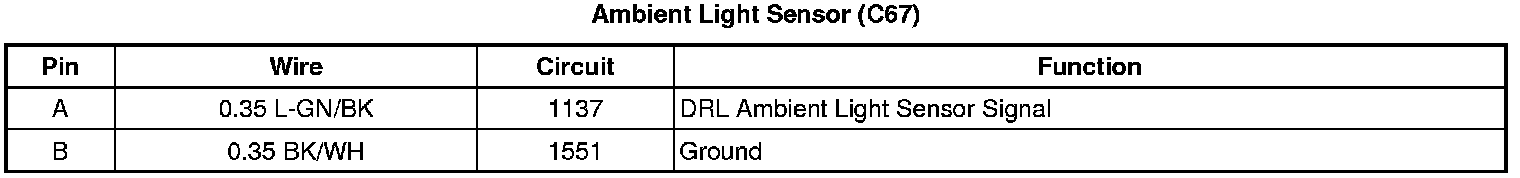

Ambient Light Sensor
(C67)
