Saturn Truck
>>
2007
>>
RELAY AWD V6-3.9L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views
HVAC Connector End Views

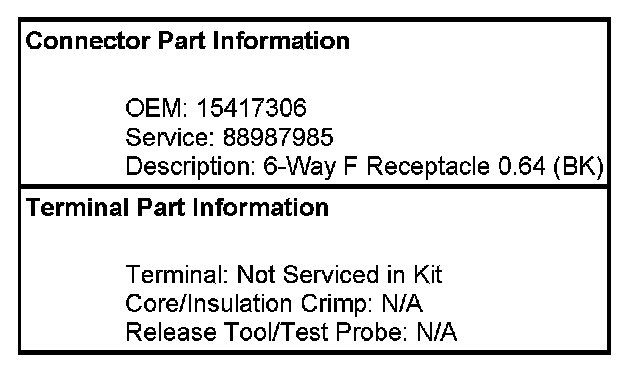

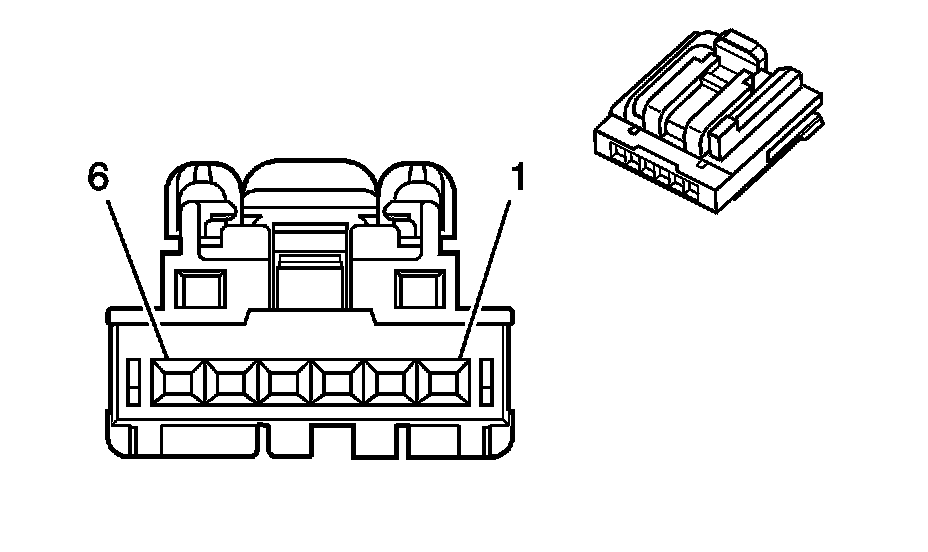

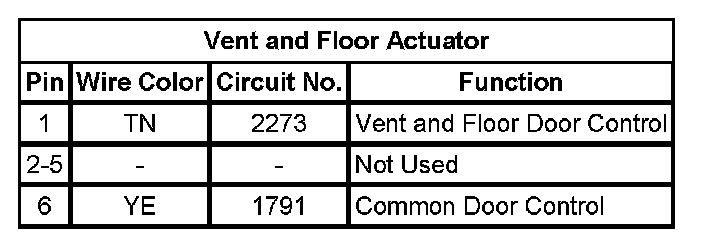

Vent and Floor Actuator
