Evaporative Emissions Hose: Service and Repair

EVAPORATIVE EMISSION (EVAP) HOSES/PIPES REPLACEMENT - CHASSIS/CANISTER

REMOVAL PROCEDURE

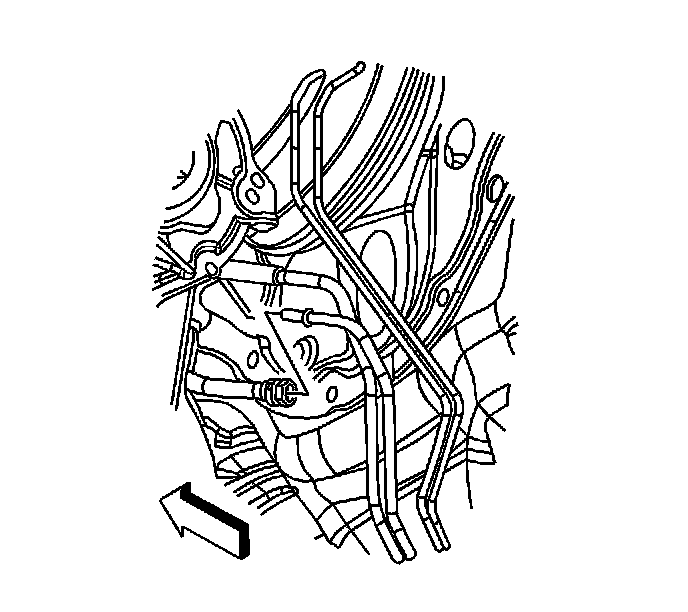

1. Disconnect the EVAP purge pipe from the engine purge hose.
2. Cap or plug the purge pipe and the engine purge hose to prevent contamination.




3. Raise and support the vehicle. Refer to Vehicle Lifting.
4. Disconnect the EVAP pipe from the EVAP canister.
5. Remove the rear brake pipe bracket retaining nuts and release the brackets from the body studs.




6. Release the pipe retainers (1) from the vehicle underbody.
7. Remove the purge pipe from the pipe retainers.
8. Lower the rear of the pipe while moving the pipe rearward slightly, then lower the front of the pipe.
9. Remove the purge pipe from the vehicle.

INSTALLATION PROCEDURE




1. Position the purge pipe to the vehicle.
2. With the rear of the pipe positioned slightly rearward and down, raise the front of the pipe into position.
3. Install the remainder of the pipe into position.
4. Install the purge pipe to the pipe retainers.
5. Secure the pipe retainers (1) to the vehicle underbody.




6. Install the rear brake hose brackets to the body studs and install the rear brake hose bracket retaining nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nuts to 10 N.m (89 lb in).

7. Connect the EVAP pipe to the EVAP canister.
8. Lower the vehicle.




9. Remove the caps or plugs from the purge pipe and the engine purge hose.
10. Connect the purge pipe to the engine purge hose.
