Variable Valve Timing Actuator: Diagrams

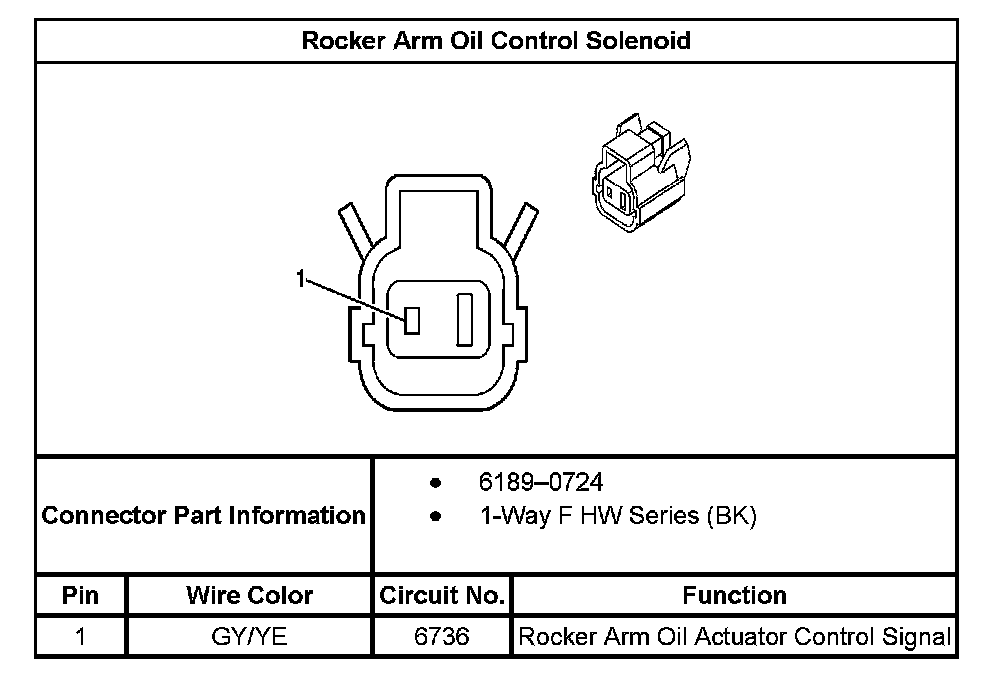

Rocker Arm Oil Control Solenoid:

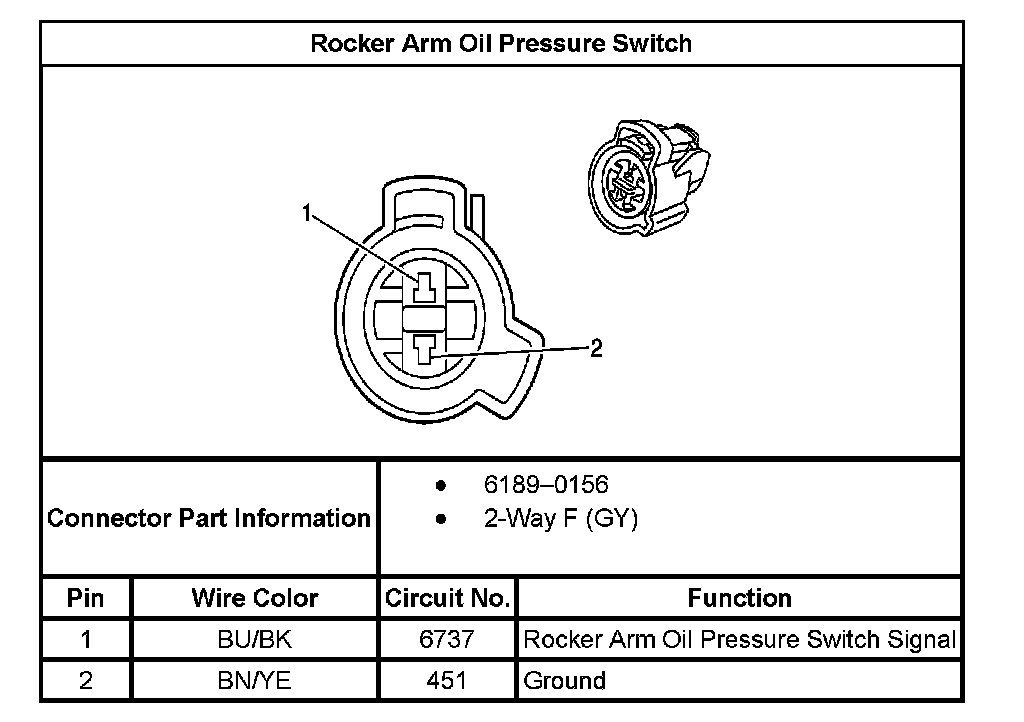

Rocker Arm Oil Pressure Switch:
