Saturn Truck
>>
2006
>>
VUE AWD V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C102
C102

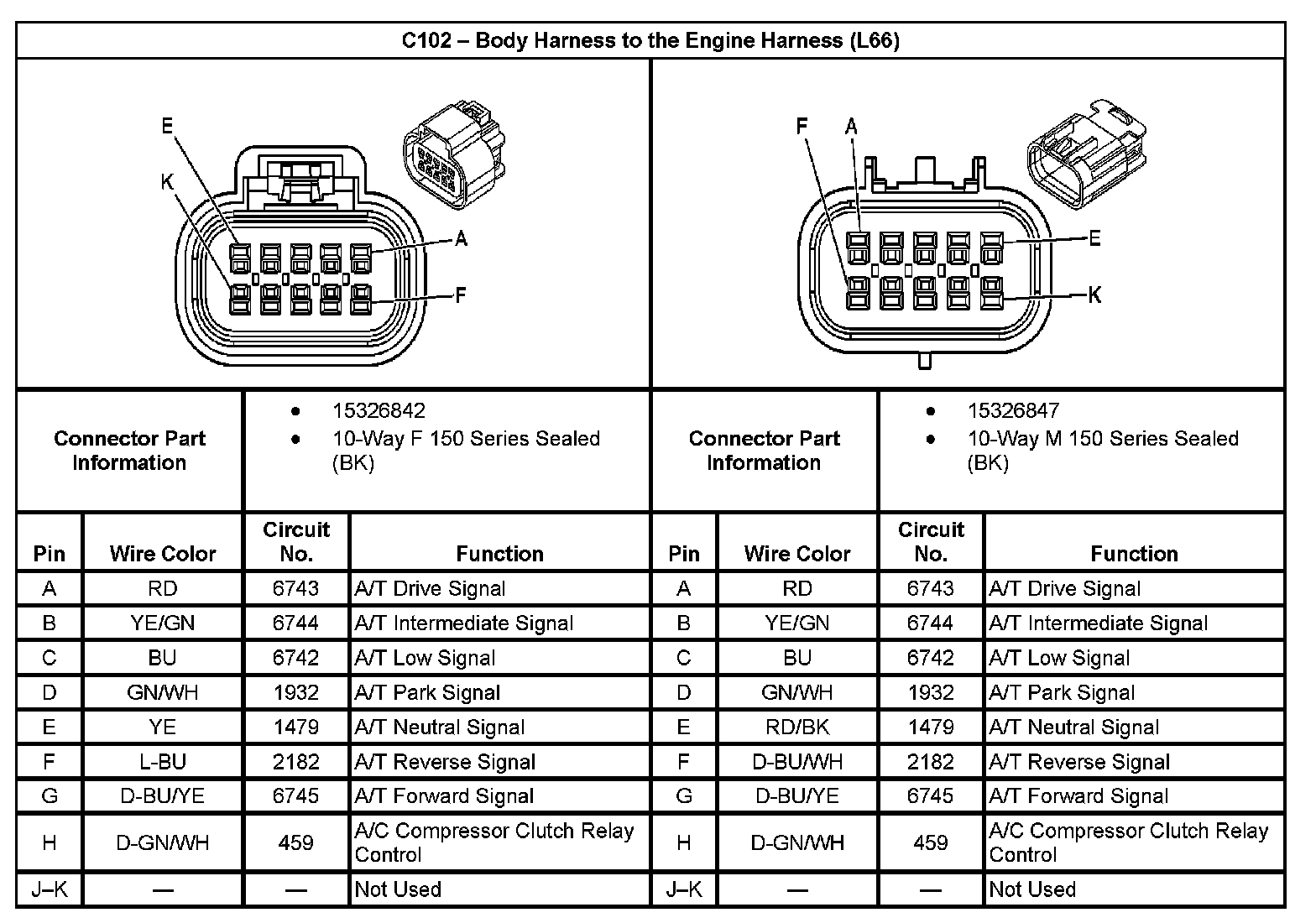

C102 - Body Harness To The Engine Harness:
