Heater Hose Replacement - Inlet (At Engine)

HEATER HOSE REPLACEMENT - INLET (AT ENGINE)

REMOVAL PROCEDURE




1. Drain the coolant. Refer to Draining and Filling Cooling System (GE 47716 Fill) Draining and Filling Cooling System (Static Fill).
2. Remove the air cleaner outlet duct from the vehicle.
3. Remove the heater inlet hose clamp from the elbow fitting.

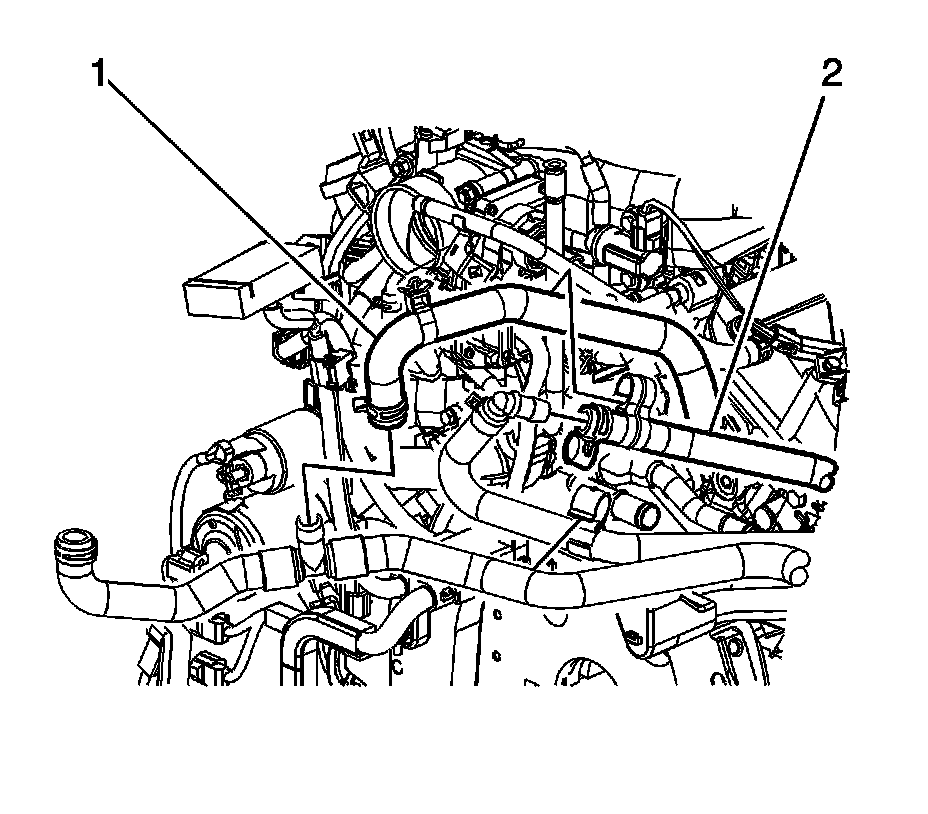

4. Remove the heater inlet hose (2) from the elbow fitting.




5. Remove the heater inlet hose clamp from the engine.

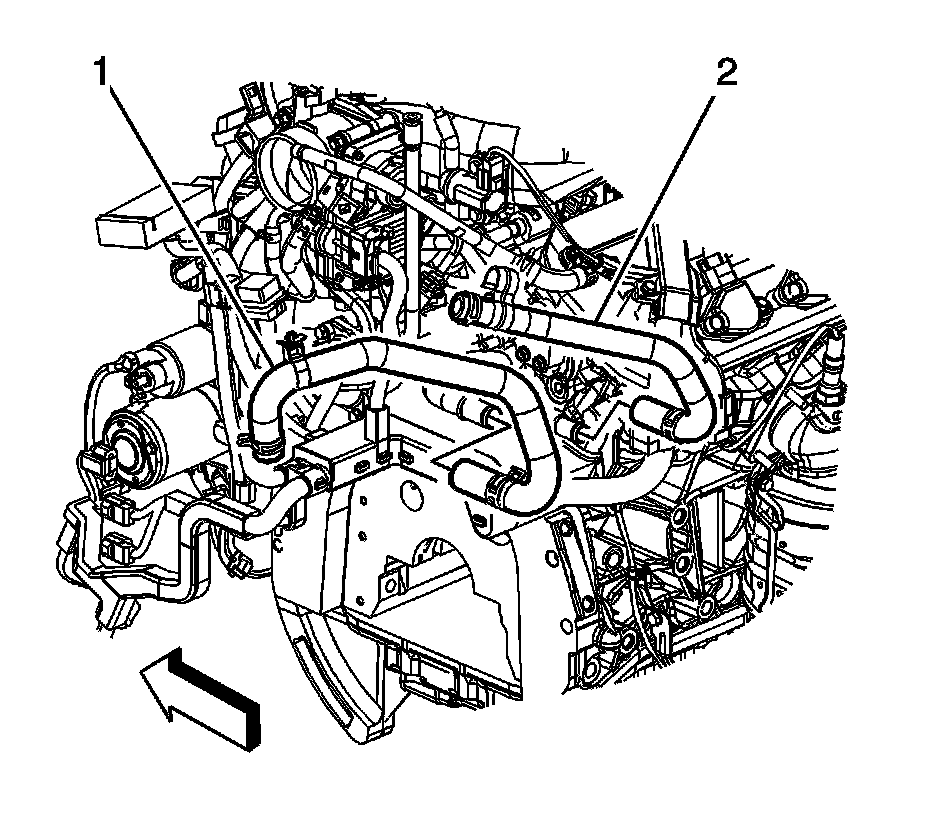

6. Remove the heater inlet hose (2) from the engine.

INSTALLATION PROCEDURE




1. Install the heater inlet hose (2) to the engine.
2. Install the heater inlet hose clamp to the engine.




3. Install the heater inlet hose (2) to the elbow fitting.
4. Install the heater inlet hose clamp to the elbow fitting.
5. Install the air cleaner outlet duct to the vehicle.
6. Fill the cooling system. Refer to Draining and Filling Cooling System (GE 47716 Fill) Draining and Filling Cooling System (Static Fill).
