Instrument Panel Vent - Upper Right

AIR OUTLET DUCT REPLACEMENT - INSTRUMENT PANEL (I/P) - UPPER RIGHT

REMOVAL PROCEDURE




1. Remove the instrument panel upper trim panel.

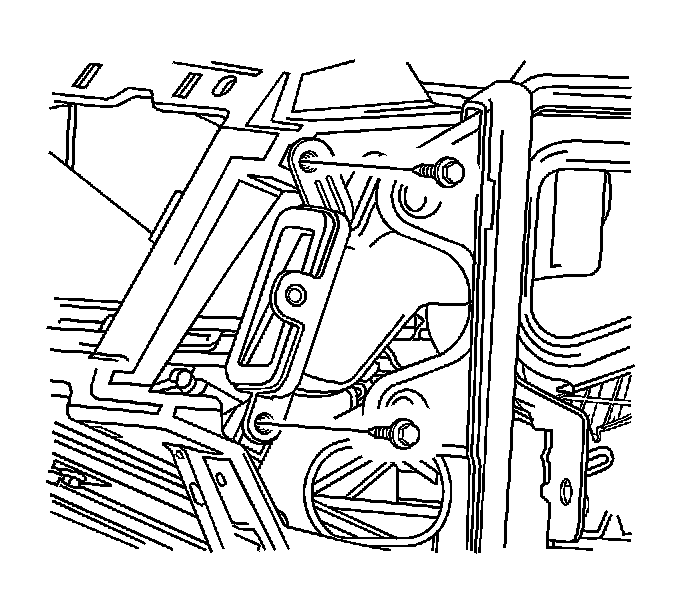

2. Remove the RH air outlet duct screws from the instrument panel retainer.

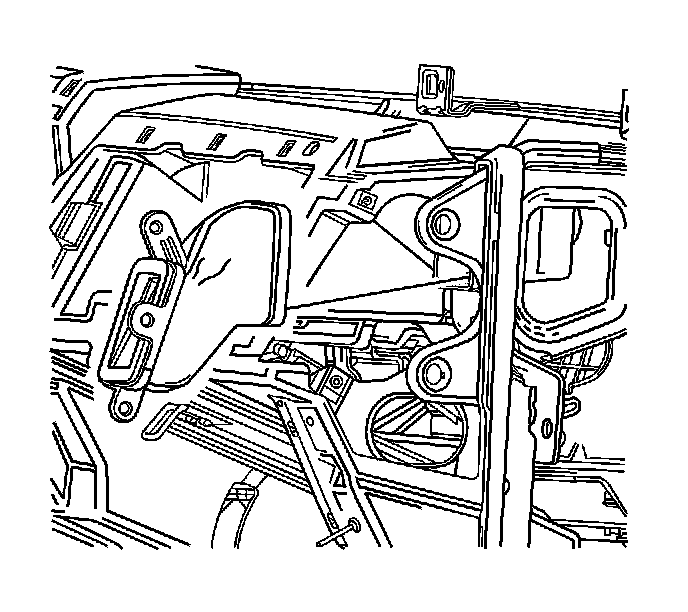

3. Remove the RH air outlet duct from the instrument panel retainer.

INSTALLATION PROCEDURE




1. Inspect the seals and replace if damaged using Kent Industries adhesive backed foam tape P/N 46485 (or equivalent).
2. Install the RH air outlet duct to the instrument panel retainer.




3. Install the RH air outlet duct screws to the instrument panel retainer.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 1 N.m (9 lb in).

4. Install the instrument panel upper trim panel.
