Saturn Truck
>>
2006
>>
VUE 2WD L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C300 - C399
>>
C313
C313

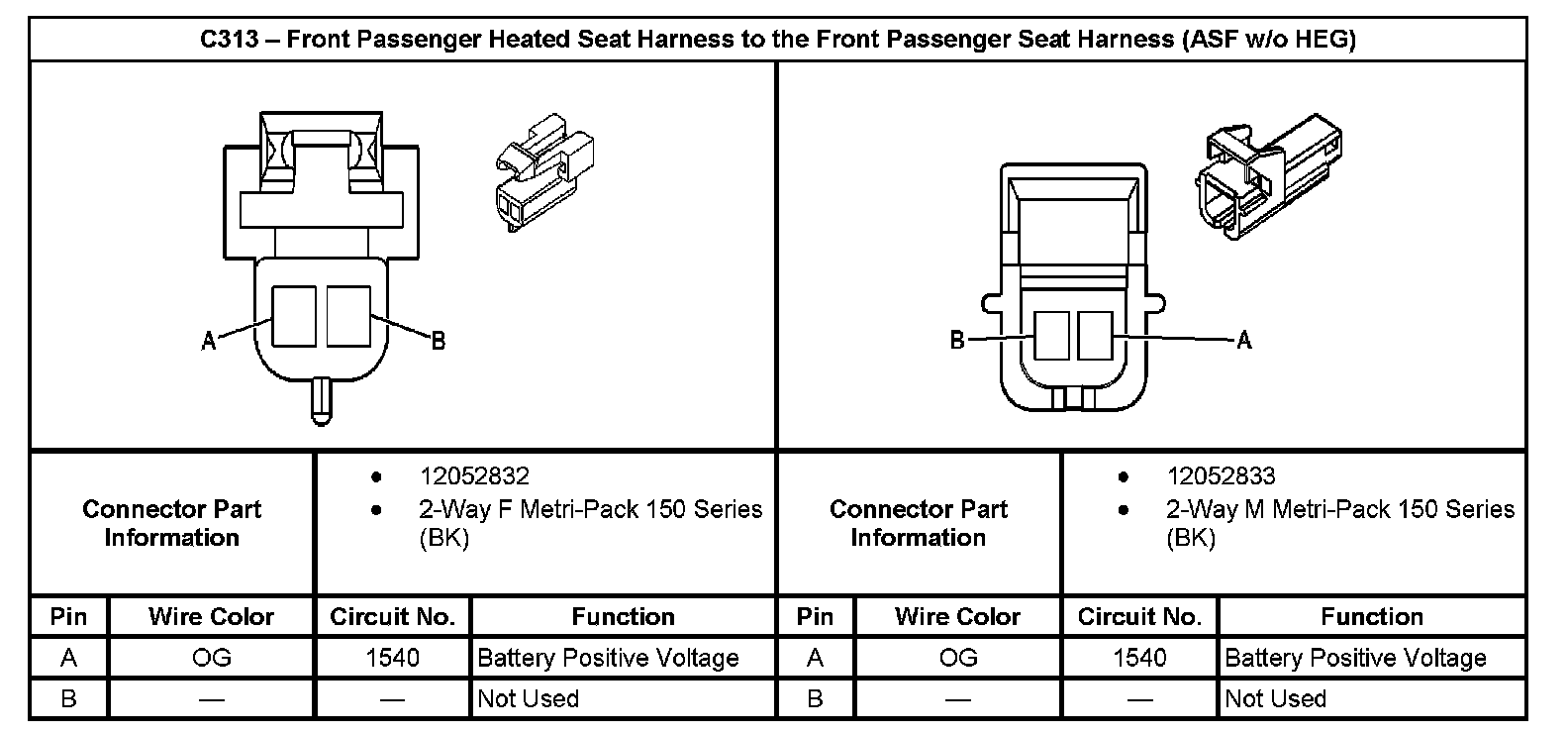

C313 - Front Passenger Heated Seat Harness To The Front Passenger Seat Harness (With RPO Code ASF Without RPO Code HEG):
