Home >> Saturn Truck >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C200 - C299 >> C203

C203

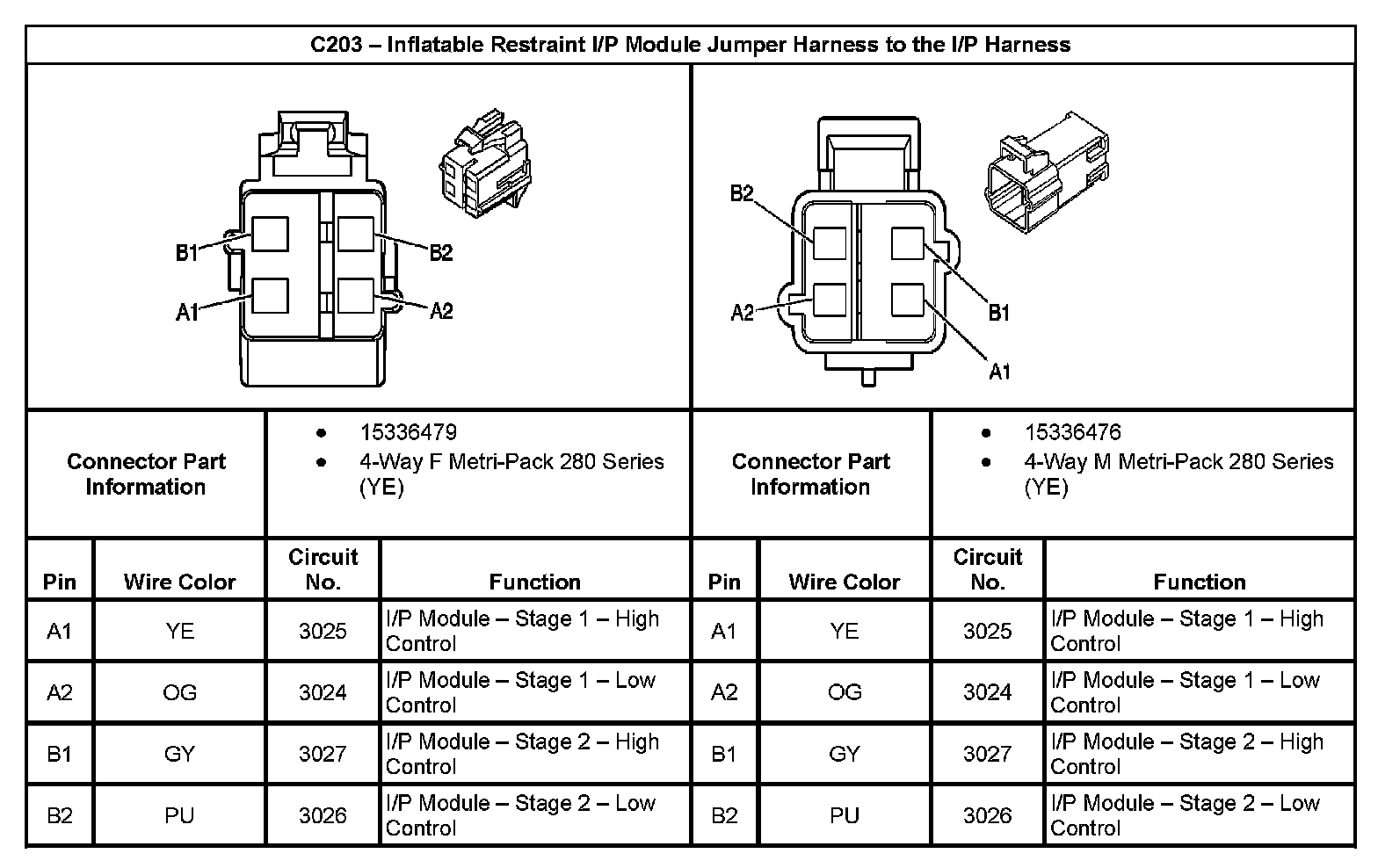

C203 - Inflatable Restraint I/P Module Jumper Harness To The I/P Harness:
