Saturn Truck
>>
2006
>>
VUE 2WD L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
>>
C202
C202

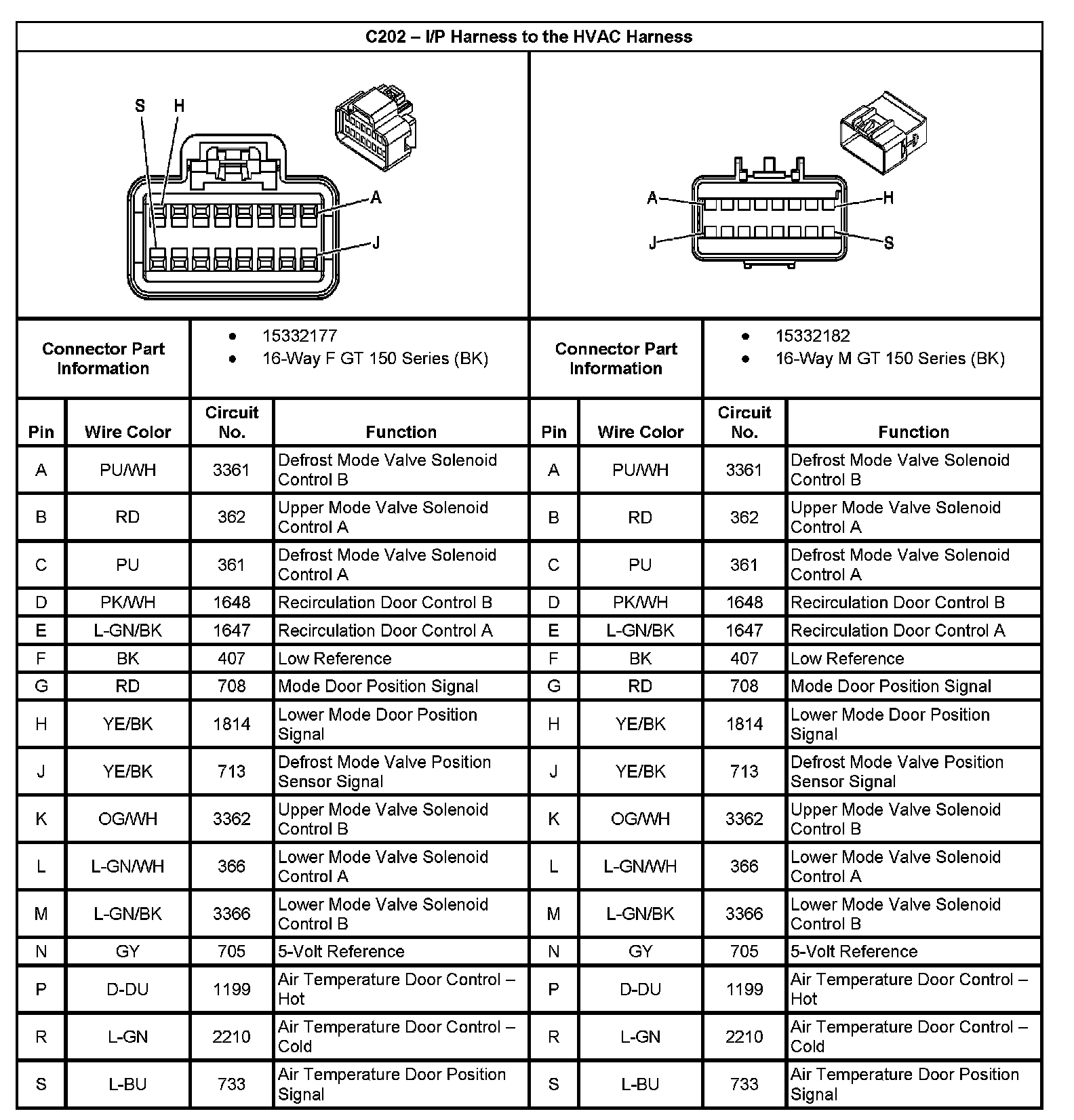

C202 - I/P Harness To The HVAC Harness:
