Saturn Truck
>>
2006
>>
VUE 2WD L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C104
C104

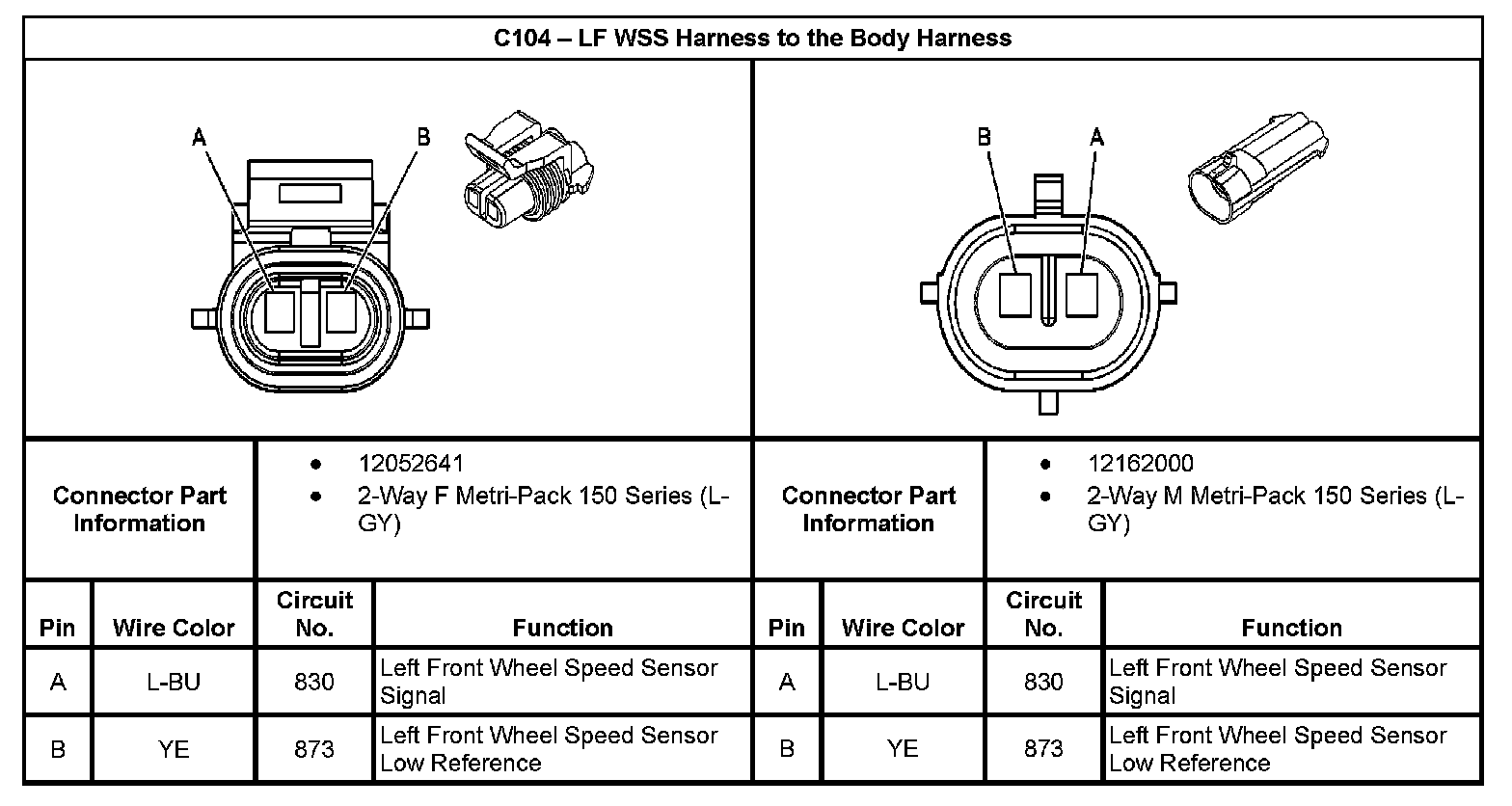

C104 - LF WSS Harness To The Body Harness:
