C102

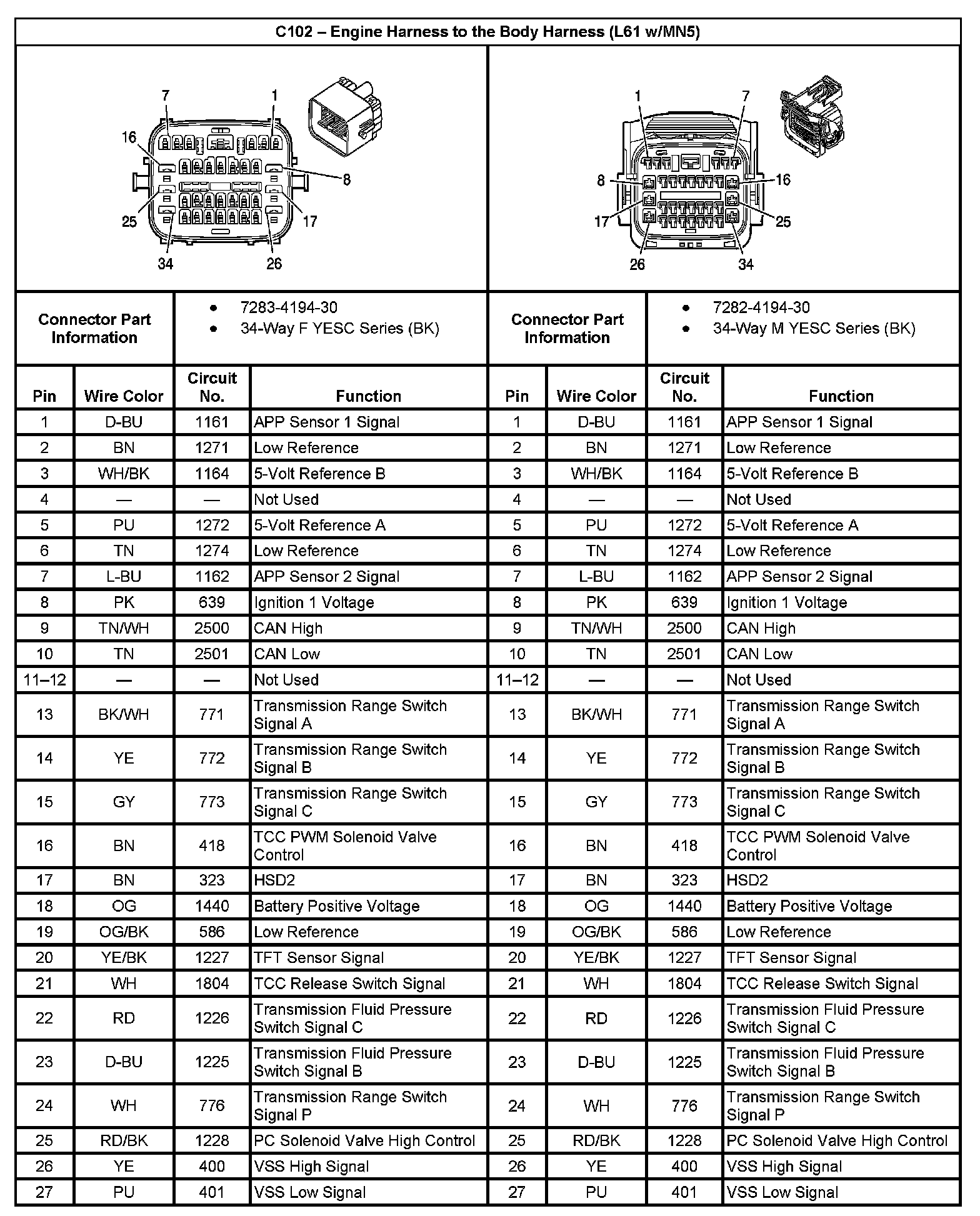

C102 - Engine Harness To The Body Harness (With RPO Code MN5) (Part 1):

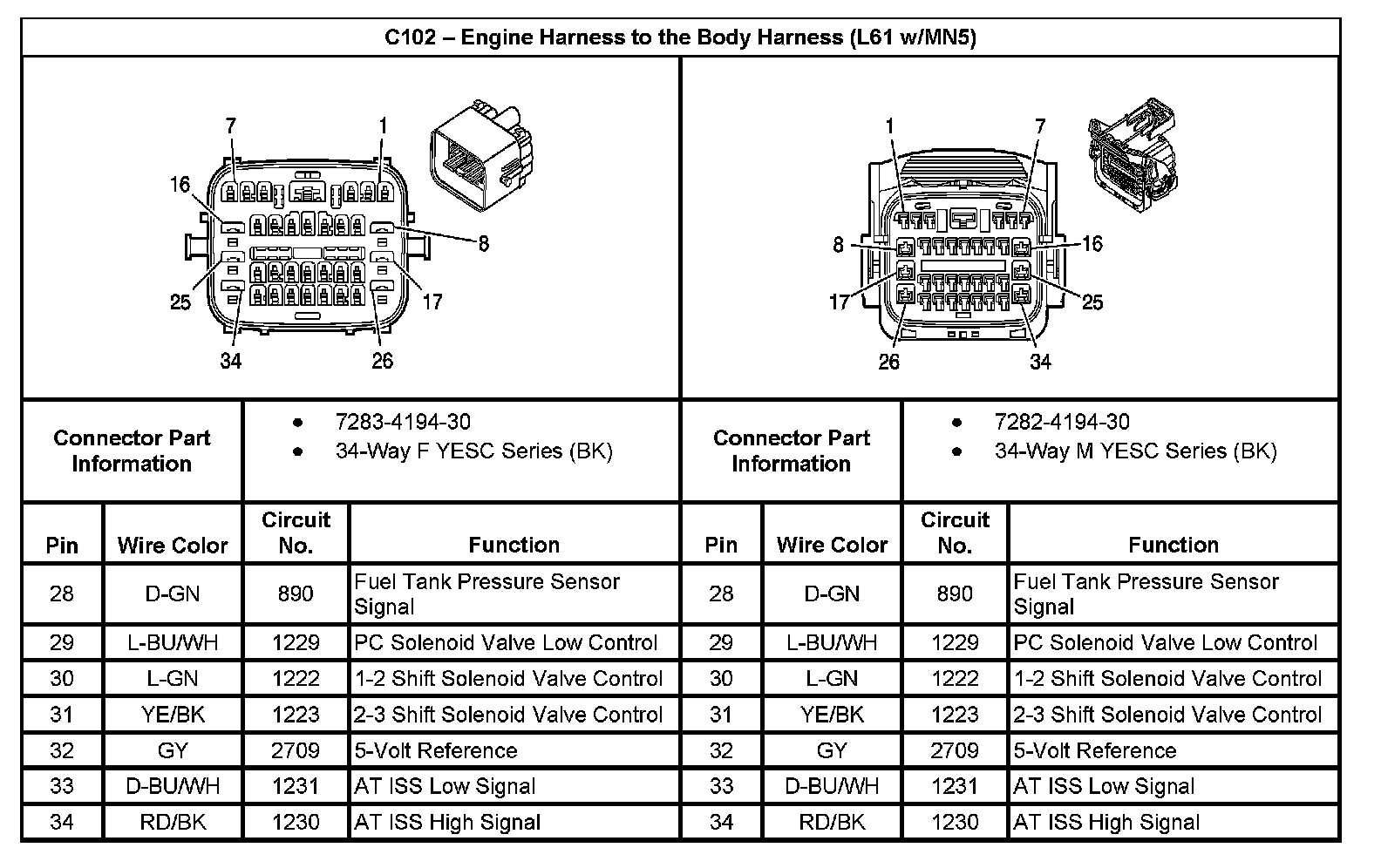

C102 - Engine Harness To The Body Harness (With RPO Code MN5) (Part 2):

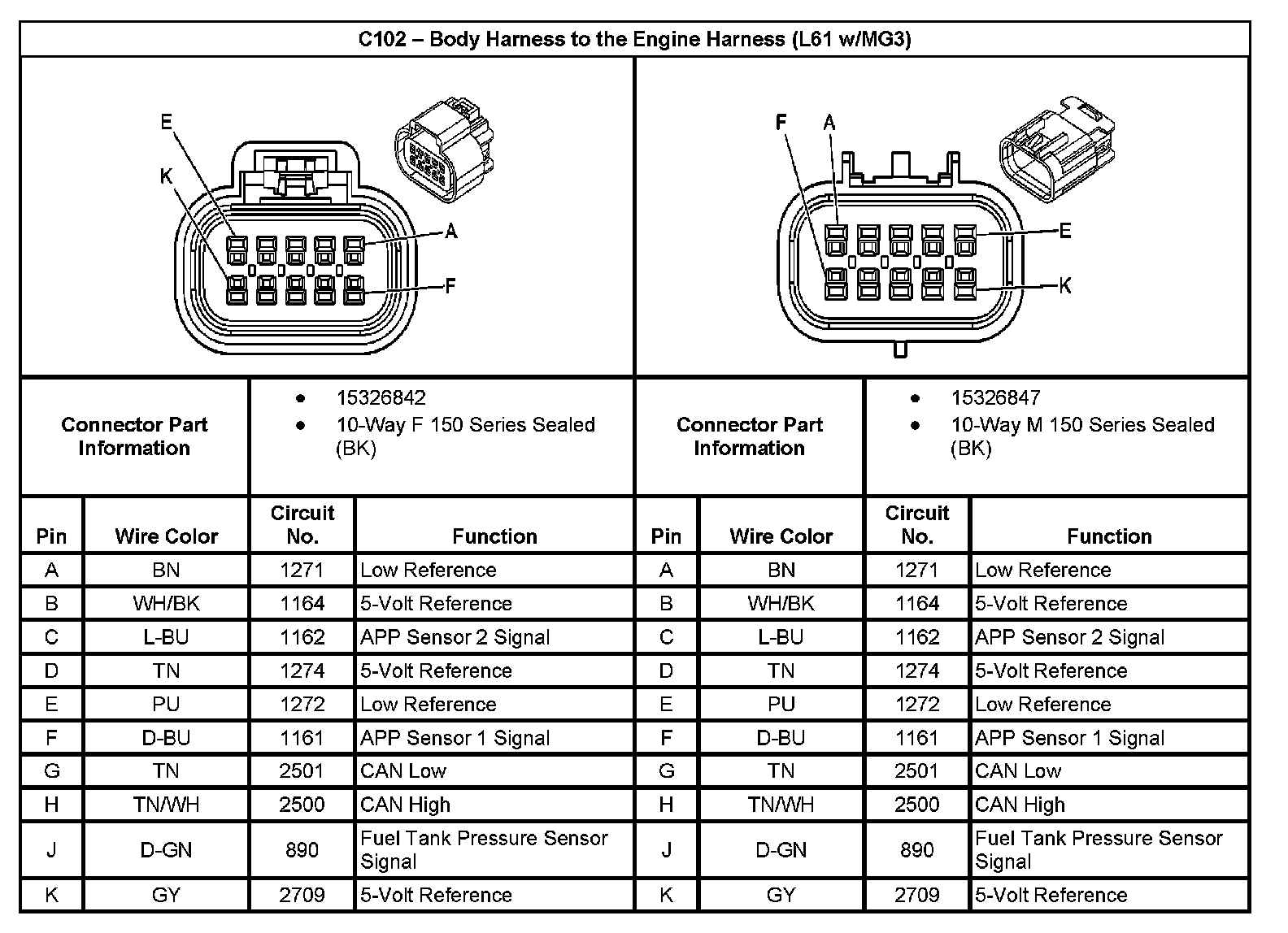

C102 - Body Harness To The Engine Harness (With RPO Code MG3):
