Saturn Truck
>>
2006
>>
VUE 2WD L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Clutch Control Solenoid Valve, A/T
>>
Clutch Pressure Control Solenoid Valve 2 Harness
Clutch Pressure Control Solenoid Valve 2 Harness

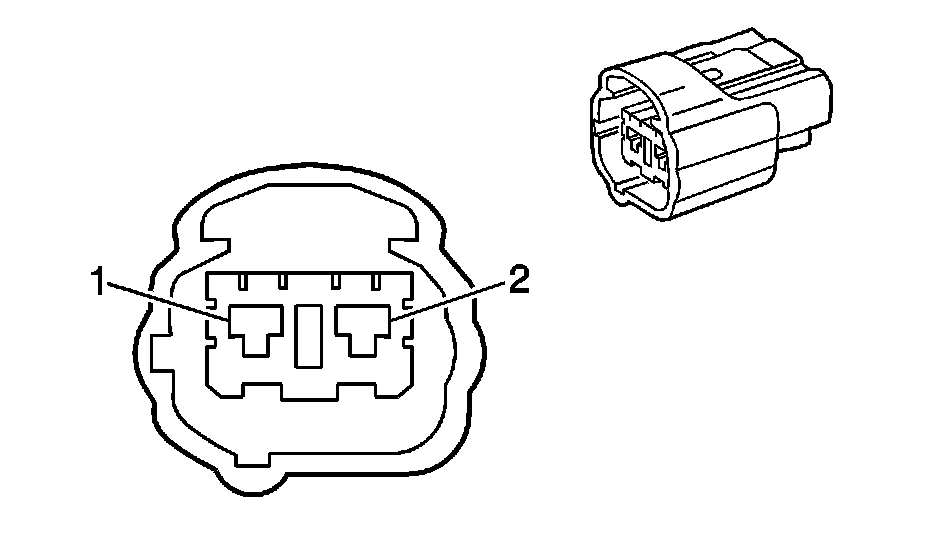

Automatic Transmission Related Connector End Views

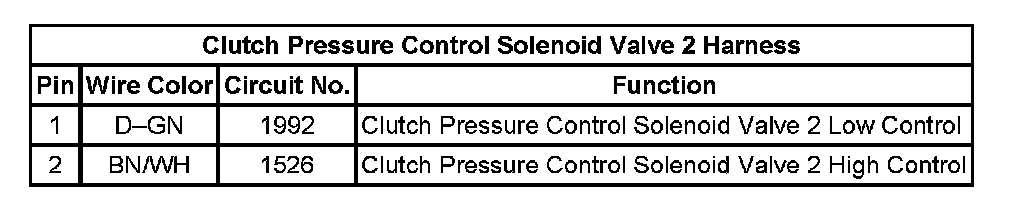

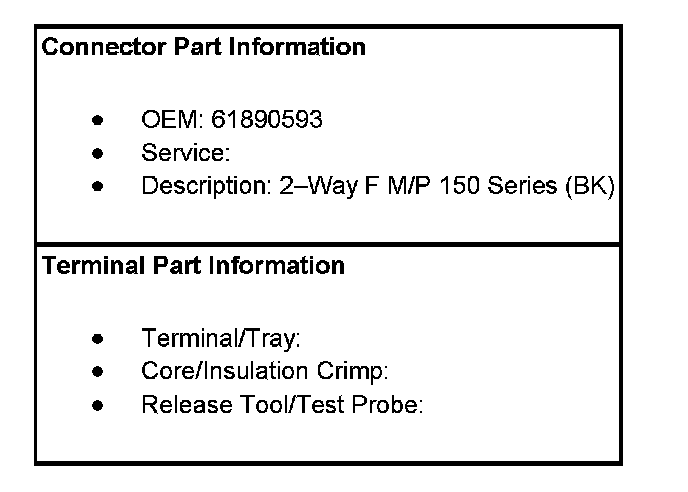

Clutch Pressure Control Solenoid Valve 2 Harness:
