Washer Nozzle Replacement - Rear

WASHER NOZZLE REPLACEMENT - REAR

REMOVAL PROCEDURE

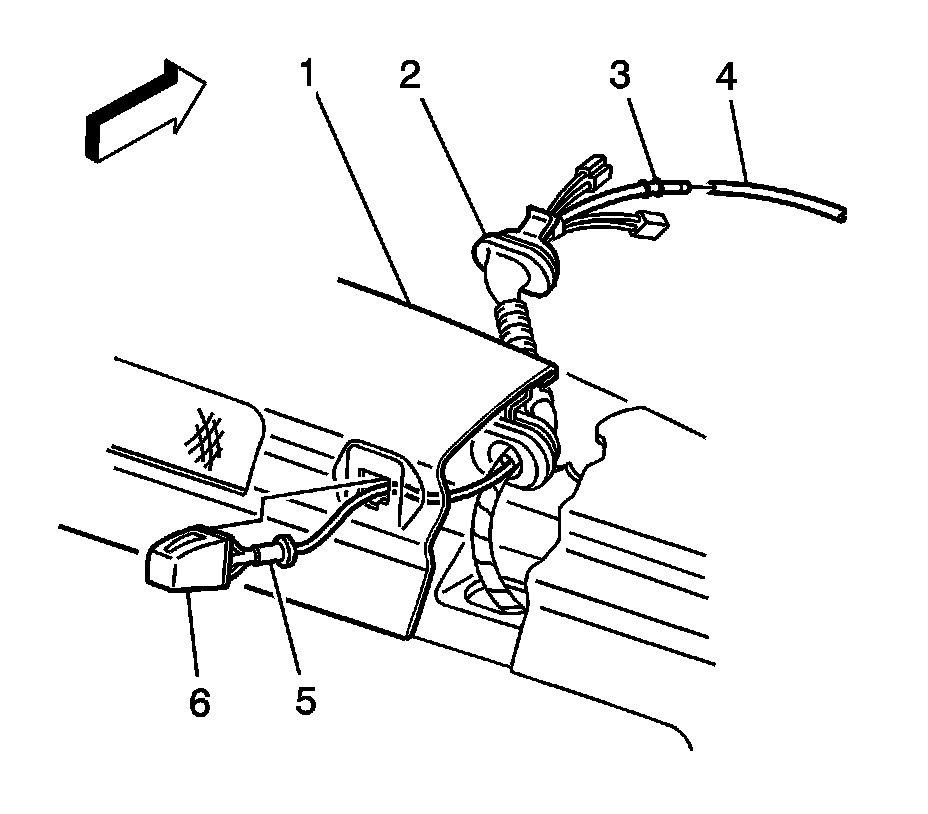

1. Using a small flat-bladed tool, push in both sides to release fingers while pulling outwards on nozzle (6).

IMPORTANT: Protect the painted surface of the liftgate prior to removing the washer nozzle.

2. Remove the rear washer nozzle (6) from the rear washer hose connection (5).

INSTALLATION PROCEDURE




1. Install the washer nozzle (6) to the rear washer hose connection (5).
2. Position the rear washer nozzle (6) to the liftgate opening, pressing in until fully seated.
