Oil Pump Replacement

Oil Pump Replacement

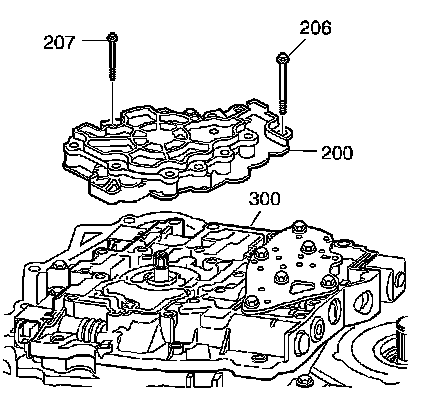

Removal Procedure
1. Remove the case side cover.





2. Notice:
Do NOT remove the three bolts which hold the pump together.

Remove the oil pump bolts (205-207).





3. Remove the oil pump (200) from the valve body (300).
4. Clean and inspect the oil pump.

Installation Procedure





1. Install the oil pump (200) to valve body (300).





2. Notice:
Refer to Fastener Notice in Service Precautions.

Install the oil pump bolts (205-207).
^ Tighten the M6 X 1.0 X 20 bolt to 8 Nm (70 inch lbs.).
^ Tighten the M6 X 1.0 X 85 bolt to 12 Nm (106 inch lbs.).
^ Tighten the M6 X 1.0 X 95 bolt to 16 Nm (11 ft. lbs.).
3. Install the case side cover.
