Transmission Pressure Test Port: Service and Repair

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure
1. Remove the throttle body air inlet duct.

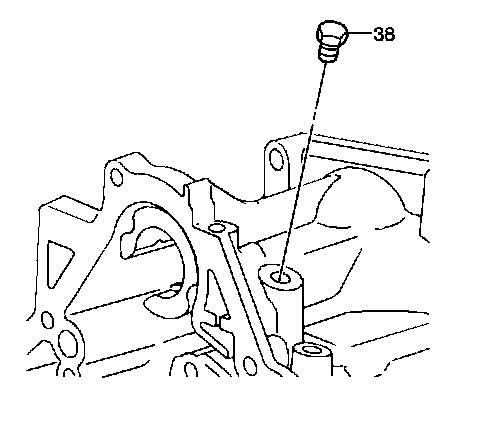

2. Remove the pressure test hole plug (38).

Installation Procedure





1. Notice:
Refer to Fastener Notice in Service Precautions.

Install the pressure test hole plug (38).

Tighten the plug (38) to 12 Nm (106 inch lbs.).

2. Install the throttle body air inlet duct.
