1. Torque Converter Assembly Removal

Torque Converter Assembly Removal

Caution:
The torque converter weighs approximately 65 lbs. Personal injury may result if you lift the torque converter improperly.

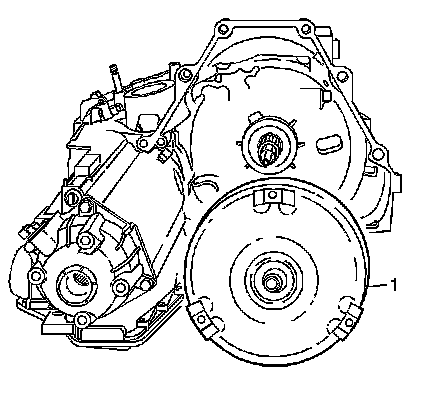

1. Remove the torque converter assembly (1).

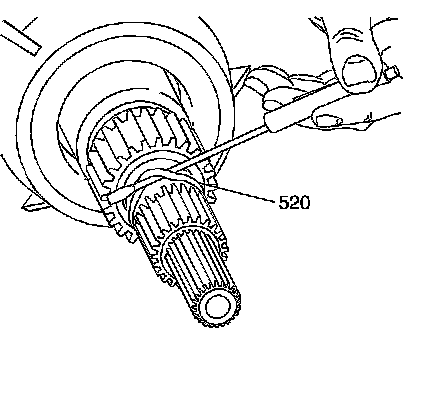

2. Remove the turbine shaft O-ring seal (520).
