Saturn Truck
>>
2006
>>
RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
Vehicle Speed Sensor: Diagrams

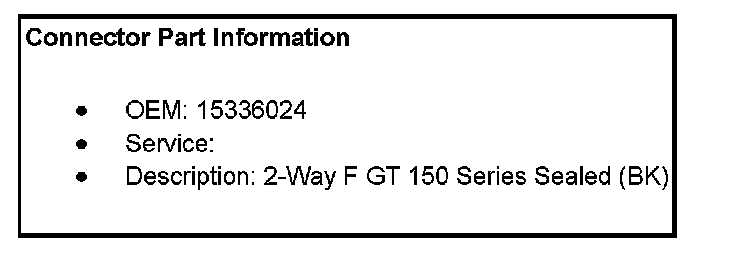

Automatic Transmission Related Connector End Views

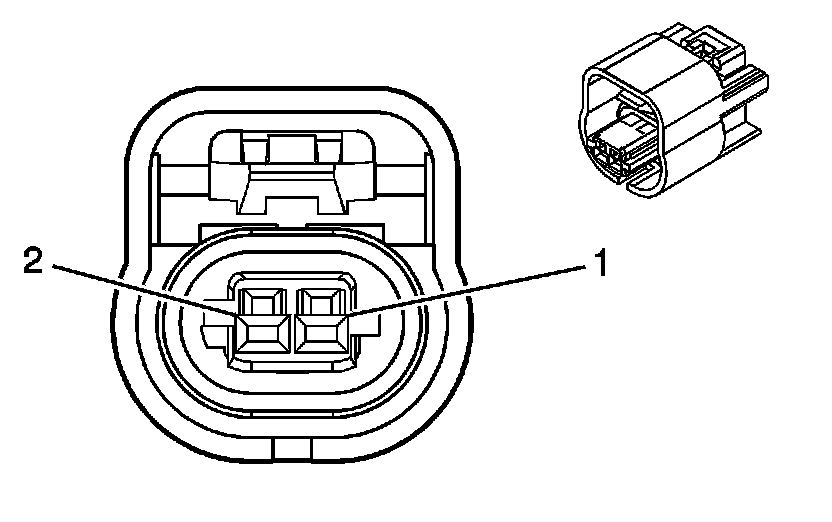

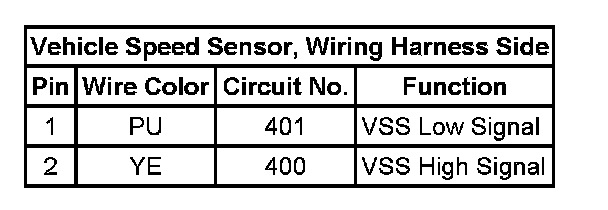

Vehicle Speed Sensor, Wiring Harness Side:
