Power Outlet Receptacle Inoperative

POWER OUTLET RECEPTACLE INOPERATIVE (120 AC VOLTS)

DIAGNOSTIC AIDS
For intermittent diagnosis, refer to Diagnostic Aids for Circuit Testing and Wiring Repair Procedures. Component Tests and General Diagnostics

TEST DESCRIPTION

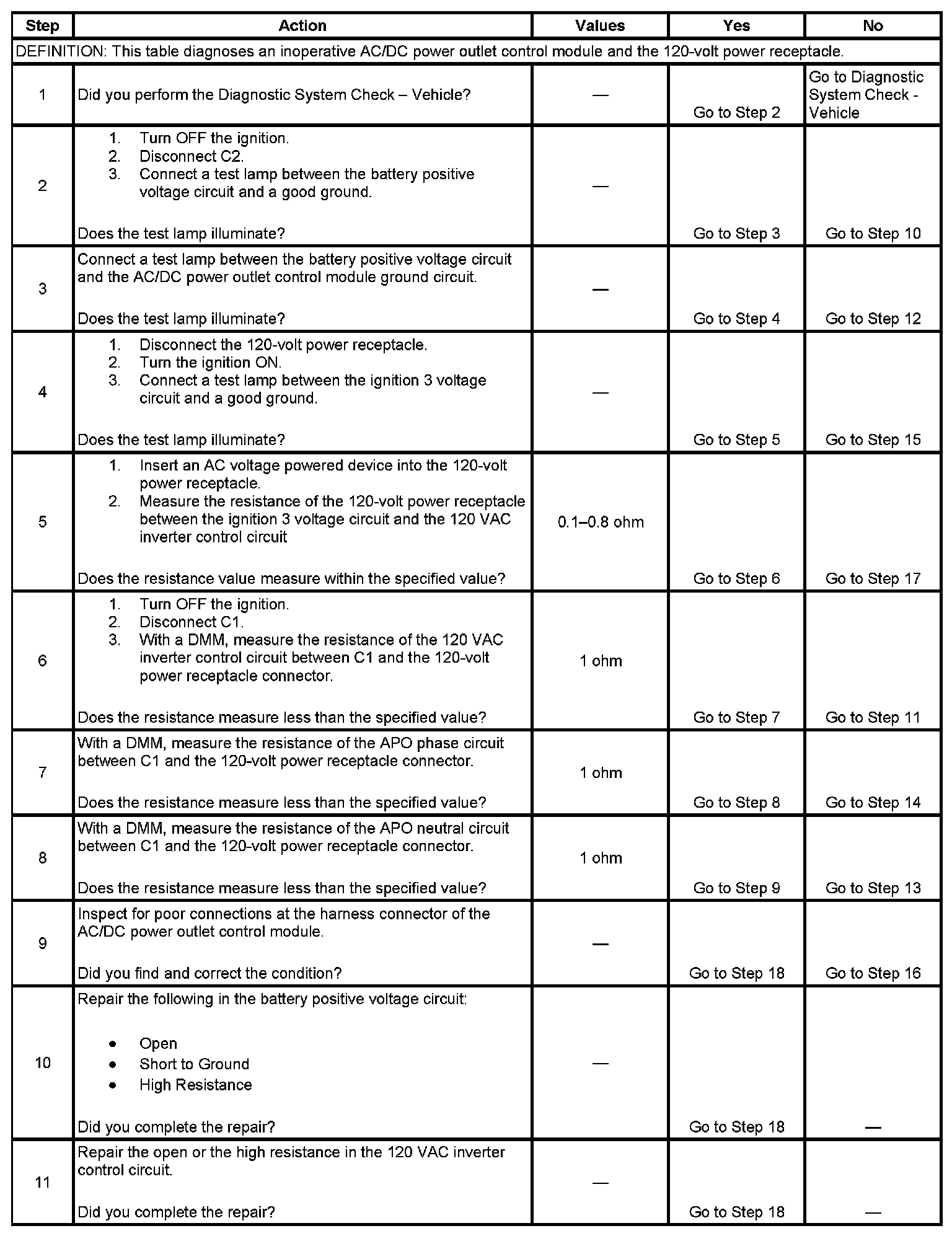

Step 1 - Step 11:

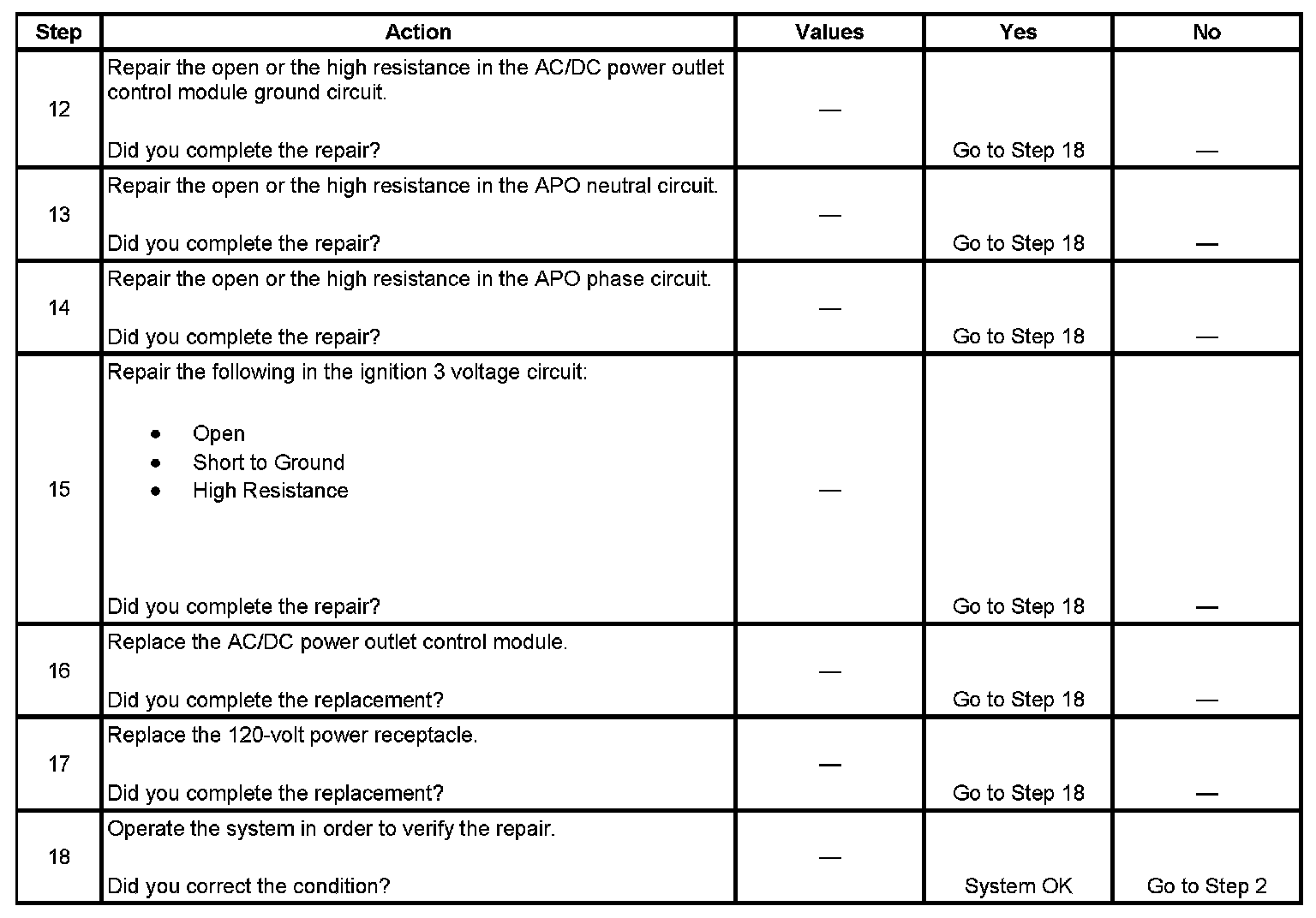

Step 12 - Step 16:

The number below refers to the step number on the diagnostic path.
5. This step tests the plug inserted switch, located internally in the 120-volt power receptacle, for an open.
