Parking Assist Warning Indicator: Service and Repair

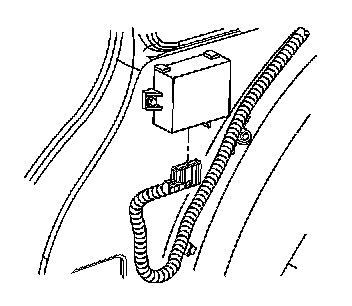

OBJECT ALARM MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the right rear compartment side trim.
2. Disconnect the electrical connector from the rear object detection module.
3. Remove the mounting bolts from the rear object detection module.
4. Remove the rear object detection module from the vehicle.

INSTALLATION PROCEDURE




1. Align the rear object detection module to the vehicle.
2. Install the rear object detection module mounting bolts.

NOTE: Refer to Fastener Notice

Tighten the bolts to 10 N.m (89 lb in).

3. Install the electrical connector to the rear object detection module and press in the locking tab.
4. Install the rear compartment side trim.
5. Refer to Control Module References for programming and setup information. Programming and Relearning
