Center Vent

AIR OUTLET REPLACEMENT - CENTER

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) assembly.

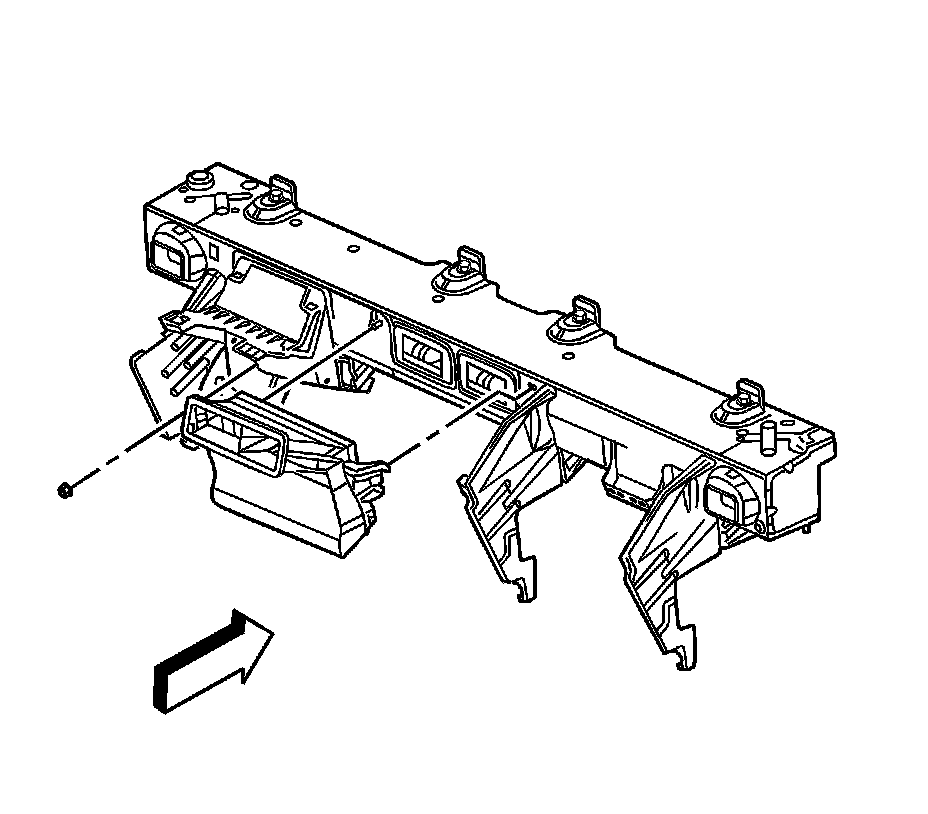

2. Remove the center air distribution duct nuts.
3. Remove the center air distribution duct from the crosscar beam.

INSTALLATION PROCEDURE




1. Position the center air distribution duct to the crosscar beam.
2. Install the center air distribution duct nuts.

Tighten the nuts to 10 N.m (89 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the I/P assembly.
