Air Distribution Duct - Lower Auxiliary

AIR DISTRIBUTION DUCT REPLACEMENT - LOWER AUXILIARY

REMOVAL PROCEDURE




1. Remove the left side rear quarter trim panel.

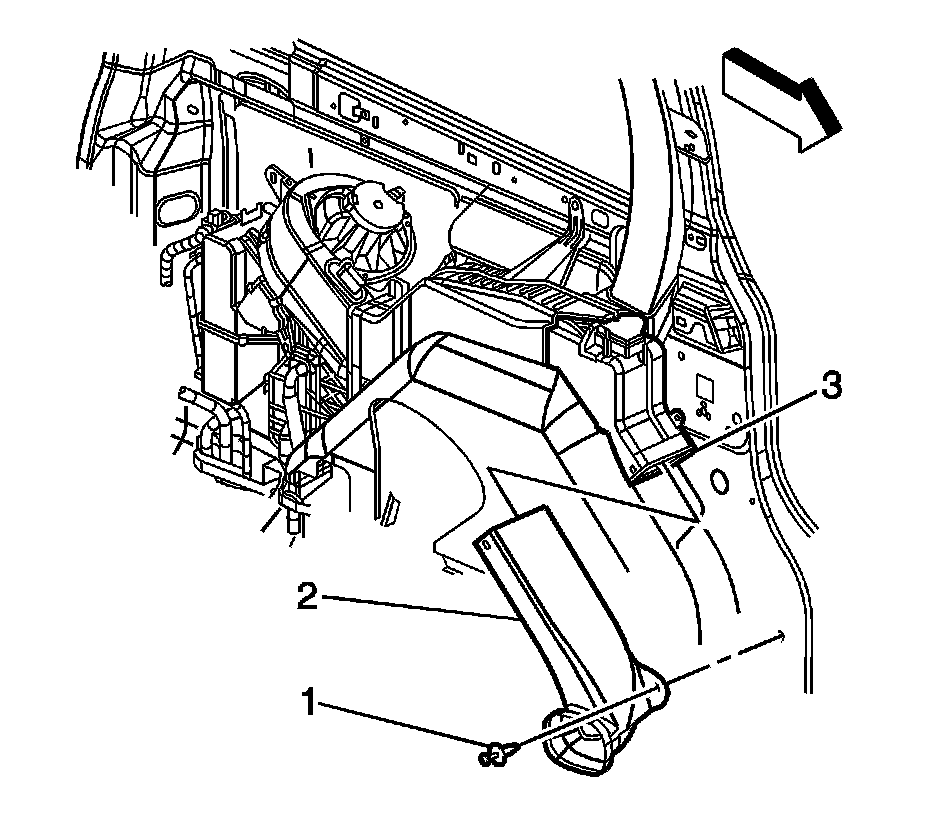

2. Remove the rear (auxiliary) A/C outlet lower duct bolt (1).
3. Remove the A/C outlet lower duct (2).

INSTALLATION PROCEDURE




1. Install the A/C outlet lower duct (2).
2. Install the rear (auxiliary) A/C outlet lower duct bolt (1).

NOTE: Refer to Fastener Notice.

Tighten the bolts to 10 N.m (89 lb in).

3. Install the left side rear quarter trim panel.
