100. Crankshaft Balancer Installation

Crankshaft Balancer Installation

Tools Required
^ J 29113 Balancer and Crank Sprocket Puller
^ J 45059 (SA 9140E) Angle Meter





1. Apply sealer P/N 12378521 or the equivalent to the keyway of the crankshaft balancer.
2. Place the crankshaft balancer into position over the key in the crankshaft.

3. Notice:
Do NOT use a power-assisted tool with the special tool in order to remove or install this component. You cannot properly control the alignment of this component using a power-assisted tool, and this can damage the component.

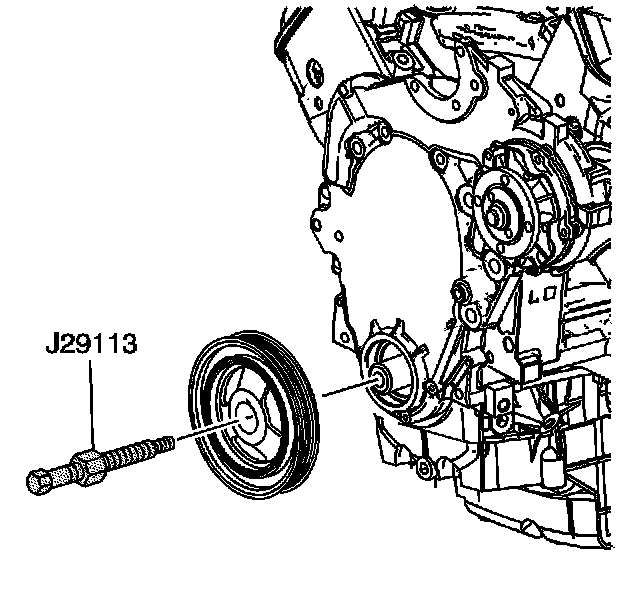

Install the J 29113 onto the crankshaft.
4. Rotate the hex nut on the J 29113 to install the crankshaft balancer onto the crankshaft.
5. Remove the J 29113 from the crankshaft.





6. Notice:
Refer to Fastener Notice in Service Precautions.

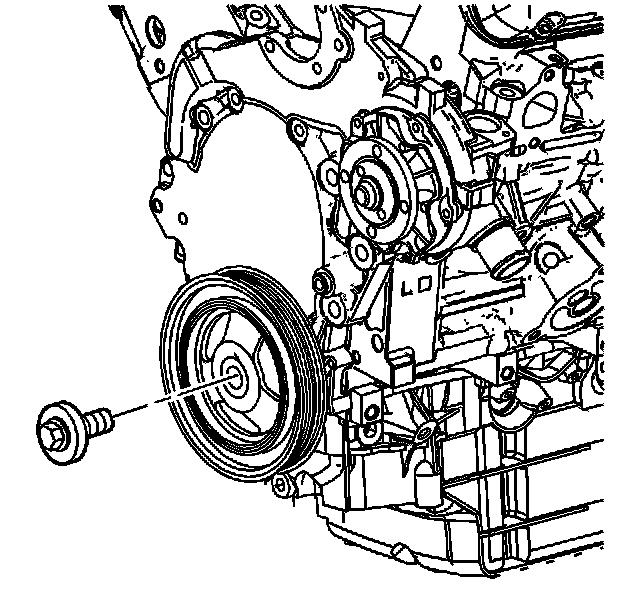

Install the crankshaft balancer washer and bolt.
Tighten the crankshaft balancer bolt a first pass to 160 Nm (118 ft. lbs.).
