Suspension Control ( Automatic - Electronic )

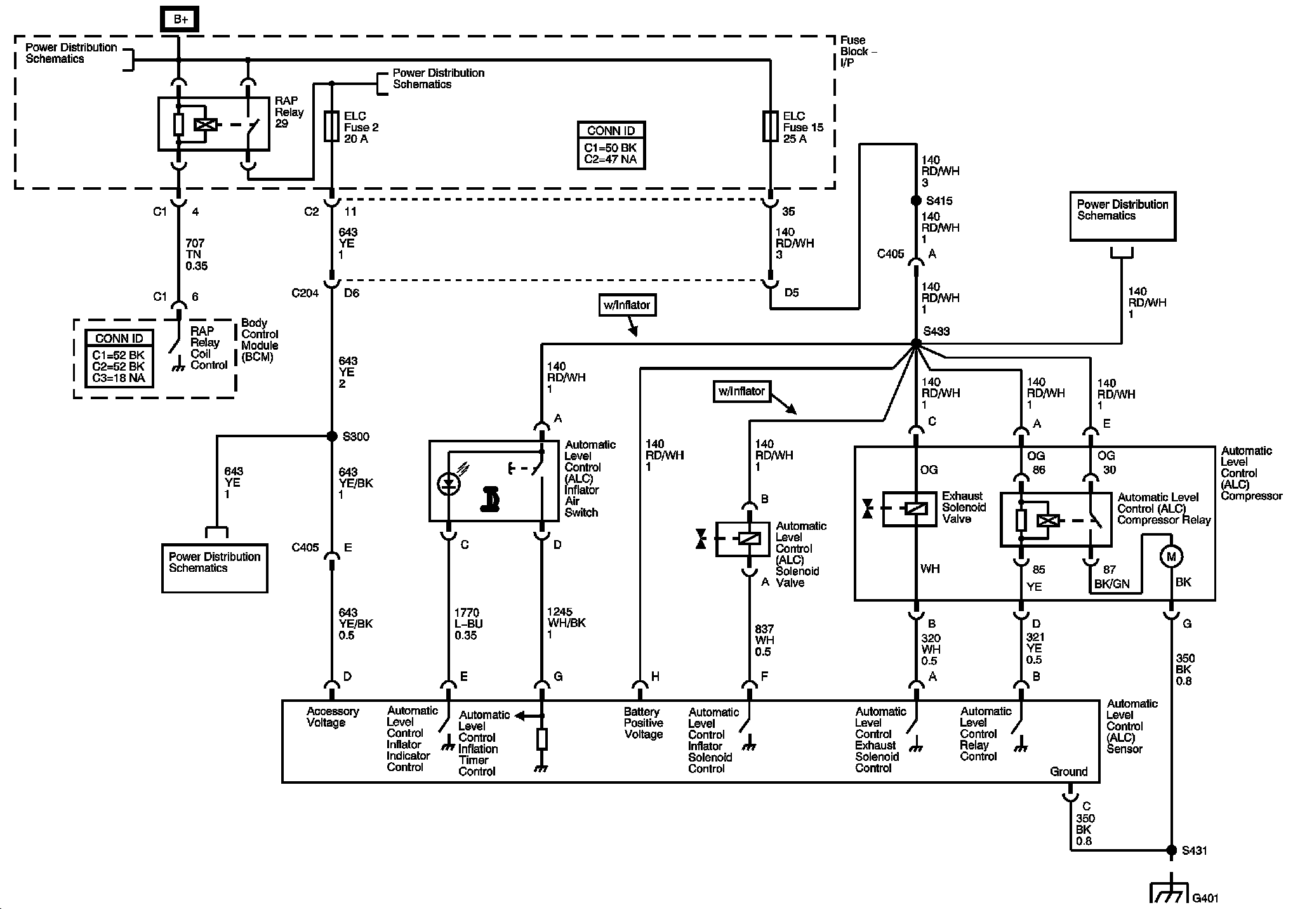

Automatic Level Control Diagrams

Automatic Level Control Diagrams:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
