Video System Diagrams (With RPO Code UMS)

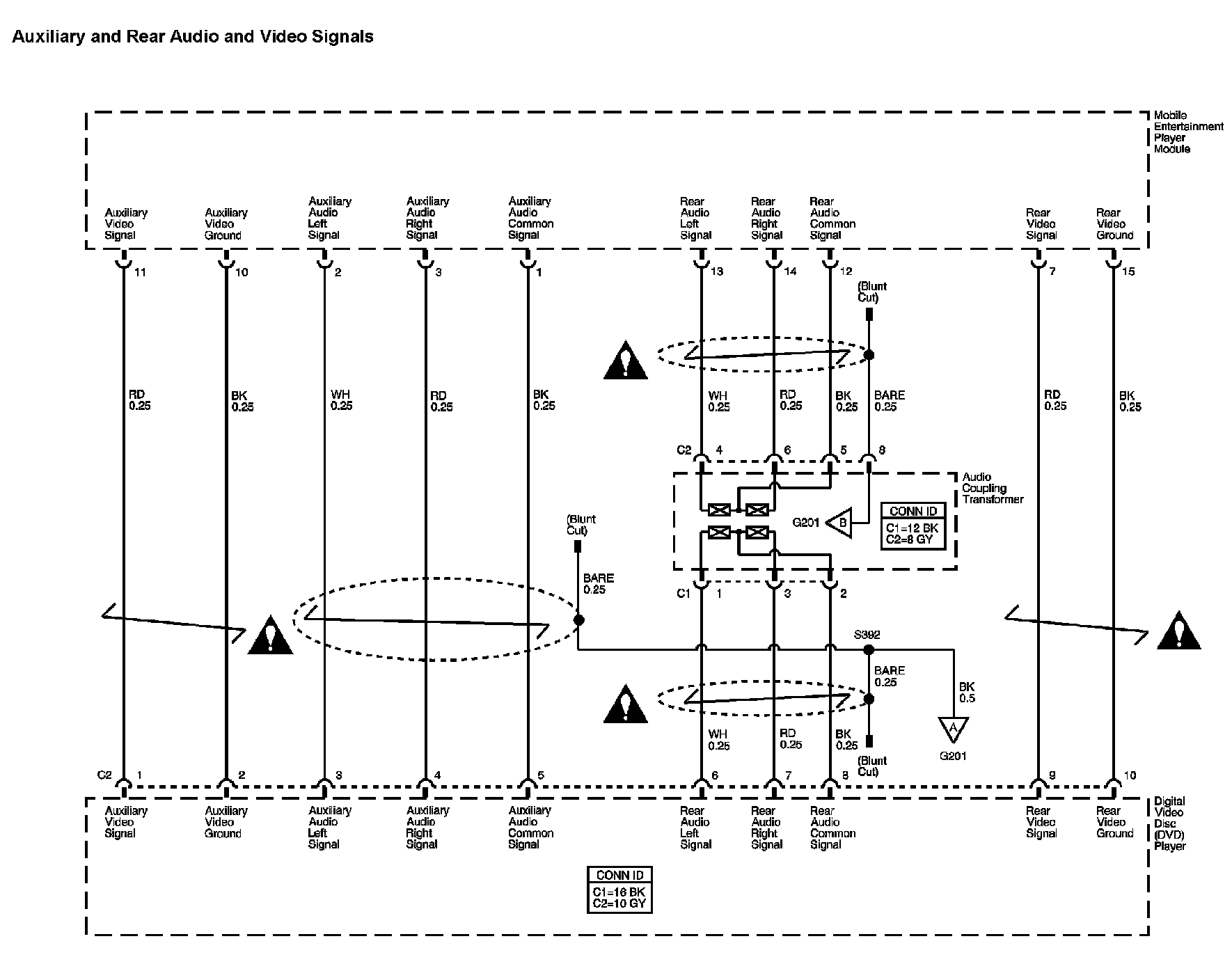

Video System Diagram 1 (With RPO Code UMS):

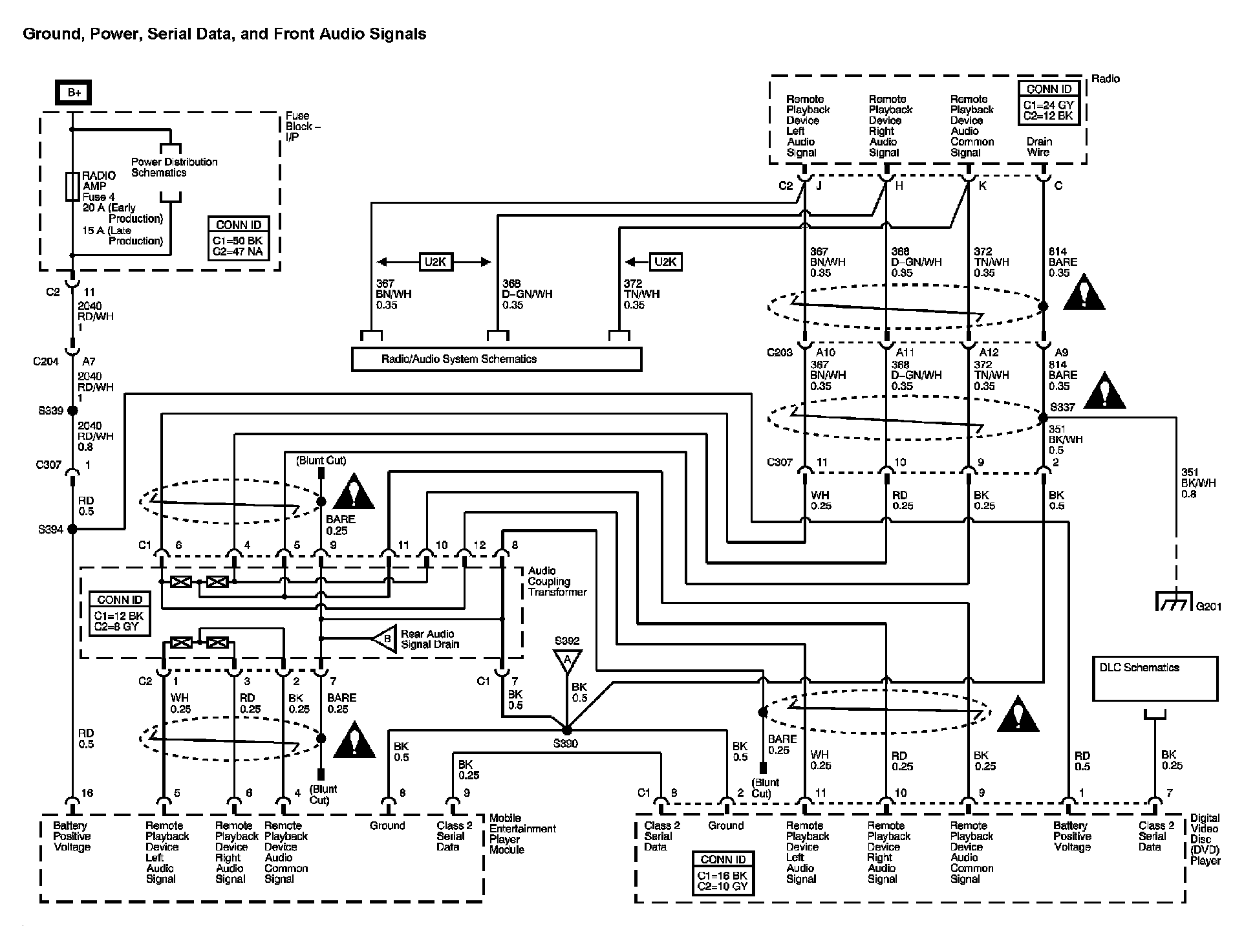

Video System Diagram 2 (With RPO Code UMS):

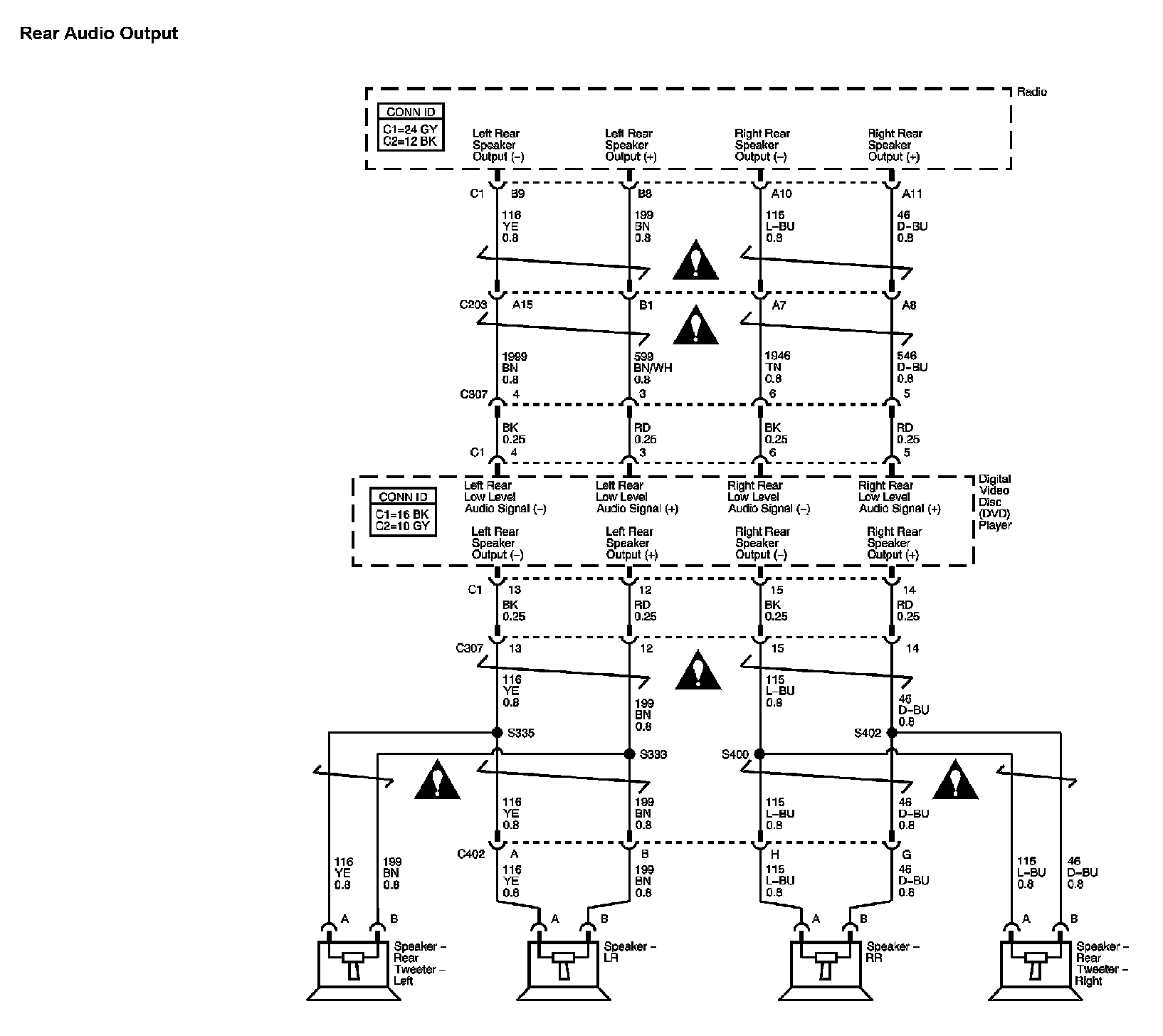

Video System Diagram 3 (With RPO Code UMS):

Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
