Saturn Truck
>>
2006
>>
RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sliding Door Electrical Contact
Sliding Door Electrical Contact

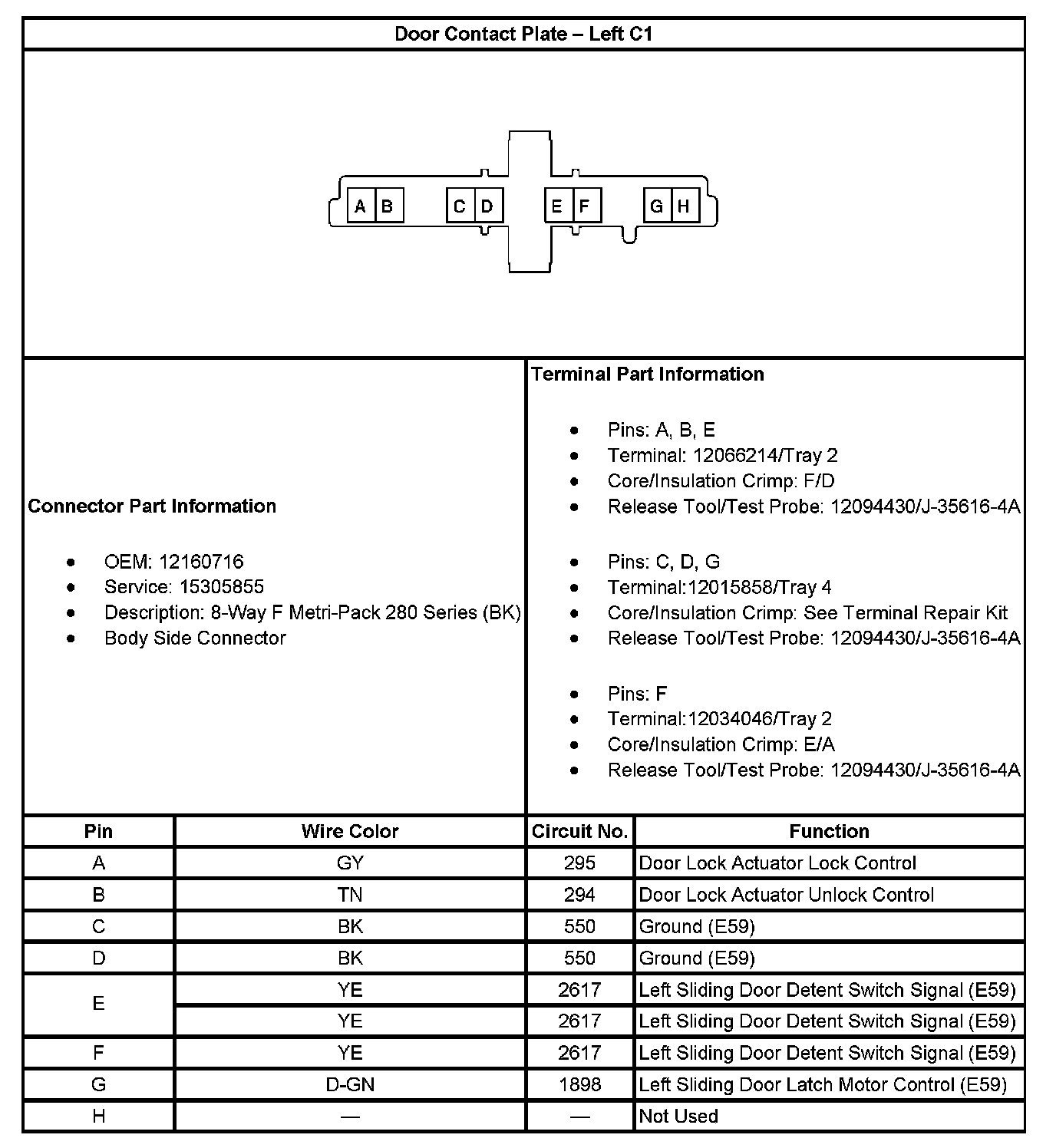

Door Contact Plate - Left C1:

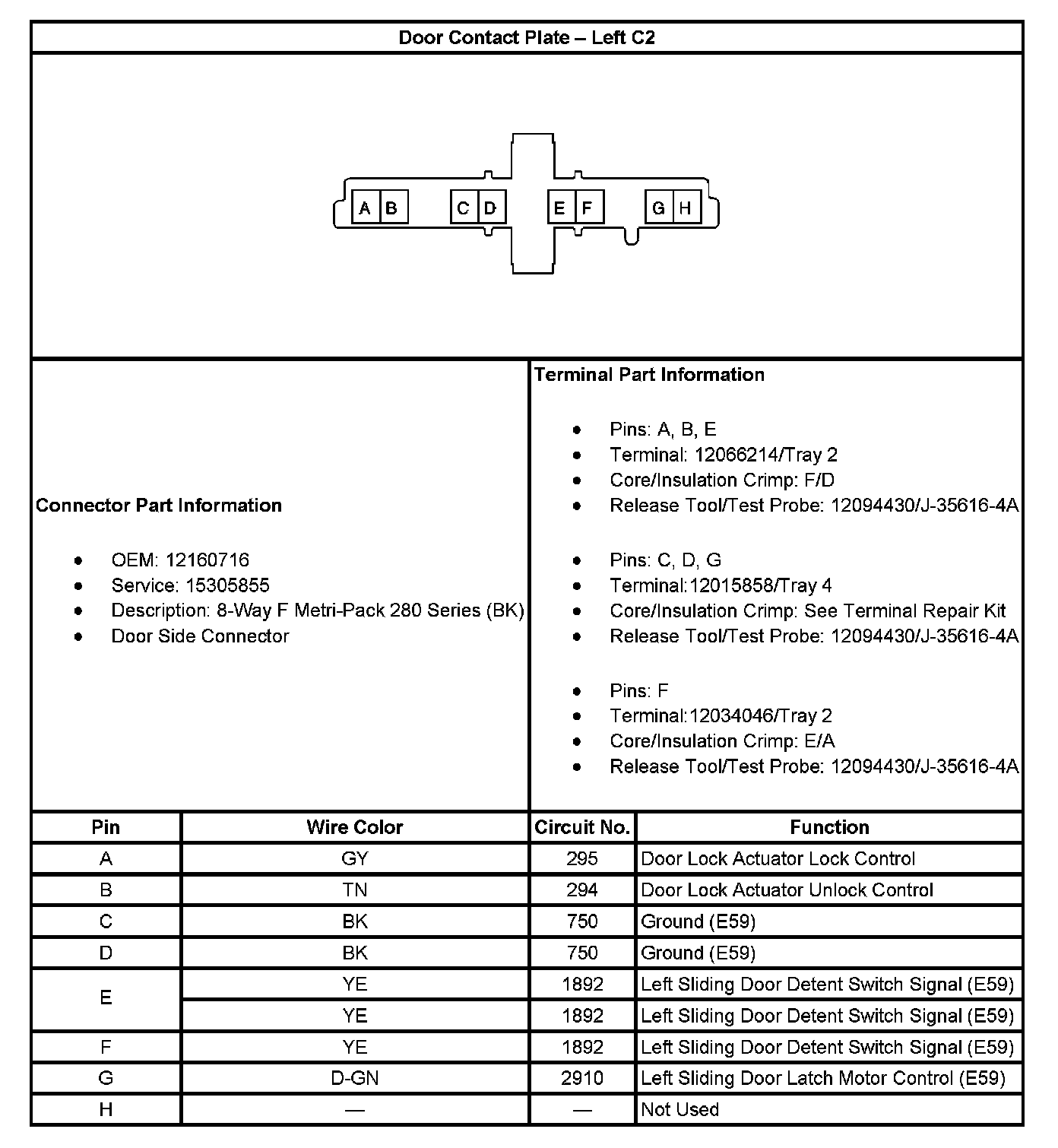

Door Contact Plate - Left C2:

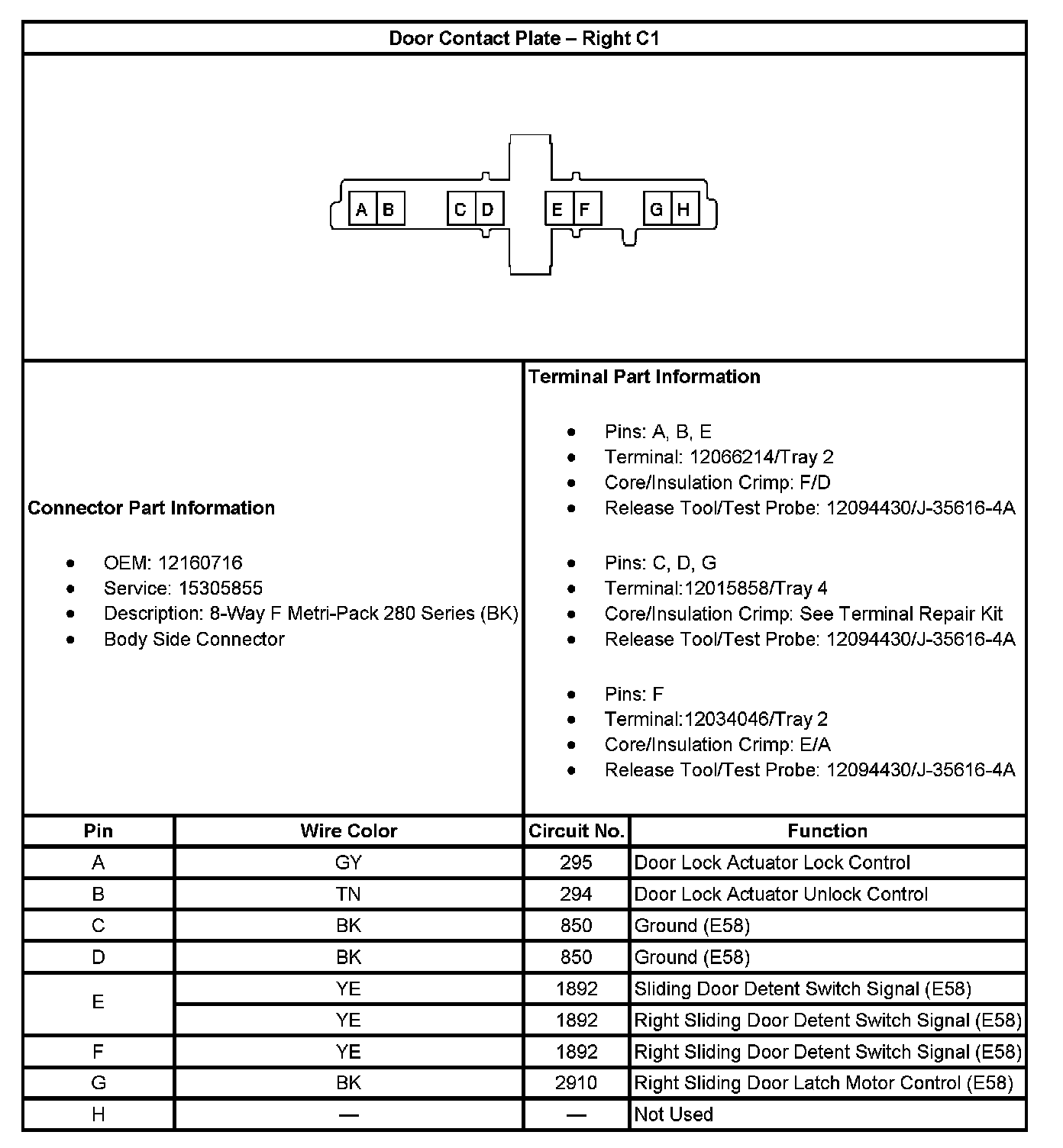

Door Contact Plate - Right C1:

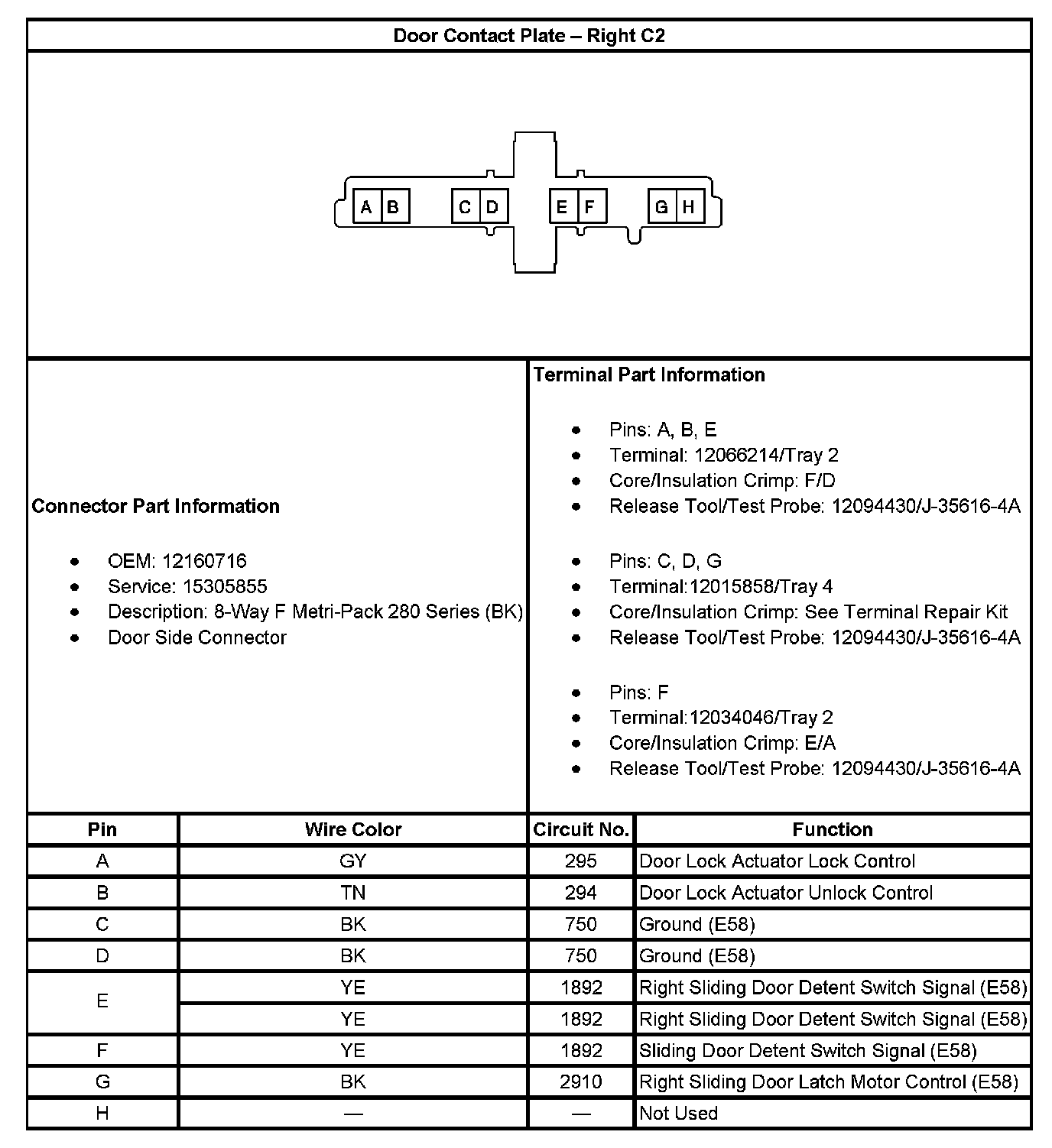

Door Contact Plate - Right C2:
