Saturn Truck
>>
2006
>>
RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
>>
C402
C402

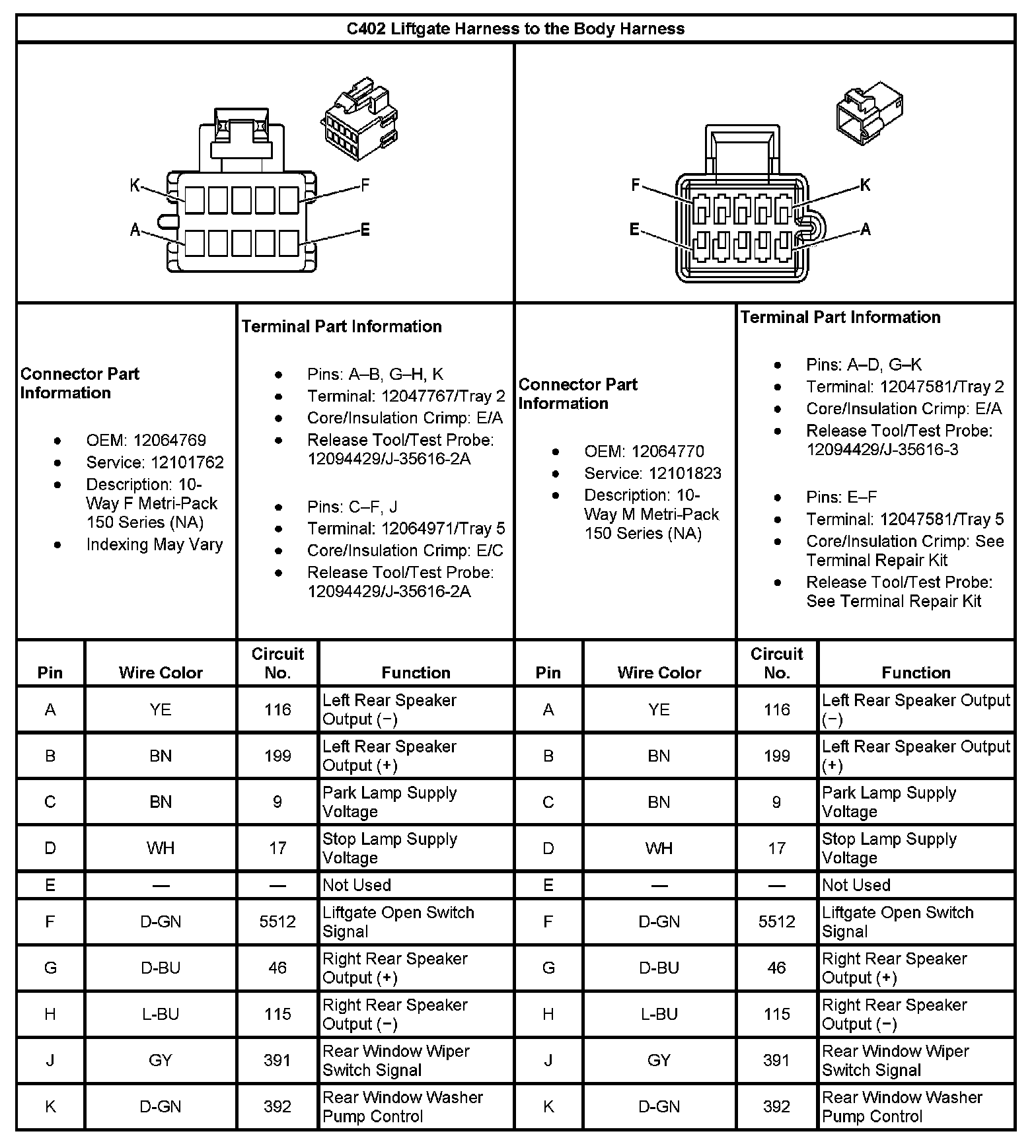

C402 Liftgate Harness To The Body Harness:
